GE Fanuc IC200MDD844 Mixed I/O for VersaMax

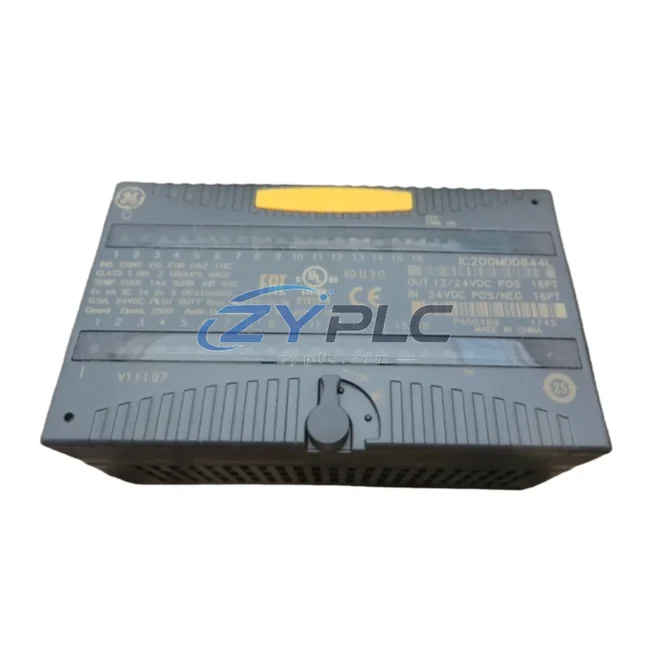

GE Fanuc IC200MDD844: Mixed I/O for VersaMax

In modern industrial automation, the performance of a control system is never determined by a single component — it is defined by the coherence of the entire architecture. The GE Fanuc IC200MDD844 Mixed I/O Module is engineered precisely for this reality. Designed as a native element of the GE VersaMax PLC platform, the IC200MDD844 delivers tightly integrated discrete I/O capability that supports the full signal chain from field device to controller, enabling engineers to build scalable, maintainable, and redundancy-ready automation systems across demanding industrial environments.

The IC200MDD844 combines digital inputs and digital outputs within a single compact module footprint, reducing panel space requirements while maintaining full electrical isolation and signal integrity. Its direct compatibility with the VersaMax backplane and carrier system means it slots into existing rack configurations without additional interface hardware, preserving system consistency and simplifying spare parts management across multi-site installations.

From a control architecture perspective, the IC200MDD844 occupies the I/O layer — the critical interface between the physical process and the CPU’s decision logic. When paired with a VersaMax CPU module such as the IC200CPUE05 or IC200CPU001, the module participates in the deterministic scan cycle that governs real-time process control. Signal latency is minimized, and the module’s status data is continuously available to the controller for diagnostics and fault detection, supporting proactive maintenance strategies that reduce unplanned downtime.

Power distribution within the VersaMax architecture is handled through dedicated power supply modules such as the IC200PWR002 or IC200PWR101, which provide regulated 24VDC or 120/240VAC input options. The IC200MDD844 draws its operating power from the backplane bus, ensuring clean, stable power delivery without field wiring complexity. This architecture also supports the use of redundant power configurations in critical applications, where dual power supplies feed the same backplane to eliminate single points of failure at the power layer.

Network and communications integration is a core strength of the VersaMax platform. The IC200MDD844 operates within systems that support Ethernet Global Data (EGD), Genius Bus, Profibus DP, and DeviceNet communications through dedicated network interface modules such as the IC200PBI001 or IC200ETM001. This multi-protocol capability allows the IC200MDD844’s I/O data to be shared across distributed control architectures, SCADA systems, and historian platforms without protocol conversion overhead.

For human-machine interface integration, the IC200MDD844’s I/O status and diagnostic data are fully accessible through GE’s Proficy Machine Edition programming environment, enabling HMI panels — including GE QuickPanel series or third-party SCADA terminals — to display real-time field status, alarm conditions, and module health. This transparency across the HMI layer accelerates operator response and supports structured alarm management in compliance with ISA-18.2 standards.

At the execution layer, the IC200MDD844 drives and monitors discrete field devices including solenoid valves, motor starters, proximity sensors, pushbuttons, and limit switches. Its mixed I/O architecture means a single module can simultaneously handle both command outputs and feedback inputs within the same process loop, reducing wiring runs and simplifying cabinet layout in space-constrained control panels.

Terminal modules and wiring accessories compatible with the VersaMax carrier system, such as the IC200CHS002 or IC200CHS022 expansion carriers, allow the IC200MDD844 to be deployed in both local and remote I/O configurations. Remote I/O drops connected via Genius Bus or Profibus extend the system’s physical reach across large plant floors without sacrificing scan performance or diagnostic visibility.

All IC200MDD844 modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation, ensuring operational confidence for system integrators, OEMs, and end users. Our inventory is maintained to support both immediate replacement requirements and long-term project builds, with global logistics capability for expedited delivery to manufacturing, power generation, petrochemical, water treatment, mining, metallurgical, and packaging automation sites.

Product Specification Table

System Compatibility Notes

The IC200MDD844 achieves its full value when deployed as part of a coordinated VersaMax control system. A typical architecture integrating this module includes a VersaMax CPU such as the IC200CPUE05 at the control layer, supported by IC200PWR002 power supply modules providing stable backplane power. Analog signal acquisition is handled by companion modules such as the IC200ALG320 analog input module or IC200ALG430 analog output module, while network connectivity is established through the IC200ETM001 Ethernet TCP/IP module or IC200PBI001 Profibus DP interface.

For remote I/O expansion, the IC200GBI001 Genius Bus Interface module extends the system’s I/O reach to distributed field panels, with the IC200MDD844 deployable at remote drops alongside IC200MDL650 discrete input modules and IC200MDL740 discrete output modules for dedicated signal segregation. Expansion carriers such as the IC200CHS022 provide additional module slots without requiring a separate power supply, maintaining system compactness. This coordinated architecture ensures that the IC200MDD844 operates within a fully validated, manufacturer-consistent control platform, reducing integration risk and simplifying long-term spare parts procurement.

Industrial Application Notes

The GE Fanuc IC200MDD844 is deployed across a wide range of industrial automation sectors. In manufacturing and assembly lines, it manages discrete I/O for conveyor control, part detection, and end-of-line testing stations. In power generation and utilities, it interfaces with switchgear control circuits, breaker status monitoring, and auxiliary equipment sequencing. In petrochemical and refining applications, the module handles valve position feedback and pump control within safety-instrumented system architectures. Water and wastewater treatment facilities use the IC200MDD844 for pump station control, level switch monitoring, and chemical dosing system management. In mining and metallurgical operations, it supports conveyor interlocking, crusher control, and ventilation system automation. Packaging and material handling lines rely on the module for high-speed discrete I/O in pick-and-place, labeling, and palletizing applications. Across all these sectors, the IC200MDD844’s native VersaMax compatibility ensures seamless integration into both new system builds and legacy system expansions.

Product Compatibility FAQ

Q1: Is the IC200MDD844 compatible with both local and remote VersaMax I/O configurations?
Yes. The IC200MDD844 is fully compatible with VersaMax local I/O racks and remote I/O drops connected via Genius Bus or Profibus DP network interface units. In remote configurations, the module operates identically to local placement, with full diagnostic data returned to the CPU over the network. No additional configuration is required beyond standard network interface module setup in Proficy Machine Edition.

Q2: Can the IC200MDD844 be used in a redundant CPU architecture?
The IC200MDD844 is compatible with VersaMax systems that support CPU redundancy configurations. In redundant architectures, I/O modules including the IC200MDD844 continue to operate during CPU switchover events, as the I/O backplane remains powered and active. Redundant CPU modules such as the IC200CPUE05 in a hot-standby configuration manage switchover transparently, ensuring uninterrupted I/O scanning and process control continuity.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term maintenance?
All IC200MDD844 modules supplied by ZYPLC carry a warranty terms confirmed during quotation covering manufacturing defects and operational failures under normal industrial operating conditions. ZYPLC maintains dedicated inventory of VersaMax platform components to support both warranty replacements and long-term maintenance procurement. Our technical team provides pre-sales architecture consultation and post-sales support to ensure correct module selection, system integration, and ongoing operational reliability.
