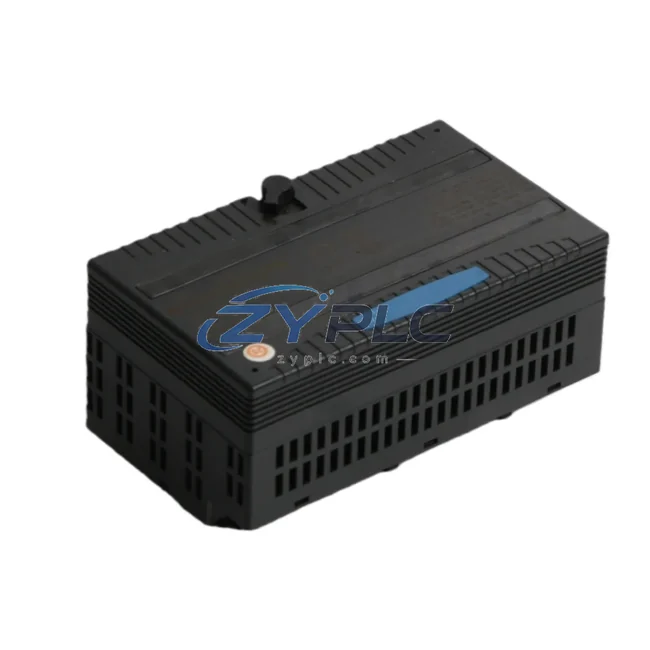

GE Fanuc IC200MDL740E Discrete Output for VersaMax
The GE Fanuc IC200MDL740E is a 16-point 120VAC discrete output module engineered for seamless integration within the VersaMax modular PLC platform. Rather than functioning as a standalone component, this module is designed from the ground up to operate as a coordinated element within a layered industrial control architecture — connecting the control layer, I/O layer, power distribution layer, and field execution layer into a unified, high-reliability automation system. Its role in system integration ensures that signal flow, module addressing, and rack-level communication remain consistent across the entire control hierarchy, reducing commissioning time and long-term maintenance overhead.
In modern industrial automation, the strength of a control system lies not in individual components but in the coherence of the architecture they form. The IC200MDL740E contributes to this coherence by delivering deterministic output switching, stable electrical isolation, and full compatibility with the VersaMax CPU and backplane ecosystem. Whether deployed in a standalone VersaMax rack or as part of a distributed I/O network, this module maintains the signal integrity and timing precision that process-critical applications demand.
Product Specification Table
| Parameter |
Specification |
| System Role |
Discrete Output Module — I/O Layer |
| Output Points |
16 Points, 120VAC |
| Output Type |
Triac (Solid-State AC Output) |
| Load Voltage Range |
85–132VAC, 47–63Hz |
| Max Load Current per Point |
0.5A |
| Max Module Load Current |
4A (shared across all points) |
| Isolation |
Optical isolation between field and logic side |
| Backplane Compatibility |
VersaMax Local I/O Backplane (IC200CHS series) |
| Communication Interface |
VersaMax backplane bus (local rack) |
| CPU Compatibility |
IC200CPUE05, IC200CPUE05-AE, IC200CPU001 and compatible VersaMax CPUs |
| Power Consumption (Logic) |
Supplied via backplane — no external logic power required |
| Operating Temperature |
0°C to 60°C |
| Relative Humidity |
5–95% non-condensing |
| Mounting |
DIN rail or panel mount via VersaMax backplane |
| Dimensions |
Standard VersaMax single-slot module form factor |
| Certifications |
UL Listed, CE Marked |
| Warranty |
warranty terms confirmed during quotation — covered from date of shipment |
System Compatibility Notes
The IC200MDL740E achieves its full performance potential when integrated within a complete VersaMax control system architecture. At the control layer, the IC200CPUE05 or IC200CPU001 CPU module serves as the program execution engine, scanning I/O data and issuing output commands to the IC200MDL740E via the backplane bus at deterministic scan rates. The CPU’s ability to address each output point individually allows for precise field device control — from motor contactors and solenoid valves to indicator lamps and relay coils.
The backplane itself — typically an IC200CHS022 or IC200CHS014 local I/O carrier — provides the physical and electrical foundation for module interconnection. Proper backplane selection ensures that power distribution, module slot addressing, and bus communication remain stable under continuous industrial duty cycles. Alongside the IC200MDL740E, discrete input modules such as the IC200MDL640 (16-point 120VAC input) are commonly installed in adjacent slots to complete the field I/O layer, enabling bidirectional signal exchange with field devices.
Power architecture is equally critical to system reliability. The IC200PWR002 power supply module provides regulated 5VDC backplane power and 24VDC auxiliary output, ensuring that all modules — including the IC200MDL740E — receive stable operating voltage even under fluctuating plant power conditions. For applications requiring redundant power, dual power supply configurations using matched IC200PWR modules can be implemented to eliminate single points of failure at the power layer.
At the network and communications layer, the IC200PBI001 Profibus DP slave module or IC200ETM001 Ethernet TCP/IP module can be installed within the same VersaMax rack to extend the system’s connectivity to supervisory SCADA platforms, distributed control systems, or remote HMI terminals. This network integration allows the IC200MDL740E’s output states to be monitored and commanded remotely, supporting centralized alarm management and production data logging without additional field wiring.
For human-machine interface requirements, the VersaMax architecture integrates cleanly with GE’s QuickPanel HMI series, which communicates with the CPU via serial or Ethernet links. Operators can monitor real-time output status, acknowledge alarms, and initiate manual overrides directly from the HMI panel — with the IC200MDL740E executing the resulting field commands within the same scan cycle. Terminal modules and marshalling components, such as the IC200ACC001 connector kit, complete the wiring interface between the module’s output terminals and field cable assemblies, ensuring clean, maintainable termination practices across the control cabinet.
Industrial Application Notes
The IC200MDL740E is deployed across a wide range of industrial sectors where 120VAC discrete output control is required within a structured PLC architecture.
In manufacturing and assembly line automation, the module controls conveyor drive contactors, pneumatic valve solenoids, and machine status indicators. Its solid-state triac outputs provide silent, arc-free switching — extending the service life of field devices and reducing maintenance intervals in high-cycle applications.
In power generation and electrical substation control, the IC200MDL740E is used to command motor-operated disconnect switches, alarm annunciators, and auxiliary relay circuits. The module’s optical isolation ensures that high-voltage transients on the field side do not propagate into the PLC logic circuitry, protecting the CPU and backplane from electrical interference.
In water and wastewater treatment facilities, the module controls pump motor starters, chemical dosing valve actuators, and process status lamps. Its compatibility with the VersaMax distributed I/O architecture allows control panels to be located remotely from the main CPU rack, reducing cable runs and simplifying plant-wide system expansion.
In oil, gas, and petrochemical process control, the IC200MDL740E is integrated into safety-instrumented system (SIS) support panels and utility control systems. While the module itself is not SIL-rated, it is commonly used in non-safety utility circuits within the same control cabinet as certified safety modules, contributing to overall system architecture efficiency.
In mining, metallurgy, and heavy industry, the module’s robust operating temperature range and DIN rail mounting make it suitable for installation in harsh-environment control enclosures. Its compatibility with the full VersaMax I/O range allows engineers to standardize on a single platform across multiple machine types and process areas, simplifying spare parts management and technician training.
Product Compatibility FAQ
Q1: Is the IC200MDL740E compatible with all VersaMax CPU modules, and can it be mixed with other I/O modules in the same rack?
The IC200MDL740E is fully compatible with all VersaMax local I/O backplanes and CPU modules, including the IC200CPUE05 and IC200CPU001 series. It can be installed in any available slot on the IC200CHS series backplane alongside discrete input modules (e.g., IC200MDL640), analog I/O modules, and specialty modules without configuration conflicts. The CPU automatically recognizes the module type during rack initialization, and I/O addressing is assigned based on slot position. No special configuration jumpers or DIP switch settings are required for standard operation.
Q2: What are the key considerations for installing the IC200MDL740E in an existing VersaMax architecture, and how does it affect system scan time?
Installation requires powering down the rack before inserting or removing the module — hot-swap is not supported on the VersaMax local I/O backplane. Once installed, the CPU’s I/O configuration table must be updated to include the new module’s slot address. The IC200MDL740E adds a minimal fixed overhead to the CPU scan cycle — typically less than 0.5ms per 16-point output module — which is negligible in most applications. For systems with tight scan time budgets, engineers should verify total I/O count against the CPU’s maximum I/O capacity specification before expanding the rack.
Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term maintenance and spare parts availability for the IC200MDL740E?
The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. ZYPLC maintains dedicated inventory of the IC200MDL740E and compatible VersaMax components to support both immediate replacement needs and planned maintenance programs. For long-term architecture support, ZYPLC can supply matched spare modules, assist with cross-reference identification for obsolete part numbers, and provide technical guidance on system-level compatibility. Contact our engineering team at plc.sales@zyplc.com or +86 19859288691 for spare parts planning and warranty claims.
