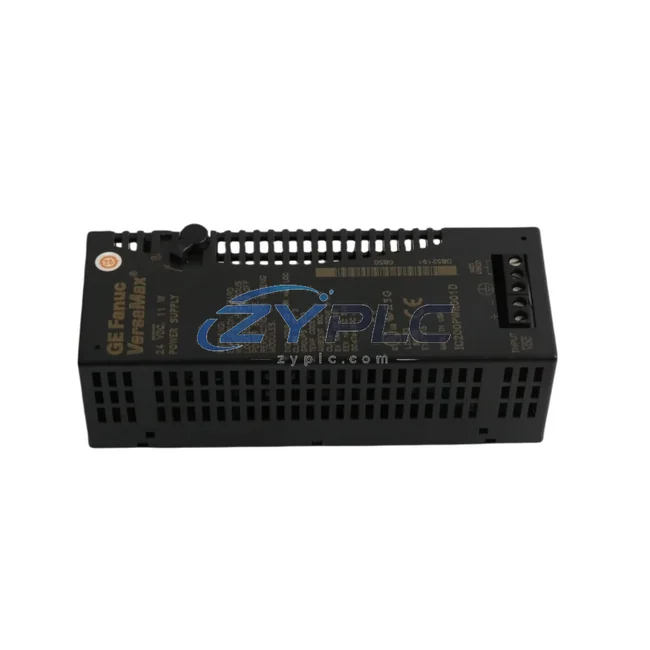

GE Fanuc IC200PWR001 Power Supply for VersaMax

GE Fanuc IC200PWR001 Power Supply for VersaMax: Compatibility and Replacement Notes

The GE Fanuc IC200PWR001 is a 24VDC input power supply module engineered specifically for the VersaMax modular I/O and controller platform. Within a layered industrial automation architecture, the power supply is not a peripheral component — it is the electrical foundation upon which every other module depends. The IC200PWR001 delivers regulated, stable DC bus power to the VersaMax backplane, enabling consistent operation of CPU modules, discrete and analog I/O modules, communication gateways, and specialty function modules across the entire rack assembly. Its role in the control hierarchy spans from the physical layer upward, directly influencing signal integrity, module initialization reliability, and system-wide uptime.

In modern distributed control architectures, power delivery must be treated as a system-level design decision rather than an afterthought. The IC200PWR001 is designed to integrate seamlessly into VersaMax rack configurations, supporting both standalone controller deployments and expanded multi-rack systems where power budget allocation across backplane segments is a critical engineering consideration. When paired with the IC200CPU001 or IC200CPU002 VersaMax CPU modules, the IC200PWR001 ensures that processor cycle times remain stable and that I/O scan rates are not compromised by voltage fluctuation or current brownout conditions. This level of electrical consistency is essential in process control environments where deterministic response times are a system requirement.

Product Specification Table

System Compatibility Notes

The IC200PWR001 does not operate in isolation — its value is realized through its coordination with every other module in the VersaMax rack and the broader control cabinet. At the CPU layer, the IC200PWR001 provides the stable power rail required by the IC200CPU001 VersaMax CPU, ensuring that program scan cycles execute without interruption and that the CPU’s internal watchdog timers are not triggered by power anomalies. At the I/O layer, discrete input modules such as the IC200MDL640 and discrete output modules such as the IC200MDL740 rely on consistent backplane voltage to maintain accurate signal sampling and output switching. Any instability in the power supply directly translates to I/O read errors or output latching failures — conditions that are unacceptable in safety-critical or high-throughput production environments.

At the network and communication layer, the IC200PWR001 supports the operational stability of VersaMax network interface units such as the IC200PBI001 Profibus DP slave adapter and Ethernet network interface modules, which require uninterrupted power to maintain fieldbus communication cycles. Loss of power continuity at the backplane level can cause network interface modules to drop off the fieldbus, triggering fault states in the master PLC or DCS controller. By maintaining a clean, regulated power bus, the IC200PWR001 ensures that communication gateways remain online and that data exchange between the VersaMax I/O subsystem and the host controller — whether a GE Fanuc PACSystems RX3i, a Series 90-30, or a third-party master — remains uninterrupted.

At the human-machine interface layer, operator panels and HMI terminals connected to the control network depend on the I/O subsystem for real-time process data. When the IC200PWR001 maintains stable backplane power, HMI screens display accurate, low-latency process values, enabling operators to make informed control decisions. At the execution layer, variable frequency drives, servo amplifiers, and relay output modules that receive commands from VersaMax output modules benefit from the signal consistency that a stable power supply enables. The IC200PWR001 is therefore a foundational component in a coordinated control architecture that spans from field sensors through to final control elements.

For redundant power architectures, the IC200PWR001 can be deployed in configurations where dual power feeds from separate 24VDC sources are used to protect against single-point power failures. Engineering teams designing high-availability systems often pair the IC200PWR001 with external DC UPS modules or redundant power distribution units within the control panel, ensuring that the VersaMax rack remains energized even during upstream power disturbances. Terminal block assemblies and marshalling panels within the same cabinet are typically wired to the same 24VDC bus, making the IC200PWR001’s input voltage compatibility a key factor in overall panel design consistency.

Industrial Application Notes

The IC200PWR001 is deployed across a wide range of industrial sectors where the VersaMax platform is used as a distributed I/O subsystem or standalone controller. In manufacturing and discrete production environments, VersaMax racks equipped with the IC200PWR001 are installed at machine-level control panels, providing local I/O processing for conveyor systems, assembly stations, robotic work cells, and packaging lines. The module’s compact form factor and DIN rail compatibility make it well-suited for space-constrained control cabinets in automotive, electronics, and consumer goods manufacturing facilities.

In the power generation and electrical utility sector, VersaMax systems with the IC200PWR001 are used for substation automation, switchgear control, and protection relay interfacing. The 24VDC input voltage is standard in substation DC distribution systems, making the IC200PWR001 directly compatible with battery-backed DC bus architectures common in utility control rooms. In petrochemical and oil and gas applications, VersaMax racks are deployed in remote terminal unit (RTU) configurations for pipeline monitoring, compressor station control, and tank farm management. The IC200PWR001’s wide input voltage range accommodates the voltage variations typical of field-installed DC power systems in these environments.

Water and wastewater treatment facilities use VersaMax systems for pump station control, chemical dosing automation, and SCADA integration. The IC200PWR001 supports continuous operation in these applications, where system uptime is directly linked to public health and regulatory compliance. In mining and mineral processing, VersaMax racks with the IC200PWR001 are used for conveyor drive control, crusher monitoring, and ore processing automation, where the harsh electrical environment demands robust power supply performance. Metallurgical and steel plant applications similarly rely on the IC200PWR001 to power VersaMax I/O racks in furnace control, rolling mill automation, and material handling systems where high electromagnetic interference levels are present.

Product Compatibility FAQ

Q1: Is the IC200PWR001 compatible with all VersaMax backplane and carrier configurations, and can it support expanded multi-rack systems?
The IC200PWR001 is designed for use with standard VersaMax modular I/O carriers and backplanes, including the IC200CHS002 and IC200CHS005 series. In multi-rack configurations, each rack requires its own power supply module, as the IC200PWR001 provides power to the local backplane only. For expanded systems, engineers should calculate the total current draw of all installed modules — CPU, I/O, and communication — to confirm that the IC200PWR001’s output capacity is sufficient for the specific rack configuration. ZYPLC’s technical team can assist with power budget calculations for complex multi-rack VersaMax deployments.

Q2: How does the IC200PWR001 support long-term maintenance and spare parts management in installed VersaMax systems?
The IC200PWR001 is a field-replaceable module that can be swapped without specialized tools, minimizing maintenance downtime. For facilities with multiple VersaMax racks, maintaining a stock of IC200PWR001 modules as critical spares is a standard practice recommended by industrial maintenance engineers. ZYPLC maintains inventory of the IC200PWR001 and compatible VersaMax components, supporting rapid fulfillment for both planned maintenance and emergency replacement scenarios. All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation, providing assurance of module quality and operational reliability from the date of delivery.

Q3: What are the key installation and commissioning considerations for the IC200PWR001 in a new VersaMax system deployment?
