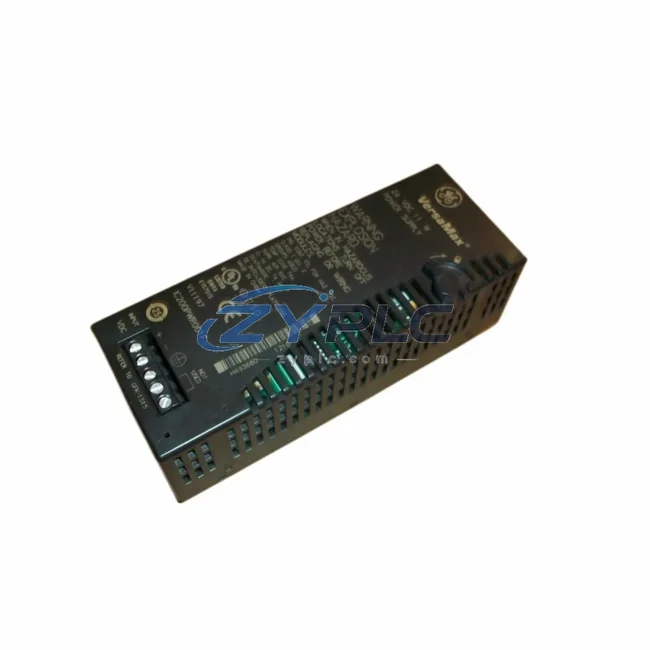

GE Fanuc IC200PWR001F Power Supply for VersaMax

GE Fanuc IC200PWR001F Power Supply for VersaMax

In any layered industrial automation system, the power supply module is not a peripheral — it is the structural foundation upon which every other component depends. The GE Fanuc IC200PWR001F is a 24VDC input power supply module engineered specifically for the VersaMax PLC platform, delivering stable, regulated power to the CPU, I/O modules, and communication interfaces that form the backbone of distributed control architectures. Whether deployed in a standalone machine controller or integrated into a multi-rack, multi-node system, the IC200PWR001F provides the electrical consistency that modern industrial environments demand.

The VersaMax system is designed around modularity and scalability. The IC200PWR001F slots directly into the VersaMax backplane, supplying power to the IC200CPUE05 CPU module and the full range of IC200 series I/O modules — including discrete input modules, analog output modules, and mixed-signal terminal assemblies. This tight integration means that engineers do not need to source external power conditioning equipment for standard rack configurations; the IC200PWR001F handles voltage regulation, inrush current limiting, and fault isolation internally, reducing both BOM complexity and panel wiring time.

Product Specification Table

System Compatibility Notes

The IC200PWR001F does not operate in isolation — its value is realized through the coordinated architecture it enables. In a typical VersaMax control cabinet, the power supply module sits at the left end of the IC200 backplane, feeding regulated voltage to the IC200CPUE05 CPU, which executes the ladder logic or function block programs governing the entire process. Adjacent to the CPU, engineers typically install IC200MDL740 discrete output modules for relay-driven actuator control, and IC200ALG260 analog input modules for 4–20mA process signal acquisition from field transmitters.

On the network side, the IC200PWR001F supports architectures that include the IC200PBI001 Profibus DP slave module, enabling the VersaMax rack to participate in a Profibus network managed by a higher-level Siemens S7 or GE Series 90-70 master controller. For Ethernet-based SCADA integration, the IC200ETM001 Ethernet TCP/IP module can be added to the same rack, allowing the IC200CPUE05 to exchange data with historian servers, MES platforms, and HMI terminals running GE iFIX or Wonderware InTouch.

Power distribution within the panel is typically handled upstream of the IC200PWR001F by a 24VDC DIN rail power supply such as a Phoenix Contact QUINT or PULS DIMENSION unit, which converts AC mains to the 24VDC input the IC200PWR001F requires. This two-stage power architecture — AC/DC conversion followed by the IC200PWR001F’s on-board regulation — provides an additional layer of isolation and noise rejection, which is particularly important in environments with variable-frequency drives, servo amplifiers, or high-current switching loads operating nearby.

For applications requiring redundancy, the IC200PWR001F can be paired with a redundant power supply configuration using a diode ORing module, ensuring that a single power supply failure does not interrupt CPU operation or I/O scanning. This is a common design pattern in water treatment SCADA panels, substation automation cabinets, and continuous process control systems where unplanned downtime carries significant operational or safety consequences.

Industrial Application Notes

The IC200PWR001F is deployed across a wide range of industrial sectors where the VersaMax platform has established a long service history. In municipal water treatment facilities, VersaMax racks powered by the IC200PWR001F manage pump sequencing, valve actuation, and flow measurement across distributed lift stations, with each remote rack communicating back to a central SCADA server via Ethernet or Profibus. The power supply’s wide input voltage tolerance (18–30VDC) accommodates the voltage fluctuations common in remote panel installations fed by long cable runs.

In packaging and material handling lines, the IC200PWR001F supports high-cycle-rate discrete I/O scanning, where the IC200CPUE05 must process hundreds of input state changes per second from photoelectric sensors, proximity switches, and encoder feedback signals. The stable power delivery of the IC200PWR001F ensures that the CPU’s scan cycle remains consistent even under dynamic load conditions caused by simultaneous I/O module updates.

In oil and gas upstream applications, VersaMax systems with IC200PWR001F power supplies are used in wellhead control panels and pipeline monitoring RTUs, where the combination of compact form factor, wide temperature tolerance, and robust power architecture makes the platform well-suited to harsh field environments. The module’s compatibility with the IC200 series terminal assemblies and field wiring modules simplifies installation and reduces commissioning time for field engineers.

For OEM machine builders, the IC200PWR001F offers a reliable, well-documented power architecture that simplifies UL panel certification, since the VersaMax platform’s component-level certifications are recognized by major certification bodies. This reduces the engineering burden associated with custom power supply designs and accelerates time-to-market for new machine variants.

All IC200PWR001F units supplied by ZYPLC are sourced from verified inventory channels, subjected to functional power-on testing prior to shipment, and covered by a warranty terms confirmed during quotation. Global shipping is available with lead times confirmed at the time of order. For volume procurement, system integration projects, or urgent replacement requirements, contact the ZYPLC technical sales team directly.

Product Compatibility FAQ

Q1: Is the IC200PWR001F compatible with all VersaMax backplane configurations?
The IC200PWR001F is designed for the standard IC200 VersaMax backplane and is compatible with the full range of IC200 series CPU, I/O, and communication modules. It is not interchangeable with VersaMax Micro or VersaMax Nano power supply modules, which use different form factors and connector pinouts. Always verify the backplane part number before ordering a replacement power supply.

Q2: Can the IC200PWR001F be used in a redundant power supply configuration?
Yes. Redundant power supply architectures are supported by adding a second IC200PWR001F and an external diode ORing or active load-sharing module between the two supplies and the 24VDC bus. This configuration is recommended for critical process control applications where continuous operation is required. ZYPLC can advise on compatible ORing modules and redundancy wiring practices upon request.

Q3: What does the warranty terms confirmed during quotation cover, and what is the replacement process?
The warranty terms confirmed during quotation covers functional defects identified under normal operating conditions consistent with GE Fanuc VersaMax platform specifications. Each unit is tested prior to shipment to verify power output stability and module communication. In the event of a warranty claim, ZYPLC provides a replacement unit or repair service with a target turnaround aligned to the customer’s operational requirements. Contact plc.sales@zyplc.com with the order reference and fault description to initiate a warranty case.
