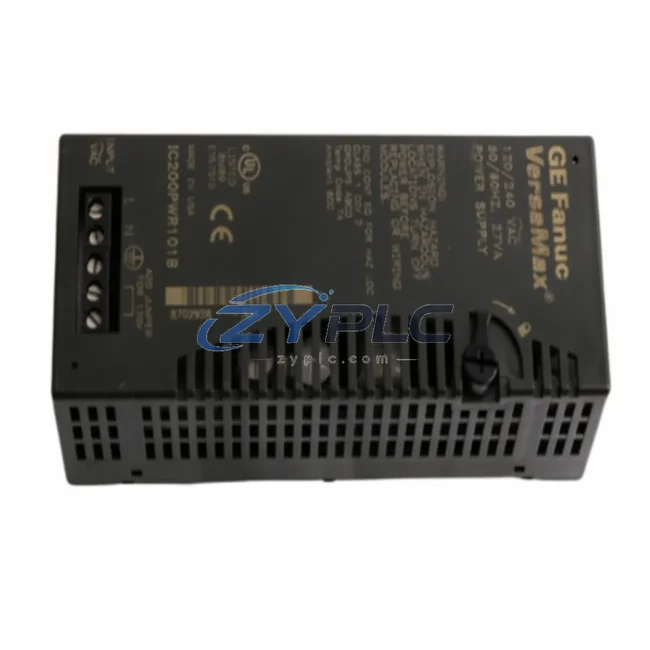

GE Fanuc IC200PWR101B Power Supply for VersaMax

GE Fanuc IC200PWR101B Power Supply for VersaMax: Compatibility and Replacement Notes

In modern industrial automation, the power supply module is not a peripheral accessory — it is the foundational layer upon which every other control system component depends. The GE Fanuc IC200PWR101B is a 24VDC input power supply module engineered specifically for the GE Fanuc VersaMax distributed I/O and PLC platform. Its role within a layered control architecture extends far beyond simple voltage conversion: it defines the electrical stability, system availability, and long-term maintainability of the entire control node it supports.

When deployed within a VersaMax backplane assembly, the IC200PWR101B provides regulated DC power to all modules installed in the local rack — including CPU carriers, discrete I/O modules, analog signal modules, and communication interface cards. Its design is optimized for the VersaMax modular ecosystem, ensuring that power distribution across the backplane bus remains stable under dynamic load conditions typical of industrial process environments. This makes it a critical enabler of system consistency, particularly in applications where signal integrity and scan-cycle determinism are non-negotiable.

Product Specification Table

System Compatibility Notes

The IC200PWR101B does not operate in isolation. Its value is fully realized when understood within the context of a complete VersaMax control node. A typical VersaMax architecture begins with a Network Interface Unit (NIU) — such as the IC200BEM003 (Profibus-DP NIU) or the IC200PBI001 (Ethernet NIU) — which serves as the communication gateway between the remote I/O rack and the upstream PLC or DCS controller. The IC200PWR101B supplies the backplane power that keeps this NIU and all associated I/O modules operational.

Within the same rack, discrete input modules such as the IC200MDL640 (16-point 24VDC input) and discrete output modules such as the IC200MDL740 (16-point 24VDC output) rely on the stable backplane voltage delivered by the IC200PWR101B to maintain accurate signal acquisition and reliable actuator control. For analog process control loops, modules like the IC200ALG260 (analog input, 4–20mA) depend on clean, regulated power to preserve signal resolution and minimize noise-induced measurement error.

At the control layer, the IC200PWR101B-powered rack may interface with a GE Fanuc VersaMax Micro PLC (such as the IC200UDR005) or serve as a remote expansion rack connected to a higher-tier controller such as the GE Fanuc PACSystems RX3i CPU (e.g., IC695CPE302). In either topology, the power supply module’s role is to ensure that the local rack remains energized and responsive, maintaining the integrity of the distributed control architecture even under fluctuating field power conditions.

For redundant power architectures — common in critical process industries — the IC200PWR101B can be deployed alongside a secondary power feed or an external UPS system to provide power-layer redundancy. This approach, combined with the use of IC200CHS022 expansion carriers and IC200CBL105 expansion cables, allows engineers to build scalable, fault-tolerant VersaMax systems that meet the uptime requirements of continuous process operations.

At the human-machine interface layer, operator stations running GE iFIX SCADA or third-party HMI panels communicate with the VersaMax system through the NIU’s network port, while the IC200PWR101B ensures that the I/O rack remains available to respond to polling cycles without interruption. This end-to-end power continuity — from the field device through the I/O module, across the backplane bus, and up to the communication gateway — is what makes the IC200PWR101B a system-critical component rather than a commodity part.

Industrial Application Notes

The GE Fanuc IC200PWR101B finds application across a broad range of industrial sectors where the VersaMax platform has been deployed as a distributed I/O solution or standalone micro-PLC system.

In manufacturing and discrete assembly environments, VersaMax racks powered by the IC200PWR101B are commonly installed in machine control panels, conveyor systems, and robotic cell interfaces. The module’s compact form factor and DIN rail compatibility make it well-suited for space-constrained control cabinets where reliable 24VDC power distribution is essential for maintaining production throughput.

In power generation and electrical substation applications, VersaMax systems serve as remote terminal units (RTUs) or bay-level controllers. The IC200PWR101B’s wide input voltage tolerance (18–30VDC) accommodates the voltage variations common in substation battery-backed DC power systems, ensuring continuous operation during grid disturbances or switchgear events.

In oil, gas, and petrochemical facilities, VersaMax distributed I/O racks are deployed in field junction boxes and remote instrument enclosures. The IC200PWR101B powers the I/O modules that interface with pressure transmitters, flow meters, and valve positioners, supporting the real-time data acquisition required for process safety and regulatory compliance.

In water and wastewater treatment plants, VersaMax systems manage pump stations, chemical dosing skids, and filtration control panels. The IC200PWR101B’s robust design supports continuous duty operation in humid, chemically aggressive environments typical of water treatment infrastructure.

In mining, metals, and materials processing, VersaMax racks are used in conveyor drive control, crusher monitoring, and ore processing automation. The IC200PWR101B provides the stable backplane power needed to sustain reliable I/O scanning in environments subject to vibration, dust, and wide ambient temperature swings.

Product Compatibility FAQ

Q1: Is the IC200PWR101B compatible with all VersaMax backplane carriers, and can it support mixed I/O module configurations?
The IC200PWR101B is designed for use with the GE Fanuc VersaMax modular backplane family, including standard carriers such as the IC200CHS002 (2-slot) and IC200CHS005 (5-slot), as well as expansion carriers. It supports mixed configurations of discrete, analog, and specialty modules within the same rack, provided the total backplane current draw does not exceed the module’s rated output capacity. For high-density racks with multiple analog or communication modules, engineers should perform a power budget calculation to confirm compatibility before commissioning.

Q2: How does the IC200PWR101B support long-term maintenance and spare parts management in aging VersaMax installations?
Because the IC200PWR101B is a discrete, field-replaceable module, it supports a modular maintenance strategy: a failed power supply can be swapped without disturbing adjacent I/O modules or rewiring field connections. ZYPLC supports RFQ sourcing for tested IC200PWR101B units to support emergency replacement scenarios, minimizing unplanned downtime. All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation, providing documented quality assurance for maintenance records and asset management systems.

Q3: What installation and commissioning considerations apply when integrating the IC200PWR101B into an existing VersaMax architecture?
The IC200PWR101B must be installed in the designated power supply slot of the VersaMax carrier before any I/O modules are inserted. The 24VDC input must be sourced from a stable, fused DC supply with adequate current capacity for the full rack load. During commissioning, engineers should verify backplane bus voltage at the carrier’s test points and confirm that all module status LEDs indicate normal operation before enabling field I/O. system integration with upstream controllers — whether via Profibus, DeviceNet, or Ethernet NIU — should be validated through a full I/O checkout procedure to confirm end-to-end signal continuity across the control architecture.
