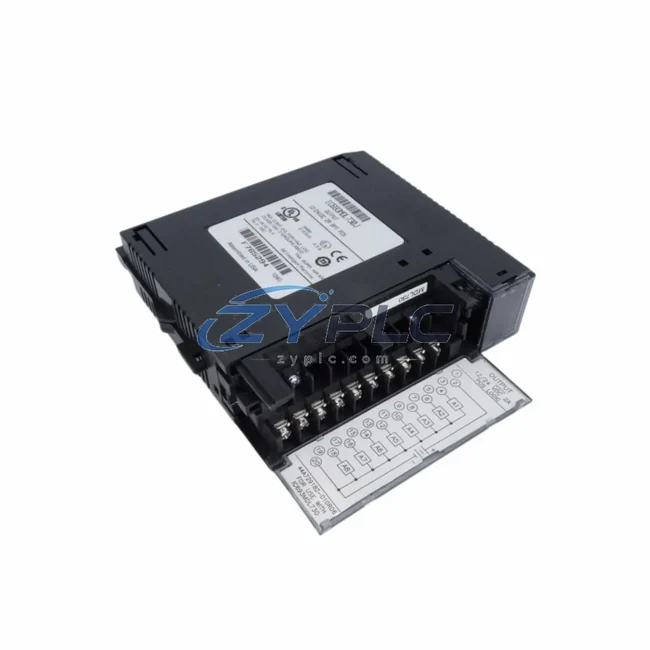

GE Fanuc IC693MDL730 Digital Output Module for Series 90-30 Systems

GE Fanuc IC693MDL730: Industrial Data Link for Series 90-30 Smart Factory Systems

The GE Fanuc IC693MDL730 is a high-density discrete digital output module engineered for the Series 90-30 PLC platform, delivering reliable signal control across complex industrial network architectures. Designed to serve as a critical node in the industrial data chain, the IC693MDL730 bridges field-level actuators and the upper control layer — enabling seamless data flow from sensor inputs through PLC logic to SCADA dashboards and HMI operator panels. In smart factory environments where uptime, data integrity, and real-time responsiveness are non-negotiable, this module provides the output switching precision and network compatibility that modern automation demands.

Whether deployed in discrete manufacturing, process control, or hybrid automation lines, the IC693MDL730 integrates directly into the Series 90-30 backplane, communicating with the IC693CPU374 and IC693CPU364 central processing units via the internal rack bus. Its output channels drive solenoids, relays, motor starters, and indicator lights — all coordinated through the PLC’s scan cycle and synchronized with upstream data from remote I/O racks such as the IC693CHS391 expansion chassis.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully connected industrial site, the IC693MDL730 sits at the intersection of field execution and network intelligence. The data flow begins at the sensor layer — proximity switches, photoelectric sensors, and pressure transmitters feed digital signals into input modules such as the IC693MDL654 (32-point discrete input module), which the Series 90-30 CPU processes in real time. The CPU’s output scan then drives the IC693MDL730’s 32 output channels, actuating downstream devices with millisecond-level response.

For sites requiring Ethernet connectivity, the IC693CMM321 communications coprocessor module enables the Series 90-30 rack to participate in plant-wide Ethernet/IP and Modbus TCP networks, allowing SCADA systems like GE Proficy iFIX or Ignition by Inductive Automation to poll real-time output states from the IC693MDL730 and log them to historian databases. Where legacy Profibus networks are in use, the IC693PBM200 Profibus master module bridges the Series 90-30 to distributed I/O nodes and variable frequency drives — including GE AF-600FP series drives — enabling coordinated motor control with full network visibility.

Remote I/O expansion is handled through the IC693CHS391 and IC693CHS398 expansion chassis, extending the output reach of the IC693MDL730 across large production floors without additional CPUs. HMI panels such as the QuickPanel+ IC755CSS10CDA connect via Ethernet to display live output channel status, alarm states, and production counts — giving operators immediate visibility into the field execution layer driven by the IC693MDL730.

At the edge, industrial gateways aggregate data from multiple Series 90-30 racks and forward structured payloads to cloud-based MES or ERP platforms, completing the data chain from physical output switching to enterprise-level production analytics. The IC693MDL730 is the reliable execution endpoint in this chain — converting digital commands into physical action with the consistency that smart factory KPIs depend on.

Solving Data Isolation in Industrial Sites

Many industrial facilities operate with fragmented automation islands — legacy PLCs running proprietary protocols, output modules with no network visibility, and SCADA systems unable to reach field devices in real time. The GE Fanuc IC693MDL730, when integrated within a properly architected Series 90-30 system, directly addresses these challenges.

Protocol Unification: By pairing the IC693MDL730 with the IC693CMM321 Ethernet module or the IC693PBM200 Profibus master, sites can bridge Modbus RTU, SNP, Profibus DP, and Ethernet/IP protocols within a single rack — eliminating the need for standalone protocol converters and reducing network latency between field devices and control systems.

Breaking Data Silos: Output states from the IC693MDL730 are continuously available to SCADA and HMI systems via the communications modules, ensuring that production data — cycle counts, fault states, output activations — flows upward to supervisory systems without manual polling delays or data gaps.

Remote Monitoring and Diagnostics: Through Ethernet-connected SCADA platforms, maintenance engineers can remotely monitor the health of output channels, detect forced outputs, and diagnose wiring faults without physical access to the control panel — reducing mean time to repair (MTTR) and supporting predictive maintenance strategies.

Production Line Transparency: With the IC693MDL730 feeding real-time output data into historian databases, production managers gain full transparency into machine states, shift performance, and downtime events — enabling data-driven decisions that improve OEE (Overall Equipment Effectiveness).

Scalable System Expansion: The Series 90-30 platform supports up to 8 expansion racks, allowing additional IC693MDL730 modules to be added as production lines grow — without redesigning the control architecture or replacing the CPU. This modularity protects capital investment and simplifies future automation upgrades.

Industrial Connectivity FAQ

Q1: What communication protocols does the IC693MDL730 support for SCADA integration?
The IC693MDL730 itself communicates via the Series 90-30 backplane bus. For SCADA integration, it works in conjunction with communications modules such as the IC693CMM321 (Ethernet/Modbus TCP) or IC693PBM200 (Profibus DP), enabling the module’s output states to be monitored by iFIX, CIMPLICITY, Ignition, and other industrial SCADA platforms in real time.

Q2: How does the IC693MDL730 perform in terms of network stability and communication latency?
The IC693MDL730 operates on the deterministic Series 90-30 backplane bus, which provides consistent scan-cycle timing independent of network load. Communication latency to SCADA systems depends on the Ethernet or Profibus module configuration, but typical Modbus TCP polling cycles achieve sub-100ms response times — suitable for most discrete manufacturing and process control applications.

Q3: Can the IC693MDL730 be expanded to support larger automation systems?
Yes. The Series 90-30 platform supports multi-rack expansion via the IC693CHS391 and IC693CHS398 expansion chassis, allowing additional IC693MDL730 output modules to be added without replacing the CPU or communications infrastructure. This makes it straightforward to scale output capacity as production lines expand or new equipment is integrated.

Q4: What quality assurance and warranty coverage is provided for the IC693MDL730?
Every IC693MDL730 unit supplied by ZYPLC undergoes functional testing prior to shipment, verifying output channel operation, backplane communication, and LED status indication. All units are covered by a warranty terms confirmed during quotation from the date of shipment. In the event of a warranty claim, ZYPLC provides technical support and replacement coordination to minimize production downtime.
