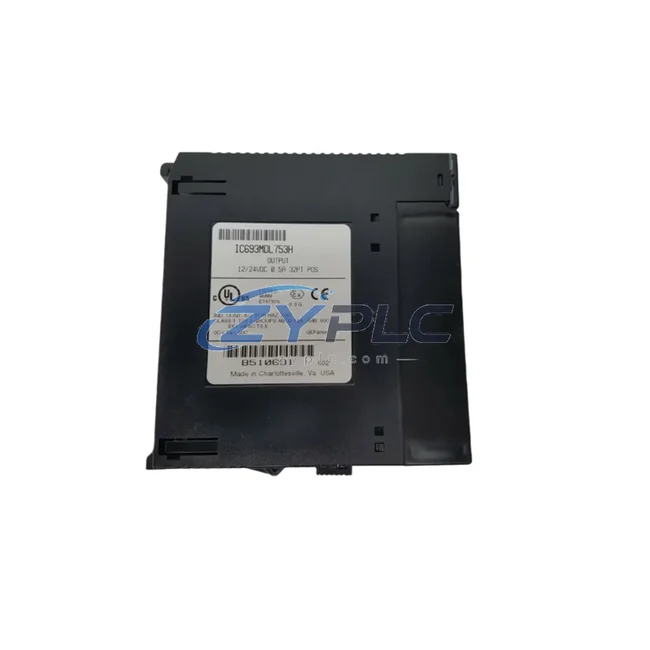

GE Fanuc IC693MDL753H Output for 90-30

GE Fanuc IC693MDL753H Output for 90-30: Compatibility and Replacement Notes

The GE Fanuc IC693MDL753H is a high-density discrete output module purpose-built for the Series 90-30 programmable logic controller platform. Within a layered industrial automation architecture, this module occupies a critical position at the field output layer, translating digital control signals from the CPU into reliable switching commands for actuators, solenoids, motor starters, and indicator systems. Its role is not simply to switch outputs — it is to maintain signal integrity, timing precision, and electrical isolation across the full control hierarchy, from the CPU backplane to the field device terminals.

Understanding the IC693MDL753H requires viewing it within the complete Series 90-30 system architecture. The module is designed to seat directly into the IC693CHS391 or IC693CHS397 baseplate, sharing the backplane bus with the IC693CPU374 or IC693CPU375 central processing unit. Power distribution to the output circuits is managed through the IC693PWR321 or IC693PWR330 power supply module, which provides regulated 24 VDC to the I/O rack. This coordinated power and signal architecture ensures that output switching events do not introduce voltage transients that could affect adjacent analog or communication modules on the same rack.

At the control layer, the CPU continuously scans the output image table and updates the IC693MDL753H channel states within each PLC scan cycle. This tight coupling between the IC693CPU374 processor and the output module ensures deterministic response times — a requirement in high-speed packaging lines, press control systems, and conveyor sequencing applications where output latency directly affects throughput and safety. The module supports up to 32 discrete output points, organized in groups that can be individually fused or protected, reducing the risk of a single field fault cascading into a full rack shutdown.

At the network and communication layer, the Series 90-30 system integrates with Ethernet and serial communication modules such as the IC693CMM321 communications coprocessor or the IC693CPU374’s embedded serial port, enabling the output module’s status to be monitored remotely via SCADA or DCS systems. In distributed architectures, the IC693MDL753H can operate within a remote I/O drop managed by a GE Fanuc IC693BEM331 bus expansion module, extending the physical reach of the control system without sacrificing scan cycle performance.

For applications requiring redundancy, the IC693MDL753H can be deployed in paired rack configurations where a secondary CPU and I/O rack mirror the primary system state. In power generation, water treatment, and petrochemical process control environments, this redundant output architecture ensures that a single module failure does not interrupt the control of critical field devices. The transition between primary and redundant output paths is managed at the CPU level, with bumpless transfer protocols that prevent false output pulses during switchover.

At the human-machine interface layer, operators interact with the output module’s status through HMI panels connected to the Series 90-30 CPU via serial or Ethernet links. Visualization of individual output channel states, fault diagnostics, and forced output overrides are all accessible through the HMI, enabling maintenance engineers to isolate field faults without interrupting the broader control program. This integration between the IC693MDL753H output states and the HMI display layer is fundamental to reducing mean time to repair in complex multi-zone automation systems.

In manufacturing and process industries — including automotive assembly, food and beverage processing, pharmaceutical packaging, and chemical batch control — the IC693MDL753H provides the output switching reliability that sustains continuous production. Its solid-state output design minimizes contact wear compared to relay-based alternatives, and its compatibility with the full Series 90-30 I/O family means that system expansions can be accomplished by adding modules to existing baseplates rather than redesigning the control cabinet. This modularity directly reduces engineering time and capital expenditure during plant upgrades.

Long-term maintenance planning for systems incorporating the IC693MDL753H benefits from the availability of compatible spare modules, consistent firmware compatibility across the Series 90-30 platform, and the ability to hot-swap modules in certain rack configurations without powering down the entire system. Maintaining a stock of IC693MDL753H modules as critical spares is a standard practice in facilities where unplanned downtime carries significant financial or safety consequences. ZYPLC maintains verified inventory of this module with full functional testing and a warranty terms confirmed during quotation, supporting both immediate replacement needs and long-term maintenance contracts.

Product Specification Table

System Compatibility Notes

The IC693MDL753H achieves its full performance potential when deployed as part of a coordinated Series 90-30 system. At the processor level, the IC693CPU374 or IC693CPU375 CPU manages the output image table and drives the module’s channel states through the backplane. The IC693PWR321 power supply provides stable DC power to the rack, while the IC693CHS391 baseplate physically integrates all modules into a unified I/O assembly. For discrete input correlation, the IC693MDL733 or IC693MDL741 input modules on the same rack provide the feedback signals that the CPU uses to confirm output execution — closing the control loop between command and confirmation.

In systems requiring analog control alongside discrete outputs, the IC693ALG390 analog output module can be installed in adjacent slots, sharing the same CPU scan and power infrastructure. Communication to supervisory systems is handled by the IC693CMM321 communications coprocessor, which supports Modbus RTU and other serial protocols, enabling the output module’s status to be reported to SCADA platforms without additional hardware. For remote I/O expansion, the IC693BEM331 bus expansion module extends the Series 90-30 rack to satellite locations, allowing the IC693MDL753H to be deployed at the field level while the CPU remains in the main control room. This distributed architecture is common in large-scale water treatment plants, mining conveyors, and multi-zone manufacturing lines where field devices are spread across significant physical distances.

Industrial Application Notes

In power generation facilities, the IC693MDL753H controls breaker trip coils, valve actuators, and alarm annunciators within the plant’s distributed control architecture. Its optical isolation and high-voltage field-side compatibility make it suitable for switchgear control panels where field voltages may reach 125 VDC. In petrochemical and refinery applications, the module drives solenoid valves in process control loops, with the CPU managing interlock logic that prevents unsafe valve combinations. The 32-point density reduces cabinet space requirements in environments where panel real estate is constrained by hazardous area classifications.

In water and wastewater treatment systems, the IC693MDL753H controls pump motor starters, UV disinfection systems, and chemical dosing pump relays. The module’s compatibility with the Series 90-30 redundant CPU architecture ensures that treatment processes continue uninterrupted even during a primary CPU failure. In automotive and general manufacturing assembly lines, the module drives pneumatic cylinder solenoids, conveyor drive contactors, and part-present indicator lights, with scan cycle times fast enough to support high-speed indexing operations. In mining and metallurgical applications, the module’s robust electrical design supports operation in environments with high levels of electrical noise from variable frequency drives and large motor starters — conditions where lesser output modules may experience spurious switching or communication errors.

Product Compatibility FAQ

Q1: Is the IC693MDL753H compatible with all Series 90-30 baseplates and CPUs?
The IC693MDL753H is designed for use with the full range of Series 90-30 baseplates, including the IC693CHS391 (5-slot) and IC693CHS397 (10-slot) configurations. It is compatible with all Series 90-30 CPUs, including the IC693CPU374 and IC693CPU375. No firmware upgrade is required for integration into existing Series 90-30 racks, making it a direct replacement for failed or end-of-life output modules in installed systems.

Q2: Can the IC693MDL753H be used in a redundant CPU architecture, and what are the configuration requirements?
Yes. In Series 90-30 redundant systems, the IC693MDL753H can be installed in both the primary and secondary I/O racks. The redundancy switchover is managed at the CPU level using GE Fanuc’s Hot Standby redundancy protocol. Both racks must be configured with identical module types and slot assignments to ensure bumpless transfer. No special firmware or hardware modification is required for the output module itself — redundancy configuration is handled entirely through the CPU and system software.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term maintenance planning?
The warranty terms confirmed during quotation covers functional defects identified under normal operating conditions, including output channel failures, backplane communication faults, and electrical isolation breakdown. All modules are fully tested prior to shipment using Series 90-30 compatible test racks. ZYPLC supports long-term maintenance planning by maintaining availability subject to RFQ confirmation of IC693MDL753H and compatible Series 90-30 components, enabling rapid replacement without extended lead times. For facilities with critical uptime requirements, ZYPLC can advise on recommended spare module quantities based on installed system size and historical failure rates.
