GE Fanuc IC693MDL940H Relay Output for Series 90-30

GE Fanuc IC693MDL940H Relay Output for Series 90-30

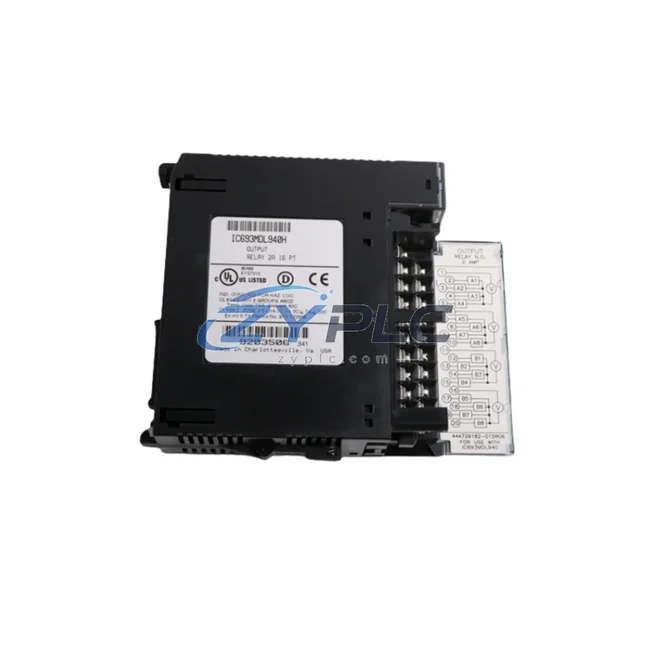

The GE Fanuc IC693MDL940H is a 16-point relay output module engineered for seamless integration within the Series 90-30 programmable logic controller platform. Rather than functioning as a standalone component, this module is designed to operate as a critical execution-layer element within a fully coordinated industrial control system architecture. Its role spans the boundary between the digital control domain and the physical process environment, converting CPU-issued logic commands into reliable, isolated switching actions across a wide range of load types. Whether deployed in discrete manufacturing, power distribution, water treatment, or process control environments, the IC693MDL940H delivers the output switching performance and system integration capability that modern automation systems demand.

In a layered automation architecture, the IC693MDL940H occupies the execution layer — the final stage where control decisions become physical actions. The module receives output commands from the Series 90-30 CPU, such as the IC693CPU374 or IC693CPU364, which execute ladder logic or function block programs stored in local or remote memory. These CPUs communicate with I/O modules across the Series 90-30 backplane, where the IC693MDL940H is installed in any available I/O slot of a 5-slot or 10-slot rack such as the IC693CHS397 or IC693CHS391. The backplane bus ensures deterministic, high-speed data exchange between the CPU and all installed modules, maintaining system-wide scan cycle integrity even under heavy I/O loading.

Power architecture is equally important to system reliability. The IC693MDL940H relies on the rack-mounted power supply — typically the IC693PWR321 or IC693PWR330 — to deliver stable 5 VDC backplane power. The relay contacts themselves are powered by the field-side voltage, which can range from 5 VDC to 250 VAC depending on the connected load. This dual-voltage architecture isolates the control electronics from field-side transients, protecting the CPU and communications infrastructure from electrical noise generated by motors, solenoids, and contactors in the field.

From a network and communications perspective, the Series 90-30 system supports multiple fieldbus and industrial Ethernet protocols. When the IC693MDL940H is used in conjunction with a communications module such as the IC693CMM321 (Genius Bus Controller) or the IC693CMM302 (Ethernet Interface), the system gains the ability to report output status, receive remote commands, and participate in distributed control architectures. This enables the IC693MDL940H to function not just as a local output device, but as a node within a plant-wide SCADA or DCS network, supporting real-time monitoring and remote diagnostics.

Human-machine interface integration further enhances the operational value of the IC693MDL940H. When paired with an HMI such as the QuickPanel series or a third-party panel running GE’s CIMPLICITY or iFIX SCADA software, operators gain real-time visibility into output channel states, fault conditions, and relay cycle counts. This transparency supports predictive maintenance strategies, allowing maintenance teams to identify relay wear before it causes unplanned downtime. The module’s output status bits are directly accessible via the CPU’s output image table, making HMI tag mapping straightforward and reducing engineering commissioning time.

For systems requiring redundancy, the IC693MDL940H can be deployed in architectures where critical output functions are duplicated across redundant racks or CPUs. GE Fanuc’s Hot Standby CPU redundancy solution, when implemented with compatible CPU modules and the IC693CHS398 redundancy backplane, allows seamless switchover without loss of output state. In such configurations, the IC693MDL940H continues to drive field devices without interruption, ensuring process continuity in high-availability applications such as turbine control, pipeline management, and critical infrastructure protection.

Long-term maintainability is a defining advantage of the Series 90-30 platform. The IC693MDL940H is a hot-swappable module in systems configured for I/O expansion, and its standardized form factor ensures that replacement units can be installed without special tools or reconfiguration. Spare module inventory management is simplified by the module’s broad compatibility across the Series 90-30 rack family. All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation, ensuring that engineering teams can plan maintenance cycles with confidence and minimize unbudgeted capital expenditure on replacement hardware.

Product Specification Table

System Compatibility Notes

The IC693MDL940H achieves its full potential when integrated within a complete Series 90-30 control system. At the control layer, the IC693CPU374 or IC693CPU364 CPU module executes the application program and manages the output image table that drives the relay channels. The CPU communicates with the IC693MDL940H across the IC693CHS397 10-slot backplane, which also accommodates analog input modules such as the IC693ALG221 and digital input modules such as the IC693MDL654, creating a unified I/O environment within a single rack.

For distributed I/O expansion, the IC693CMM321 Genius Bus Controller extends the control reach of the CPU to remote I/O drops, allowing additional IC693MDL940H modules to be deployed at field locations without running individual signal cables back to the main panel. This architecture reduces installation costs and improves signal integrity in large facilities. At the network layer, the IC693CMM302 Ethernet Interface module enables the Series 90-30 system to participate in plant-wide Ethernet/IP or SRTP communications, supporting integration with SCADA systems, historian servers, and MES platforms.

Terminal modules and wiring accessories complete the field-side installation. The IC693MDL940H’s output terminals connect to field devices via appropriately rated terminal blocks, with surge suppression devices recommended for inductive loads such as motor starters and solenoid valves. In redundant system designs, the IC693CHS398 redundancy backplane and a paired Hot Standby CPU ensure that a single module or CPU failure does not interrupt output switching, maintaining process continuity in mission-critical applications.

Industrial Application Notes

The IC693MDL940H is deployed across a wide range of industrial sectors where reliable relay output switching is essential to process integrity. In discrete manufacturing environments, the module controls conveyor drives, pneumatic actuators, indicator lamps, and safety interlocks, operating under the direction of a Series 90-30 CPU executing high-speed ladder logic programs. Its 16-channel capacity allows a single module to manage an entire production cell’s output requirements, reducing rack slot consumption and simplifying panel layout.

In power generation and distribution applications, the IC693MDL940H switches protective relays, circuit breaker trip coils, and alarm annunciators, where contact isolation and voltage range flexibility are critical. The module’s ability to switch loads from 5 VDC logic signals up to 250 VAC power circuits makes it suitable for both control-level and power-level switching within the same installation. Water and wastewater treatment facilities use the module to control pump motor starters, valve actuators, and chemical dosing systems, where the Series 90-30 platform’s proven reliability and long service life reduce lifecycle costs.

In oil and gas, petrochemical, and mining applications, the IC693MDL940H operates within hazardous area control panels, driving field devices through appropriately rated barriers and isolators. Its robust operating temperature range and high noise immunity make it suitable for environments where electrical interference from variable frequency drives, large motors, and welding equipment is common. Packaging and material handling lines benefit from the module’s fast relay response and high channel density, enabling precise sequencing of multiple actuators within tight cycle time constraints.

Product Compatibility FAQ

Q1: Is the IC693MDL940H compatible with all Series 90-30 backplanes and CPU modules?
The IC693MDL940H is compatible with the full range of Series 90-30 backplanes, including the 5-slot IC693CHS391 and 10-slot IC693CHS397, as well as the IC693CHS398 redundancy backplane. It operates with all Series 90-30 CPU modules, including the IC693CPU374 and IC693CPU364. No special configuration is required — the CPU automatically recognizes the module during the I/O configuration scan. For systems using the IC693CMM321 Genius Bus Controller for remote I/O, the module can also be deployed at remote drops with full CPU control.

Q2: What are the key considerations for installing the IC693MDL940H in high-inductive-load applications?
When switching inductive loads such as motor starters, solenoid valves, or relay coils, it is essential to install surge suppression devices (RC snubbers or MOVs) across the load terminals to protect relay contacts from voltage spikes generated during switching. The maximum inductive load current rating of 0.5A per point must be observed to prevent premature contact wear. For high-cycle applications, monitoring relay contact life through the CPU’s output image table and HMI diagnostics is recommended. ZYPLC’s warranty terms confirmed during quotation covers manufacturing defects, and our technical team can advise on load derating and contact protection strategies for specific applications.

Q3: How does ZYPLC’s warranty terms confirmed during quotation apply to the IC693MDL940H, and what support is available for long-term maintenance?
All IC693MDL940H units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, ZYPLC provides replacement units from availability subject to RFQ confirmation to minimize system downtime. For long-term maintenance planning, ZYPLC maintains inventory of Series 90-30 compatible modules, including CPUs, power supplies, I/O modules, and communications cards, enabling customers to source complete system spares from a single supplier. Our engineering support team is available to assist with system compatibility verification, installation guidance, and architecture design review.
