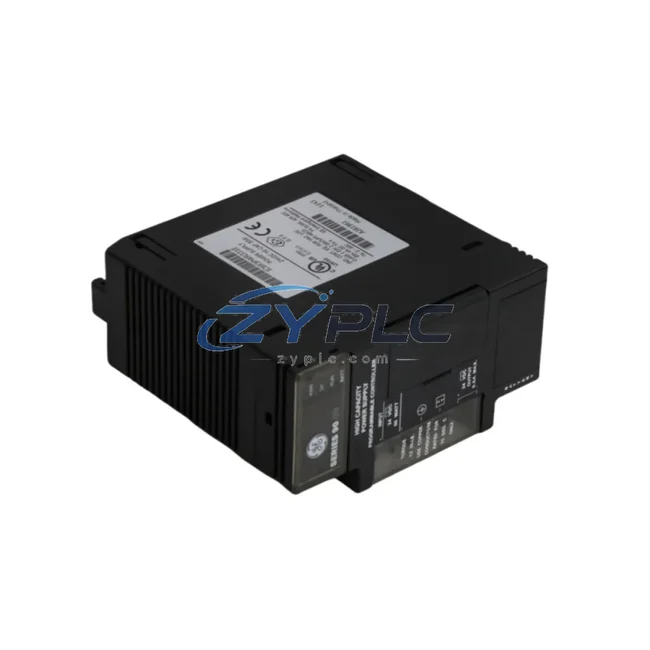

GE Fanuc IC693PWR331E Power Supply Module

GE Fanuc IC693PWR331E Power Supply Module: Precision Power Control for Series 90-30 Automation

The GE Fanuc IC693PWR331E is a high-efficiency power supply module engineered for the Series 90-30 PLC platform, delivering stable, regulated DC power to control racks while minimizing idle energy consumption and thermal losses. In modern manufacturing environments where energy cost accountability and equipment uptime are equally critical, the IC693PWR331E provides the foundational power stability that allows the entire automation architecture — from I/O modules to motion controllers — to operate at peak efficiency without voltage fluctuation-induced faults or unnecessary energy draw.

Unlike generic power supplies, the IC693PWR331E is factory-calibrated for the Series 90-30 backplane, ensuring that downstream modules such as the IC693MDL655 discrete output module, IC693ALG222 analog input module, and IC693CPU374 central processing unit receive clean, consistent power. This tight integration reduces the risk of spurious resets, communication timeouts on Ethernet or Genius bus networks, and premature component aging — all of which translate directly into lower maintenance costs and fewer unplanned production stoppages.

Product Specification Table

System Compatibility and Application

The IC693PWR331E does not operate in isolation — its efficiency gains are multiplied when it powers a well-designed Series 90-30 rack. In a typical discrete manufacturing cell, the CPU module IC693CPU374 executes ladder logic that governs motor start/stop sequences, coordinating with the IC693MDL654 24 VDC input module to read proximity sensor states and with the IC693MDL740 relay output module to actuate contactors. Each of these modules draws regulated 5 VDC from the IC693PWR331E backplane bus; a stable, low-ripple supply means the CPU’s scan cycle remains consistent, preventing the micro-delays that accumulate into measurable production line takt-time losses.

On the drive side, the IC693PWR331E-powered PLC rack typically interfaces with a GE AF-650GP variable frequency drive or a compatible third-party VFD via the IC693CMM321 communications module running Modbus RTU or Profibus DP. The VFD adjusts motor speed in real time based on PLC output commands, eliminating the fixed-speed motor losses that account for 20–30% of wasted energy in pump and fan applications. When the IC693ALG390 analog output module sends a 4–20 mA speed reference signal to the drive, the IC693PWR331E must supply clean, noise-free power to ensure the DAC output is accurate — even a 50 mV ripple on the 5 VDC rail can introduce a 0.5% speed error that compounds across a multi-motor system.

For condition monitoring, the Series 90-30 rack equipped with the IC693PWR331E can be paired with a power quality meter connected through the IC693CMM311 serial communications module. This allows the PLC to log real-time kWh consumption, power factor, and demand peaks directly into the historian, enabling the maintenance team to identify unplanned downtime patterns without installing a separate SCADA energy module. The IC693PWR331E’s own low idle-loss characteristic means the monitoring system itself does not add significant parasitic load to the panel.

In servo-driven applications, the IC693PWR331E rack may host the IC693DSM302 motion control module, which coordinates multi-axis positioning for assembly or packaging lines. Precise power delivery from the IC693PWR331E ensures the DSM302’s encoder feedback circuits and pulse output stages operate without ground noise interference, maintaining positioning accuracy and reducing the servo tuning iterations that waste engineering time during commissioning.

Maintenance and Replacement Notes

In automotive body welding lines, the IC693PWR331E powers Series 90-30 racks that control resistance welding timers, robot interface I/O, and conveyor indexing logic. By maintaining stable 5 VDC across all 16 I/O slots during peak inrush events — such as simultaneous activation of multiple solenoid valves — the power supply prevents the voltage sag that can cause the CPU to log false input transitions, which would otherwise trigger unnecessary fault routines and halt the line.

In water treatment facilities, the IC693PWR331E supports continuous-duty PLC racks running 24/7 pump control and dosing sequences. Its universal AC input (85–264 VAC) tolerates the voltage fluctuations common in utility-fed industrial sites, and its thermal shutdown protection prevents damage during summer peak-load periods when cabinet temperatures rise. Facilities report that replacing aging, inefficient power supplies with the IC693PWR331E reduces control panel heat output sufficiently to extend air conditioner duty cycles, lowering HVAC energy costs by an estimated 8–12% in sealed enclosures.

For food and beverage packaging lines, where production OEE (Overall Equipment Effectiveness) is tracked in real time, the IC693PWR331E’s reliable power delivery reduces the micro-stoppages caused by PLC watchdog resets. Each avoided reset saves approximately 30–90 seconds of line recovery time; across a three-shift operation, this can recover 15–45 minutes of productive capacity per day. Combined with predictive maintenance data collected through the PLC’s diagnostic registers, maintenance teams can schedule power supply inspections during planned downtime rather than reacting to failures.

All IC693PWR331E units supplied by ZYPLC are tested under load prior to shipment, with output voltage, ripple, and protection circuit verification recorded. Stock is maintained for shipment arranged after confirmation, supporting both emergency replacement and planned MRO procurement cycles. The warranty terms confirmed during quotation covers manufacturing defects and covers return shipping for confirmed failures, reducing the total cost of ownership for facilities managing large Series 90-30 installed bases.

Product Sourcing FAQ

Q1: How much energy can the IC693PWR331E save compared to an older Series 90-30 power supply?
The IC693PWR331E operates at ≥ 82% conversion efficiency at full load, compared to 70–75% typical for first-generation Series 90-30 supplies. In a 10-slot rack running at 25 W average load, this translates to approximately 3–4 W less heat dissipation per rack — meaningful in facilities with dozens of racks, where cumulative savings reduce cooling infrastructure load.

Q2: Is the IC693PWR331E compatible with all Series 90-30 backplane configurations?
Yes. The IC693PWR331E is designed for both 5-slot (IC693CHS391) and 10-slot (IC693CHS392) Series 90-30 backplanes. It is not compatible with Series 90-70 or PACSystems RX3i racks, which use different power supply form factors and bus voltages.

Q3: What is the recommended replacement procedure when swapping an existing power supply on a live system?
ZYPLC recommends a planned hot-swap during a scheduled maintenance window. Back up the CPU program via the IC693CPU374’s serial or Ethernet port before removal. Power down the rack, replace the IC693PWR331E, restore power, and verify all I/O module status LEDs are green before resuming production. The entire procedure typically takes under 15 minutes for a trained technician.

Q4: What does the warranty terms confirmed during quotation cover, and how is a warranty claim processed?
The warranty terms confirmed during quotation covers all manufacturing defects, including output voltage out-of-specification, failed protection circuits, and connector damage present at delivery. To initiate a claim, contact ZYPLC with the order number and a description of the fault. ZYPLC will issue a return authorization and, upon verification, ship a replacement unit within 3–5 business days. Units that fail due to incorrect installation voltage or physical damage from mishandling are not covered.
