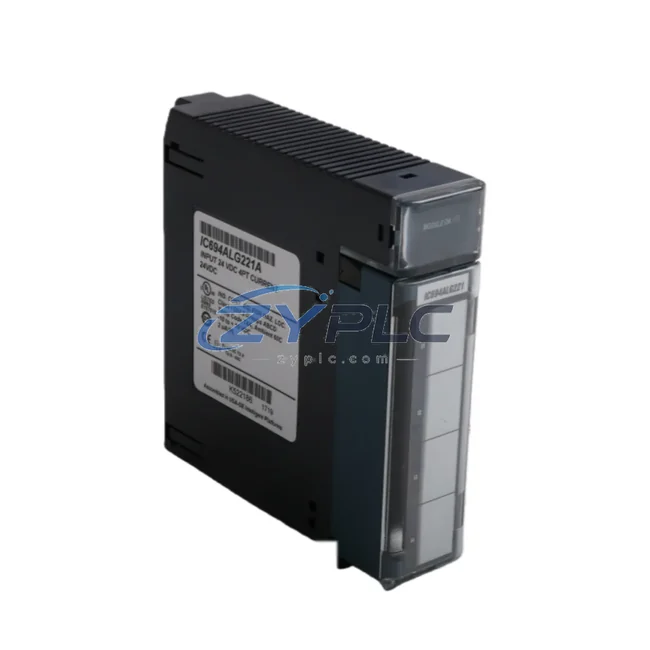

GE Fanuc IC694ALG221 Analog Input Module for Series 90-30 Systems

GE Fanuc IC694ALG221: Industrial Data Link for Series 90-30 Smart Factory Networks

The GE Fanuc IC694ALG221 is a high-performance 16-channel analog input module engineered for the GE Series 90-30 PLC platform. Designed to serve as a critical node in industrial data acquisition chains, the IC694ALG221 bridges the gap between field-level sensors and upper-layer control systems — enabling real-time signal collection, protocol-compliant data transmission, and seamless integration into modern SCADA and HMI environments. Whether deployed in discrete manufacturing, process control, or smart factory automation, this module delivers the analog input capacity and communication reliability that industrial networks demand.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully connected smart factory, the IC694ALG221 sits at the front end of the data acquisition chain. Field-level sensors — including pressure transmitters, temperature probes, flow meters, and level sensors — feed 4–20 mA or 0–10 VDC analog signals directly into the module’s 16 input channels. The IC694ALG221 digitizes these signals at 12-bit resolution and passes structured data across the GE Series 90-30 backplane to the host CPU module, such as the IC693CPU374 or IC694CPU310, which executes the control logic and manages upstream communication.

From the CPU, data flows upward through communication modules like the IC694CMM321 Ethernet interface or the IC693CMM311 serial communications module, enabling Modbus TCP/IP or SRTP-based data exchange with SCADA servers, historian platforms, and MES systems. Operators monitoring the line via GE Cimplicity HMI or third-party platforms such as Ignition SCADA receive live analog readings — temperature trends, pressure deviations, flow rates — with minimal latency, supporting real-time decision-making and alarm management.

For distributed control architectures, the IC694ALG221 integrates naturally alongside IC694MDL655 discrete output modules and IC694MDL340 discrete input modules within the same Series 90-30 rack, allowing mixed analog/digital I/O configurations without additional gateways. In larger installations, the rack can be extended using IC693CHS391 expansion chassis, scaling the I/O count while maintaining a unified backplane communication structure.

At the drive and actuator layer, analog output signals derived from IC694ALG221 readings can be routed through the CPU to control GE AF-600 FP variable frequency drives or third-party servo drives via analog command signals, closing the loop between sensor data and actuator response. Remote I/O nodes connected via IC693BEM331 bus expansion modules extend the network reach to remote panels and field junction boxes, ensuring that analog data from distant process points is captured and transmitted without signal degradation.

Edge gateways and protocol converters — such as those supporting Modbus-to-OPC-UA translation — can sit between the Series 90-30 network and cloud-based analytics platforms, enabling IIoT data pipelines that leverage IC694ALG221 analog inputs as primary data sources for predictive maintenance and energy monitoring applications.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is data isolation — analog signals trapped at the field level, unable to reach SCADA dashboards, ERP systems, or cloud analytics platforms due to protocol mismatches, aging communication infrastructure, or fragmented I/O architectures. The GE Fanuc IC694ALG221 directly addresses this challenge within the Series 90-30 ecosystem.

By consolidating 16 analog input channels into a single backplane-mounted module, the IC694ALG221 eliminates the need for multiple standalone signal conditioners or external A/D converters, reducing wiring complexity and potential points of failure. Its native compatibility with the Series 90-30 CPU and communication modules means that analog data is immediately available to the PLC’s control program and, by extension, to any upstream system connected via Modbus RTU, SRTP, or Ethernet.

For sites transitioning toward production line transparency, the IC694ALG221 enables operators to visualize analog process variables — flow, pressure, temperature, level — on HMI screens and SCADA dashboards in real time, replacing manual gauge readings with continuous digital monitoring. Alarm thresholds configured in the PLC program trigger immediate notifications to operators and maintenance teams, reducing response times and preventing unplanned downtime.

Remote diagnostics capabilities, enabled through the Series 90-30 Ethernet communication stack, allow engineering teams to interrogate analog input values, check module health, and adjust scaling parameters from remote workstations — without requiring physical access to the control panel. This is particularly valuable for geographically distributed facilities or unmanned substations where on-site intervention is costly and time-consuming.

System expansion is straightforward: additional IC694ALG221 modules can be added to existing Series 90-30 racks or expansion chassis as process requirements grow, providing a scalable analog input infrastructure that evolves with the facility without requiring a complete controls overhaul. All units shipped by ZYPLC undergo pre-shipment functional testing to verify channel accuracy, backplane communication integrity, and signal range compliance before dispatch.

Industrial Connectivity FAQ

Q1: What communication protocols does the IC694ALG221 support, and is it compatible with modern SCADA systems?
The IC694ALG221 communicates via the GE Series 90-30 backplane bus and supports upstream protocols including Modbus RTU and SRTP through compatible CPU and communication modules such as the IC694CMM321. It is fully compatible with SCADA platforms including GE Cimplicity, iFIX, Ignition, and WinCC when paired with the appropriate Ethernet or serial communication module.

Q2: How does the IC694ALG221 handle network stability and signal integrity in electrically noisy industrial environments?
The module is designed to GE’s industrial-grade specifications, incorporating differential input circuitry and hardware filtering to reject common-mode noise from variable frequency drives, contactors, and high-current switching equipment. The backplane communication interface provides deterministic, low-latency data transfer to the CPU, ensuring that analog readings are not corrupted by electrical interference on the plant floor.

Q3: Can the IC694ALG221 be integrated into an existing Series 90-30 system without replacing the CPU or communication modules?
Yes. The IC694ALG221 is a hot-swappable, backplane-compatible module that slots directly into any available I/O slot in a Series 90-30 main rack or expansion chassis. No CPU replacement is required. Configuration is performed through GE’s Proficy Machine Edition or legacy Logicmaster 90 software, and the module is recognized automatically upon rack power-up.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the IC694ALG221?
Every IC694ALG221 unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures. Prior to shipment, each module undergoes a functional test protocol that verifies all 16 analog input channels, backplane communication handshake, and signal range accuracy. Units that do not meet GE’s original performance specifications are quarantined and not dispatched. Availability is confirmed via RFQ for same-day or next-business-day dispatch with global shipping support.
