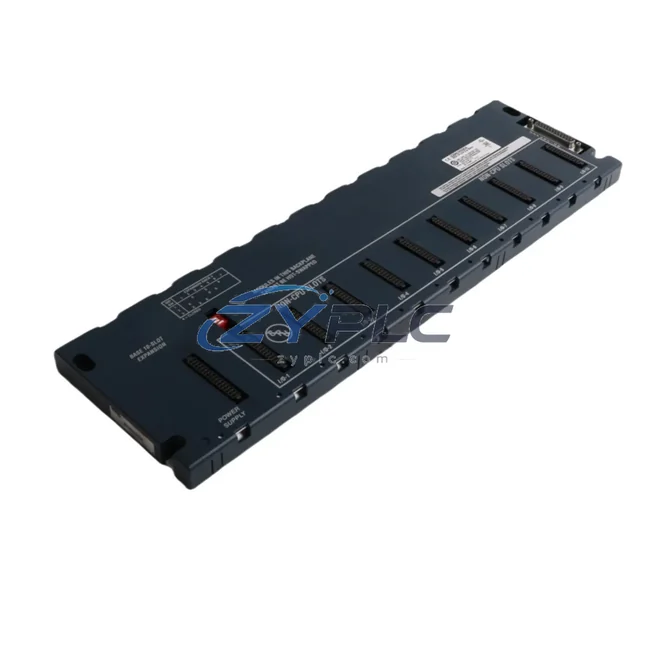

GE Fanuc IC694CHS392 Rack for RX3i PACSystems

GE Fanuc IC694CHS392 Rack for RX3i PACSystems: Compatibility and Replacement Notes

The GE Fanuc IC694CHS392 is a 12-slot universal baseplate engineered for the RX3i PACSystems control platform. Within a layered industrial automation architecture, the baseplate is not merely a passive mounting structure — it is the physical and electrical backbone that defines the system’s scalability, redundancy capacity, and long-term maintainability. Understanding the IC694CHS392 in the context of a complete control system reveals why baseplate selection is a foundational engineering decision that affects every layer of the automation hierarchy, from the CPU and power supply down to field-level I/O modules, communication gateways, and HMI integration.

In modern process and discrete manufacturing environments, the control rack must accommodate a growing number of functional modules without compromising signal integrity or communication throughput. The IC694CHS392 provides 12 module slots on the RX3i backplane bus, enabling engineers to populate a single rack with a combination of CPU modules, analog and digital I/O modules, communication interface modules, and specialty function modules — all sharing a high-speed backplane that supports deterministic data exchange. This architecture eliminates the latency and wiring complexity associated with distributed I/O solutions in applications where centralized control is preferred.

Product Specification Table

System Compatibility Notes

The IC694CHS392 baseplate is the integration point for all modules within the RX3i PACSystems rack. A typical coordinated system design begins with the power supply layer. The IC694PWR321 or IC694PWR331 power supply module occupies the leftmost slot of the rack, delivering regulated DC power to the backplane and all installed modules. Power supply selection must account for the aggregate current draw of all installed modules, particularly when high-density analog I/O modules or communication interface cards are present.

At the control layer, the IC694CPU310 or IC694CPU360 CPU module serves as the program execution engine, scanning the I/O table and executing ladder logic, function block diagrams, or structured text programs in accordance with IEC 61131-3 standards. For applications requiring higher processing throughput or expanded memory, the IC694CPU320 provides an enhanced alternative within the same rack form factor. The CPU communicates with all installed modules through the RX3i backplane, ensuring deterministic scan cycle performance regardless of the number of populated slots.

The I/O layer within the IC694CHS392 rack typically includes a combination of IC694MDL340 discrete input modules, IC694MDL740 discrete output modules, IC694ALG220 analog input modules, and IC694ALG390 analog output modules. These modules connect directly to field devices — sensors, actuators, transmitters, and control valves — and their data is continuously updated in the CPU’s I/O image table. The 12-slot capacity of the IC694CHS392 allows engineers to configure a fully populated rack with mixed I/O types without requiring an expansion chassis in many standard applications.

For systems requiring network connectivity, the IC694CMM321 Ethernet interface module or the IC694BEM321 Genius Bus Controller can be installed in any available slot of the IC694CHS392 rack. These communication modules enable the RX3i system to participate in plant-wide Ethernet networks, exchange data with SCADA systems, and communicate with remote I/O drops or peer controllers. In architectures where Profibus DP is the field network standard, the IC694PBM300 Profibus master module provides seamless integration with distributed field devices.

Redundancy design is a critical consideration in high-availability applications. The IC694CHS392 supports hot-standby CPU redundancy configurations when paired with a redundant CPU module and the appropriate redundancy synchronization module. In such configurations, two IC694CHS392 racks — each populated with identical CPU and I/O modules — operate in parallel, with the standby rack assuming control within milliseconds of a primary CPU fault. This architecture is particularly valuable in continuous process industries where unplanned downtime carries significant operational and safety consequences.

Industrial Application Notes

The IC694CHS392 baseplate finds application across a broad range of industrial sectors where the RX3i PACSystems platform is the established control standard.

In power generation and electrical utilities, the IC694CHS392 rack is deployed in turbine control panels, transformer protection systems, and substation automation cabinets. The baseplate’s robust backplane architecture supports the high-speed I/O scanning required for generator protection relay coordination and automatic voltage regulation loops. Integration with upstream maintenance planning systems is achieved through Ethernet-connected CPU modules that support DNP3 or IEC 61850 communication protocols via gateway modules.

In oil, gas, and petrochemical processing, the IC694CHS392 is used in wellhead control panels, compressor station automation systems, and pipeline SCADA outstations. The baseplate’s compatibility with intrinsically safe I/O modules and its support for redundant CPU configurations make it suitable for safety-instrumented system (SIS) adjacent applications where process integrity is paramount. Engineers specify the IC694CHS392 in these environments because its 12-slot capacity accommodates the full complement of analog process measurement inputs alongside discrete safety interlock outputs within a single rack.

In water and wastewater treatment, the IC694CHS392 supports pump station automation, chemical dosing control, and filtration process management. The baseplate’s Ethernet communication capability enables remote monitoring and control from centralized SCADA systems, reducing the need for on-site operator intervention. Long-term reliability in humid, chemically aggressive environments is supported by conformal coating options on compatible I/O modules.

In automotive and discrete manufacturing, the IC694CHS392 rack is integrated into assembly line control panels, robotic cell controllers, and conveyor management systems. The high-speed backplane supports the fast I/O response times required for servo drive coordination and vision system integration. The 12-slot capacity allows a single rack to manage multiple production zones, simplifying panel layout and reducing overall cabinet footprint.

In mining and metals processing, the IC694CHS392 is specified for crusher control systems, conveyor drive management, and ore processing automation. The baseplate’s compatibility with high-current discrete output modules supports the direct control of large motor starters and solenoid valve banks. Redundant power supply configurations, supported by the IC694CHS392 rack architecture, ensure continuous operation in environments where power quality may be inconsistent.

Product Compatibility FAQ

Q1: Is the IC694CHS392 compatible with both RX3i and Series 90-30 modules?
The IC694CHS392 is a universal baseplate designed for the RX3i PACSystems platform. It is backward compatible with GE Series 90-30 I/O modules (IC693 series) when those modules are installed in slots 1 through 12, provided the CPU module installed is an RX3i-compatible CPU such as the IC694CPU310 or IC694CPU360. Pure Series 90-30 CPU modules (IC693 series) are not compatible with the IC694CHS392 backplane. Engineers migrating from Series 90-30 to RX3i should verify module compatibility on a slot-by-slot basis before finalizing the rack configuration.

Q2: What are the installation and commissioning requirements for the IC694CHS392 in a redundant CPU architecture?
Deploying the IC694CHS392 in a hot-standby redundant configuration requires two identical rack assemblies, each populated with matching CPU modules, power supplies, and I/O modules. The redundancy synchronization module must be installed in a designated slot in each rack, and the two racks must be connected via a dedicated fiber-optic or copper redundancy link. During commissioning, the PACSystems programming software (Proficy Machine Edition) is used to configure the redundancy parameters, define the primary and secondary rack roles, and verify switchover timing. The warranty terms confirmed during quotation covers both racks in a redundant pair, provided both units are supplied by ZYPLC under the same purchase order.

Q3: How does the warranty terms confirmed during quotation apply to the IC694CHS392, and what does long-term maintenance planning look like for this baseplate?
The warranty terms confirmed during quotation provided by ZYPLC covers the IC694CHS392 against manufacturing defects and functional failures under normal operating conditions from the date of shipment. Warranty claims are processed through ZYPLC’s technical support team, and replacement units are dispatched from RFQ-confirmed sourcing to minimize system downtime. For long-term maintenance planning, engineers are advised to maintain at least one spare IC694CHS392 baseplate per installed system, particularly in applications where the rack operates continuously. The baseplate itself has no consumable components, but periodic inspection of backplane connector integrity and module seating is recommended as part of annual preventive maintenance routines. ZYPLC maintains ongoing stock of IC694CHS392 units to support long-term spare parts programs for customers with multi-site RX3i deployments.
