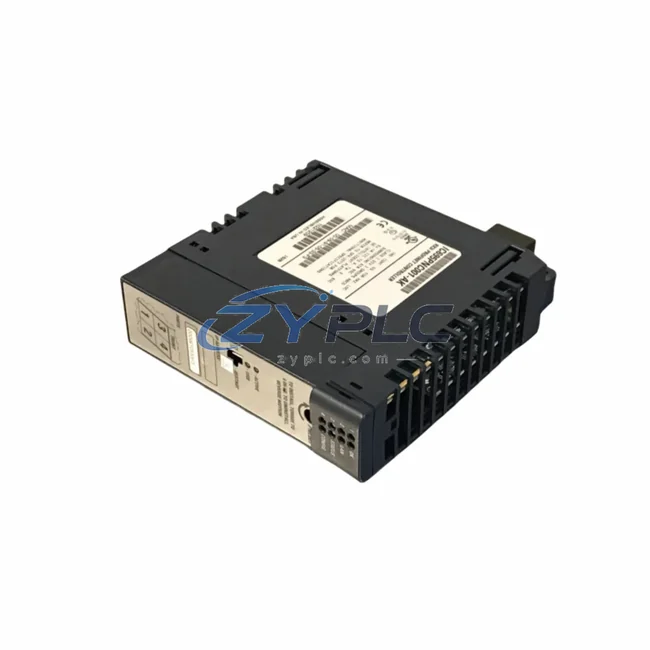

GE Fanuc IC695PNC001-AK PROFINET Controller RX3i

GE Fanuc IC695PNC001-AK PROFINET Controller for RX3i Automation

The GE Fanuc IC695PNC001-AK is a high-performance PROFINET Controller Module designed for the PACSystems RX3i platform. In modern industrial environments where energy costs and equipment downtime directly impact profitability, this controller plays a pivotal role in reducing unnecessary power consumption, tightening production cycle times, and enabling real-time visibility into drive and motor performance. Whether you are managing a discrete manufacturing line, a continuous process plant, or a hybrid automation architecture, the IC695PNC001-AK delivers the network intelligence needed to run leaner and smarter.

Sourced directly from verified supply channels, every IC695PNC001-AK unit available through ZYPLC undergoes full functional testing prior to shipment and is backed by a warranty terms confirmed during quotation, giving procurement and maintenance teams the confidence to deploy with minimal risk.

Product Specification Table

System Compatibility and Application

The IC695PNC001-AK does not operate in isolation — its true efficiency value emerges when it is integrated into a well-designed automation architecture. In a typical RX3i-based maintenance-focused system, the controller works in concert with the GE Fanuc IC695CPU310 or IC695CPL410 CPU modules, which handle the primary logic execution while the PNC001 manages all PROFINET IO communication independently, offloading network overhead from the main processor and reducing unnecessary CPU cycle consumption.

On the drive side, the IC695PNC001-AK connects seamlessly to PROFINET-capable variable frequency drives such as the Siemens SINAMICS G120 series or ABB ACS880 drives, enabling closed-loop speed and torque control that directly reduces motor unplanned downtime during partial-load operation. Rather than running motors at fixed speeds, the PROFINET feedback loop allows the RX3i system to dynamically adjust drive output based on real production demand — a critical factor in cutting energy costs on conveyor systems, pump stations, and compressor banks.

For servo motion applications, the IC695PNC001-AK can coordinate with GE Fanuc IC800SSI servo interface modules or third-party PROFINET servo drives, synchronizing multi-axis motion profiles to minimize acceleration energy spikes and improve overall line throughput without increasing power draw.

Power quality and condition monitoring are handled upstream by devices such as the GE Fanuc IC695ALG600 analog input module or dedicated energy meters connected via PROFINET IO, feeding real-time kWh, current, and power factor data back to the RX3i CPU. This data can then be used by the PACSystems logic to trigger load-shedding routines, shift non-critical processes to off-peak windows, or generate operating load reports for facility management.

On the field device layer, GE Fanuc IC694MDL754 discrete output modules and IC694ALG220 analog output modules serve as the execution endpoints, translating PLC commands into precise actuator signals. When these modules are managed through the IC695PNC001-AK’s PROFINET network rather than legacy fieldbus architectures, the reduction in wiring complexity and the improvement in signal determinism both contribute to lower maintenance overhead and faster fault recovery times.

For HMI and supervisory visibility, the RX3i system paired with the IC695PNC001-AK integrates naturally with GE iFIX SCADA or Proficy HMI/SCADA platforms via OPC-UA or direct Ethernet/IP bridging, giving operators a live dashboard of operating load per production zone, motor load trends, and alarm histories — all of which feed into a predictive maintenance strategy that reduces unplanned downtime.

Maintenance and Replacement Notes

In real-world deployments, the IC695PNC001-AK has demonstrated measurable impact on production line energy efficiency. On automotive assembly lines where multiple servo axes and conveyor drives operate in coordinated sequences, replacing a legacy DeviceNet or Modbus-based architecture with PROFINET IRT (Isochronous Real-Time) communication managed by the IC695PNC001-AK reduces jitter in motion synchronization. Tighter synchronization means shorter dwell times between operations, which translates directly into higher equipment utilization rates without increasing installed motor power.

In food and beverage processing plants, where pump and mixer motors frequently cycle on and off based on batch demand, the IC695PNC001-AK enables the RX3i CPU to implement demand-responsive control strategies. By monitoring flow sensor feedback through PROFINET IO devices and adjusting VFD setpoints in real time, facilities have reported reductions in motor idle-run time of 15–25%, with corresponding drops in monthly operating load.

For facilities managing multiple production cells, the IC695PNC001-AK supports network segmentation through its PROFINET IO device addressing scheme, allowing condition monitoring to be isolated per cell. Maintenance teams can identify which cell is consuming disproportionate power, schedule targeted inspections, and replace worn bearings or misaligned couplings before they escalate into full motor failures — a core pillar of predictive maintenance that extends mean time between failures (MTBF) and reduces spare parts inventory pressure.

Every IC695PNC001-AK shipped by ZYPLC is tested under simulated load conditions to verify PROFINET communication integrity, IO scan cycle performance, and backplane power draw before it leaves the warehouse. This pre-shipment validation process ensures that replacement units perform identically to factory-new modules, minimizing commissioning time and reducing the risk of introducing a faulty component into a live production environment.

Product Sourcing FAQ

Q1: How does the IC695PNC001-AK contribute to reducing factory operating load?
The IC695PNC001-AK enables deterministic PROFINET communication between the PACSystems RX3i CPU and field devices including VFDs, servo drives, and energy meters. By replacing fixed-speed or open-loop control with closed-loop, demand-responsive drive management, the system reduces motor idle energy, eliminates unnecessary actuator cycling, and supports load-shedding logic — all of which lower total facility operating load.

Q2: Is the IC695PNC001-AK compatible with third-party PROFINET devices and drives?
Yes. The IC695PNC001-AK is a standard PROFINET IO Controller compliant with the PROFINET specification, making it interoperable with any certified PROFINET IO device regardless of manufacturer. This includes drives from Siemens, ABB, Yaskawa, and Danfoss, as well as IO modules, sensors, and HMI panels from other vendors operating on the same PROFINET network segment.

Q3: Can the IC695PNC001-AK replace a failed PNC001 module without full system reconfiguration?
In most cases, yes. The IC695PNC001-AK is a direct form-fit-function replacement for earlier IC695PNC001 revisions. The PROFINET network configuration stored in the RX3i CPU project is retained, and after physical module swap and backplane re-seating, the system typically resumes normal operation following a CPU restart. ZYPLC recommends verifying firmware compatibility with your existing CPU revision prior to installation.

Q4: What does the warranty terms confirmed during quotation from ZYPLC cover, and what is the testing process?
Every IC695PNC001-AK sold by ZYPLC is subjected to a multi-stage functional test that includes PROFINET communication verification, backplane interface integrity check, and IO scan cycle performance validation under simulated load. The warranty terms confirmed during quotation covers module failure under normal operating conditions and includes replacement or repair support. For warranty claims or technical pre-sales questions, contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com.
