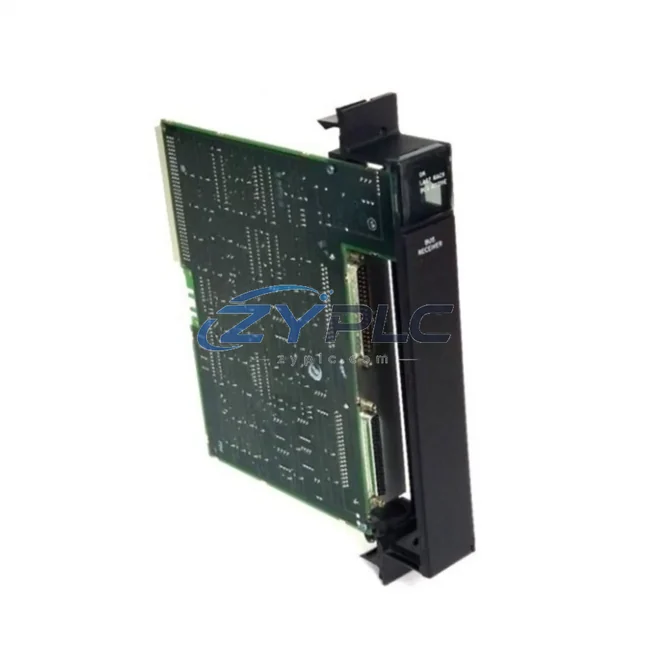

GE Fanuc IC697BEM711 Bus Receiver for Series 90-70

GE Fanuc IC697BEM711 Bus Receiver for Series 90-70

The GE Fanuc IC697BEM711 is a dedicated Bus Receiver Module engineered for deployment within the Series 90-70 programmable logic controller platform — one of the most widely adopted rack-based control architectures in heavy industrial automation. Rather than functioning as a standalone component, the IC697BEM711 is designed to serve as a critical node in a distributed I/O expansion topology, enabling the Series 90-70 CPU rack to communicate reliably with remote I/O racks across extended plant floor distances. Its role within the control hierarchy directly affects system scalability, signal integrity, redundancy capability, and long-term maintenance efficiency.

In a layered automation system, the IC697BEM711 occupies the I/O expansion layer — the structural tier that bridges the central processing unit with field-level devices. When a Series 90-70 system requires I/O capacity beyond what a single rack can accommodate, the IC697BEM711 works in tandem with a Bus Transmitter Module (such as the IC697BEM731) installed in the CPU rack. Together, these two modules form a matched bus extension pair that maintains the electrical and logical continuity of the backplane across physically separate rack enclosures. This architecture allows engineers to distribute I/O across multiple remote racks without sacrificing scan cycle determinism or communication reliability.

Product Specification Table

System Compatibility Notes

The IC697BEM711 achieves its full value only when evaluated within the context of a complete Series 90-70 control system architecture. At the processing core, a CPU module such as the IC697CPU772 or IC697CPU781 executes the control logic and manages all I/O scan cycles. The CPU communicates with local I/O modules — including analog input modules like the IC697ALG440 and discrete output modules like the IC697MDL940 — through the local VME backplane. When additional I/O capacity is required beyond the local rack, the IC697BEM731 Bus Transmitter Module is installed in the CPU rack to originate the bus extension signal, while the IC697BEM711 Bus Receiver Module is installed in each remote rack to receive and re-establish the backplane bus.

Power integrity across the distributed rack system is maintained by dedicated power supply modules such as the IC697PWR711 or IC697PWR724, each sized to support the current draw of the modules installed in their respective racks. In high-availability applications, redundant power supply configurations are employed to eliminate single points of failure at the power layer. The IC697BEM711 itself draws power from the rack backplane, making proper power supply sizing a prerequisite for stable bus extension operation.

At the network and communications layer, the Series 90-70 system may incorporate Ethernet interface modules such as the IC697CMM742 or Genius Bus Controller modules like the IC697BEM761 to connect the PLC to supervisory SCADA systems, distributed control networks, or field device networks. The IC697BEM711 operates independently of these network-layer modules but must coexist within the same rack environment, requiring careful slot assignment and power budget planning during system commissioning.

Human-machine interface integration is typically achieved through dedicated HMI terminals or SCADA workstations connected via the Ethernet or serial communication ports of the CPU module. The IC697BEM711 contributes to HMI responsiveness indirectly by ensuring that remote I/O data is delivered to the CPU with minimal latency and without bus errors, which in turn supports accurate real-time display of process variables on operator screens.

For terminal and wiring infrastructure, the remote racks housing the IC697BEM711 are typically equipped with terminal block assemblies and field wiring modules that connect to sensors, actuators, and field instruments. Proper grounding, cable shielding, and physical separation of signal and power cables are essential installation practices that protect the bus extension signal from electromagnetic interference in industrial environments.

Industrial Application Notes

The IC697BEM711 is deployed across a broad range of industrial sectors where the Series 90-70 platform has established a long operational history. In power generation and electrical substation automation, the module enables distributed I/O expansion across large switchgear rooms and transformer bays, where control cabinets may be separated by tens of meters. The deterministic bus extension architecture ensures that protection relay signals and breaker status inputs are scanned with consistent timing, supporting reliable fault detection and isolation logic.

In petrochemical and refinery process control applications, the IC697BEM711 supports the distribution of I/O across multiple field junction boxes and marshalling cabinets within hazardous area installations. The module’s compatibility with the Series 90-70 rack system allows engineers to maintain a unified control platform across the entire process unit, simplifying programming, diagnostics, and spare parts management. Long-term availability of the IC697BEM711 through specialist suppliers such as ZYPLC ensures that aging DCS and PLC systems can be maintained without forced platform migration.

Water and wastewater treatment facilities benefit from the IC697BEM711’s ability to extend I/O to remote pump stations, valve actuator panels, and flow measurement enclosures distributed across large treatment plant sites. The module’s robust operating temperature range and industrial-grade construction make it suitable for installation in outdoor or semi-outdoor control enclosures subject to wide ambient temperature variation.

In mining and minerals processing, the IC697BEM711 is used to connect remote I/O racks located at conveyor drive stations, crusher control panels, and flotation cell instrumentation enclosures to a central Series 90-70 CPU rack in the main control room. The bus extension architecture reduces the volume of individual signal cables running between the control room and field locations, lowering installation cost and improving cable management in complex plant environments.

Packaging and material handling automation systems also rely on the IC697BEM711 to distribute I/O across multi-zone conveyor lines, palletizing stations, and robotic cell interfaces. In these applications, the module supports rapid system reconfiguration and I/O expansion as production line layouts evolve, without requiring replacement of the central CPU or reprogramming of the core control logic.

Product Compatibility FAQ

Q1: Is the IC697BEM711 compatible with all Series 90-70 CPU modules, and are there any firmware or revision dependencies to consider during system integration?
The IC697BEM711 is designed for use with the full range of GE Fanuc Series 90-70 CPU modules, including the IC697CPU772, IC697CPU781, and IC697CPU788. Compatibility is determined primarily by the Series 90-70 rack and backplane architecture rather than by specific CPU firmware revisions. However, engineers integrating the IC697BEM711 into an existing system should verify that the paired IC697BEM731 Bus Transmitter Module is of a compatible hardware revision, as mismatched transmitter-receiver pairs can result in bus communication errors. ZYPLC provides pre-shipment functional verification for all IC697BEM711 units to confirm operational integrity prior to delivery.

Q2: How many IC697BEM711 modules can be installed in a single Series 90-70 distributed I/O architecture, and what are the practical limits on remote rack distance?
The Series 90-70 bus extension architecture supports up to seven remote expansion racks per CPU rack, with each remote rack requiring one IC697BEM711 Bus Receiver Module installed in a dedicated rack slot. The maximum cable distance between the CPU rack and the furthest remote rack is determined by the bus extension cable specifications defined by GE Fanuc, typically up to 15 meters using standard bus extension cables. For applications requiring greater distances, engineers should evaluate alternative communication architectures such as Genius Bus or Ethernet-based distributed I/O solutions using modules like the IC697BEM761 or IC697CMM742.

Q3: What does the warranty terms confirmed during quotation cover for the IC697BEM711, and how does ZYPLC support long-term maintenance and spare parts availability for Series 90-70 systems?
The warranty terms confirmed during quotation provided by ZYPLC covers the IC697BEM711 against defects in materials and workmanship under normal operating conditions for a period of twelve months from the date of shipment. In the event of a warranty claim, ZYPLC provides replacement or repair of the defective unit at no additional cost to the customer. Beyond the warranty period, ZYPLC maintains a dedicated inventory of Series 90-70 spare parts — including bus extension modules, CPU modules, power supplies, and I/O modules — to support long-term maintenance programs for installed systems. Customers can contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com to discuss spare parts availability, system audits, and planned maintenance supply agreements.
