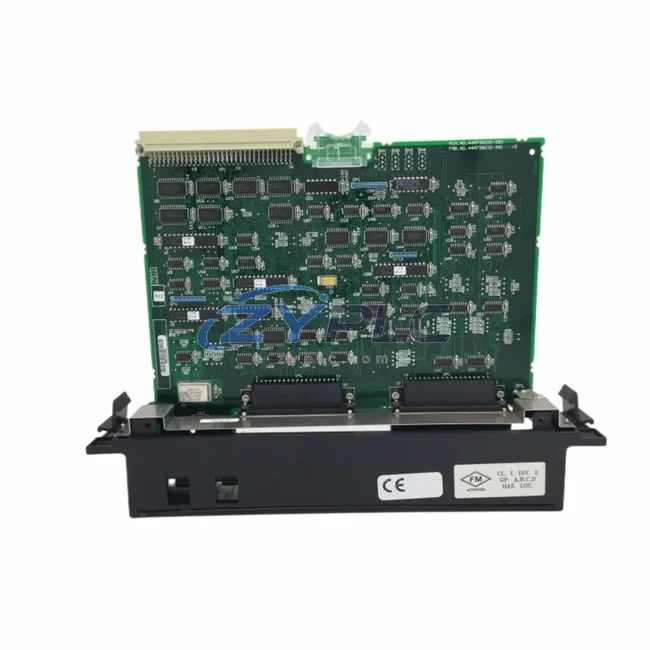

GE Fanuc IC697BEM711M PLC Module 90-70

GE Fanuc IC697BEM711M PLC Module for Series 90-70 Automation

The GE Fanuc IC697BEM711M is a high-efficiency Bus Expansion Receiver Module designed for the GE Series 90-70 PLC platform. In modern industrial environments where energy costs and equipment utilization directly impact profitability, the IC697BEM711M plays a critical role in maintaining lean, responsive, and power-conscious control architectures. By enabling seamless rack-to-rack communication across distributed I/O and control nodes, this module eliminates redundant signal processing overhead, reduces bus contention, and ensures that every watt consumed by the control system translates into productive machine output.

At ZYPLC, every IC697BEM711M unit is sourced from verified supply channels, subjected to full functional testing prior to shipment, and backed by a warranty terms confirmed during quotation. Stock is maintained on-hand for shipment arranged after confirmation, supporting urgent production line requirements without extended lead times.

Product Specification Table

System Compatibility and Application

The IC697BEM711M operates as the receiving end of a bus expansion link within the GE Series 90-70 control system. Its counterpart, the IC697BEM711 Bus Expansion Transmitter, initiates the inter-rack communication signal, while the IC697BEM711M receives and synchronizes data across the expanded chassis. Together, they allow the IC697CPU772 or IC697CPU781 central processing units to manage distributed I/O racks without incurring the latency and energy overhead of redundant scan cycles.

In a typical energy-optimized plant layout, the IC697BEM711M connects expansion racks housing modules such as the IC697MDL340 discrete input module and the IC697MDL341 discrete output module, enabling the CPU to execute tightly timed control loops across multiple physical locations. This distributed architecture reduces the need for additional standalone controllers, consolidating operating load into a single, well-managed PLC backbone.

For analog process control — such as monitoring motor load, temperature, or flow rate — the IC697ALG230 analog input module integrates directly into the same expansion rack managed by the IC697BEM711M. Real-time analog data feeds into the CPU for adaptive control decisions, allowing the system to modulate drive outputs and reduce energy draw during low-demand periods.

On the drive side, pairing the Series 90-70 system with a GE AF-600 FP variable frequency drive or compatible third-party VFD via the IC697CMM742 communications coprocessor enables closed-loop motor speed regulation. Rather than running motors at fixed full speed, the PLC dynamically adjusts drive frequency based on real production demand — a strategy that can help restore stable operation when a compatible replacement is required.

Power quality and consumption visibility are further enhanced when the Series 90-70 system interfaces with condition monitoring devices through the IC697CMM711 serial communications module, supporting Modbus RTU or ASCII protocols. This allows integration with power meters and maintenance planning systems, giving plant engineers granular insight into per-machine operating load without deploying separate monitoring infrastructure.

Maintenance and Replacement Notes

In discrete manufacturing environments — automotive assembly, food processing, packaging lines — the IC697BEM711M enables the Series 90-70 PLC to manage geographically distributed control points from a single CPU. This centralization is a key energy efficiency strategy: fewer controllers mean fewer power supplies, fewer cooling requirements, and a smaller overall electrical footprint.

When a production line enters a low-throughput period — shift changeover, scheduled maintenance window, or demand-driven slowdown — the CPU can issue coordinated commands across all expansion racks simultaneously via the bus expansion link. Actuators can be de-energized, conveyor drives can be ramped down through connected VFDs, and non-critical I/O polling intervals can be extended. None of this is possible without a reliable, low-latency bus expansion infrastructure that the IC697BEM711M provides.

Unplanned downtime is one of the largest hidden energy costs in industrial operations. A machine that stops unexpectedly and then restarts consumes significant inrush current and disrupts production rhythm. The IC697BEM711M’s robust backplane communication design minimizes bus errors and communication timeouts that can trigger false fault conditions. Combined with predictive maintenance data gathered through analog modules monitoring motor current signatures and vibration proxies, the Series 90-70 system can flag developing equipment issues before they cause unplanned stops — keeping the line running at its designed energy-per-unit-output ratio.

For facilities tracking OEE (Overall Equipment Effectiveness), the IC697BEM711M contributes directly to the Availability and Performance components. By ensuring that the control system’s communication backbone is reliable and low-latency, it supports faster cycle times, tighter synchronization between upstream and downstream processes, and reduced idle time between production batches. Every percentage point of OEE improvement translates into more output from the same energy input — the most sustainable form of efficiency gain.

All IC697BEM711M units supplied by ZYPLC are tested under operational conditions, confirming bus communication integrity, module recognition by the CPU, and correct rack addressing. Units are shipped with documentation and are eligible for the full warranty terms confirmed during quotation, covering defects in materials and workmanship under normal industrial operating conditions.

Product Sourcing FAQ

Q1: How does the IC697BEM711M contribute to operational stability in a Series 90-70 system?
By enabling distributed rack expansion from a single CPU, the IC697BEM711M eliminates the need for additional standalone controllers and their associated power supplies. Centralizing control reduces total system power draw and simplifies condition monitoring across the production line.

Q2: Is the IC697BEM711M compatible with all GE Series 90-70 racks and CPUs?
Yes. The IC697BEM711M is designed for use within the GE Series 90-70 PLC family and is compatible with standard 90-70 expansion chassis. It functions as the receiver module paired with a bus expansion transmitter module. Compatibility with specific CPU firmware versions should be verified against GE’s Series 90-70 hardware reference documentation.

Q3: Can this module be used as a direct replacement for a failed BEM unit without reprogramming?
In most cases, yes. The IC697BEM711M is a hardware module that does not store user program logic. Replacing a failed unit with a tested IC697BEM711M from ZYPLC typically restores bus communication without requiring changes to the CPU program, provided rack addressing and configuration remain unchanged. Always verify rack configuration settings after replacement.

Q4: What does the warranty terms confirmed during quotation from ZYPLC cover, and what is the testing process?
Every IC697BEM711M unit undergoes full functional testing at ZYPLC before shipment, verifying bus communication, module identification, and electrical integrity. The warranty terms confirmed during quotation covers defects in materials and workmanship under normal industrial use conditions. For warranty claims or technical support, contact ZYPLC directly at plc.sales@zyplc.com or +86 19859288691.
