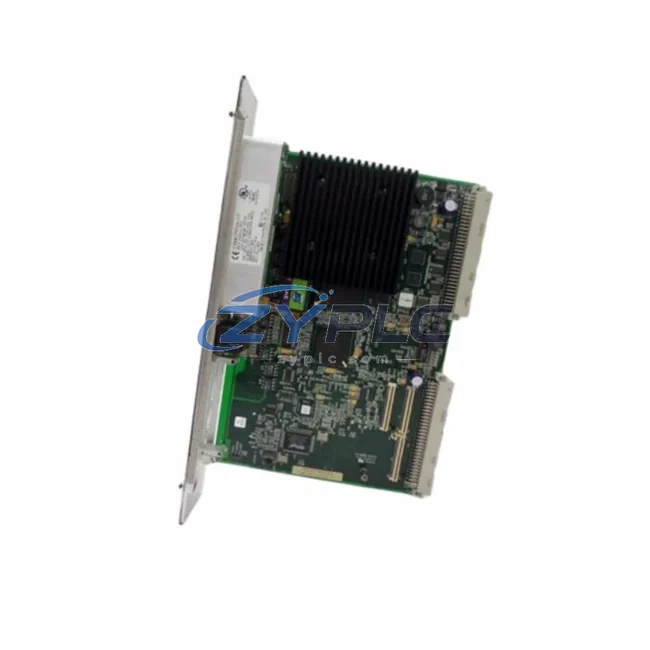

GE Fanuc IC698CPE020-JV CPU for Series 90-70

GE Fanuc IC698CPE020-JV CPU for Series 90-70: Compatibility and Replacement Notes

The GE Fanuc IC698CPE020-JV is a high-performance CPU module engineered for deployment within the Series 90-70 rack-based control platform. Rather than functioning as a standalone processor, this module is designed to serve as the central intelligence node within a layered automation architecture — coordinating signal acquisition, logic execution, network communication, and output actuation across every tier of the control system. Understanding its role within the full system hierarchy is essential for engineers tasked with designing, commissioning, or maintaining mission-critical industrial installations.

In a complete Series 90-70 control architecture, the IC698CPE020-JV occupies the CPU slot of the IC698CHS series rack — typically the IC698CHS017 or IC698CHS113 — and interfaces directly with the system backplane bus to orchestrate data exchange between I/O modules, communication processors, and power supply units. The CPU’s scan cycle governs the timing of all discrete and analog signal processing, making its configuration and firmware version critical to overall system determinism. Engineers integrating this module into new or retrofit installations must account for rack slot assignments, module compatibility matrices, and firmware alignment with existing GE Fanuc programming environments such as Proficy Machine Edition.

At the I/O layer, the IC698CPE020-JV communicates with a broad range of Series 90-70 I/O modules including the IC698MDL740 discrete output module, IC698MDL660 discrete input module, IC698ALG228 analog input module, and IC698ALG728 analog output module. These modules populate the same rack or remote expansion racks connected via the IC698BEM731 Bus Expansion Module, enabling distributed I/O architectures across large plant floor footprints. The CPU’s ability to manage both local and remote I/O through a unified program scan is a defining characteristic of the Series 90-70 platform’s scalability.

At the network and communications layer, the IC698CPE020-JV supports integration with Ethernet-based supervisory systems through companion communication modules such as the IC698ETM001 Ethernet Interface Module. This enables the CPU to participate in SRTP (Service Request Transfer Protocol) communications with SCADA platforms, historian servers, and remote HMI terminals. For legacy serial integration, the IC698CMM002 Communications Control Module provides RS-232 and RS-485 connectivity, supporting Modbus RTU and SNP protocols commonly required in power generation and water treatment applications.

The power layer of a Series 90-70 system relies on dedicated power supply modules such as the IC698PSA100 or IC698PSA350, which provide regulated DC power to the backplane and all installed modules. Proper power budget calculations — accounting for the IC698CPE020-JV’s own consumption alongside all populated I/O and communication modules — are essential during system design to prevent undervoltage conditions that could compromise CPU stability or trigger nuisance faults. Redundant power configurations using dual PSA modules are recommended for high-availability applications in oil and gas, chemical processing, and continuous manufacturing environments.

For human-machine interface integration, the IC698CPE020-JV communicates with GE Fanuc QuickPanel and Proficy HMI/SCADA platforms via Ethernet or serial links, enabling operators to monitor real-time process variables, acknowledge alarms, and execute manual overrides without interrupting the CPU’s scan cycle. This tight HMI-CPU coupling is particularly valuable in packaging lines and material handling systems where operator intervention must be logged and time-stamped for traceability compliance.

Redundancy architectures built around the Series 90-70 platform can incorporate the IC698CRE020 CPU Redundancy Module alongside the IC698CPE020-JV to achieve hot-standby failover. In such configurations, the primary and secondary CPUs maintain synchronized memory images, and the redundancy module manages automatic switchover in the event of a primary CPU fault — typically within one scan cycle. This architecture is widely adopted in power distribution substations, water treatment facilities, and petrochemical plants where unplanned downtime carries significant operational and safety consequences.

From a maintenance and lifecycle perspective, the IC698CPE020-JV benefits from GE Fanuc’s well-documented diagnostic framework. The CPU’s front-panel LED indicators provide immediate fault status, while the Proficy Machine Edition diagnostic tools enable remote fault log retrieval, memory utilization analysis, and online program monitoring without interrupting production. Spare module inventory strategies for the IC698CPE020-JV should account for lead times associated with legacy hardware procurement, making pre-qualified, tested replacement units from specialist industrial suppliers a prudent investment for facilities operating Series 90-70 systems beyond their original design life.

ZYPLC maintains availability subject to RFQ confirmation of the IC698CPE020-JV with full functional testing, warranty terms confirmed during quotation coverage, and rapid dispatch capability to support both planned maintenance schedules and emergency replacement scenarios across global industrial installations.

Product Specification Table

System Compatibility Notes

The IC698CPE020-JV achieves its full operational potential when deployed within a coordinated Series 90-70 system architecture. A typical high-availability installation integrates the following components in a unified control strategy:

The IC698CHS017 17-slot rack provides the physical backplane for module population, with the CPU occupying slot 0 and remaining slots allocated to I/O, communications, and specialty modules. The IC698PSA350 power supply delivers sufficient current headroom for fully populated racks, while a secondary PSA unit in a redundant power configuration eliminates single-point-of-failure risk at the power layer. The IC698ETM001 Ethernet TCP/IP module connects the CPU to plant-level Ethernet networks, enabling SCADA integration and remote diagnostics without dedicated serial infrastructure.

At the I/O layer, IC698MDL740 32-point discrete output modules and IC698MDL660 32-point discrete input modules handle high-density digital signal processing for motor control, valve actuation, and limit switch monitoring. Analog process variables — temperature, pressure, flow — are managed through IC698ALG228 analog input and IC698ALG728 analog output modules, providing 4–20mA and 0–10V signal compatibility with field instrumentation. Remote I/O expansion is achieved via the IC698BEM731 Bus Expansion Module, extending the system’s I/O capacity to remote rack locations without additional CPU resources.

For redundancy-critical applications, the IC698CRE020 CPU Redundancy Module pairs with the IC698CPE020-JV to implement hot-standby failover, ensuring continuous process control during primary CPU maintenance or fault events. The IC698CMM002 Communications Control Module provides legacy serial connectivity for field devices operating on Modbus RTU or SNP protocols, maintaining backward compatibility with existing instrumentation infrastructure.

Industrial Application Notes

The IC698CPE020-JV is deployed across a wide spectrum of industrial automation sectors where system reliability, architectural consistency, and long-term maintainability are non-negotiable requirements.

In power generation and distribution facilities, the CPU manages turbine control sequences, generator synchronization logic, and protection relay coordination within Series 90-70 rack systems installed in substation control rooms. Its deterministic scan cycle and redundancy capability make it suitable for applications where control system failure carries grid-level consequences.

In petrochemical and refinery environments, the IC698CPE020-JV controls distillation column sequencing, pump station automation, and emergency shutdown logic. Its compatibility with HART-enabled analog modules and Modbus-connected field transmitters enables seamless integration with existing DCS and SIS infrastructure.

In water and wastewater treatment plants, the CPU orchestrates pump scheduling, chemical dosing control, and SCADA-linked alarm management across distributed rack architectures spanning multiple treatment stages. The hot-standby redundancy option is frequently specified for primary pumping stations where uninterrupted operation is mandated by regulatory requirements.

In mining and metallurgical operations, the IC698CPE020-JV manages conveyor drive sequencing, crusher control, and ore processing automation in environments characterized by high vibration, dust ingress, and wide temperature variation — conditions the Series 90-70 platform is specifically rated to withstand.

In packaging and discrete manufacturing lines, the CPU coordinates multi-axis motion sequences, vision system triggers, and reject gate actuation with the scan-cycle precision required for high-throughput production environments. Its integration with GE Fanuc HMI platforms enables real-time OEE monitoring and production count reporting at the operator station level.

Product Compatibility FAQ

Q1: Is the IC698CPE020-JV compatible with all Series 90-70 rack configurations, and can it be used in a mixed-module environment alongside newer GE Fanuc I/O modules?

Yes. The IC698CPE020-JV is designed for full compatibility with the Series 90-70 backplane architecture, including IC698CHS017 and IC698CHS113 racks. It supports mixed-module configurations combining legacy and current-generation I/O modules, provided that firmware versions are aligned and module compatibility is verified against the GE Fanuc Series 90-70 Hardware Reference Manual. ZYPLC recommends firmware verification prior to installation in mixed-generation systems to ensure scan cycle integrity and diagnostic accuracy.

Q2: What is the recommended approach for integrating the IC698CPE020-JV into an existing SCADA or DCS architecture, and which communication protocols are supported for supervisory connectivity?

The IC698CPE020-JV supports supervisory integration via SRTP over Ethernet (using the IC698ETM001 module) and SNP/Modbus RTU over serial (using the IC698CMM002 module). For modern SCADA platforms, Ethernet-based SRTP is the preferred integration path, enabling high-speed data exchange with Proficy HMI/SCADA, Wonderware, and third-party OPC-DA/OPC-UA gateway servers. Serial integration remains viable for legacy DCS environments. ZYPLC provides pre-shipment communication verification testing to confirm protocol functionality before deployment.

Q3: What does the warranty terms confirmed during quotation cover for the IC698CPE020-JV, and what support is available for long-term maintenance of Series 90-70 systems?

ZYPLC’s warranty terms confirmed during quotation covers functional defects identified under normal operating conditions, including CPU processing failures, communication port malfunctions, and backplane interface faults. Each IC698CPE020-JV unit undergoes full functional testing prior to dispatch. For long-term Series 90-70 maintenance programs, ZYPLC offers spare module reservation, priority dispatch for emergency replacements, and technical consultation on system architecture upgrades. Contact our engineering team at plc.sales@zyplc.com or +86 19859288691 for lifecycle support planning.
