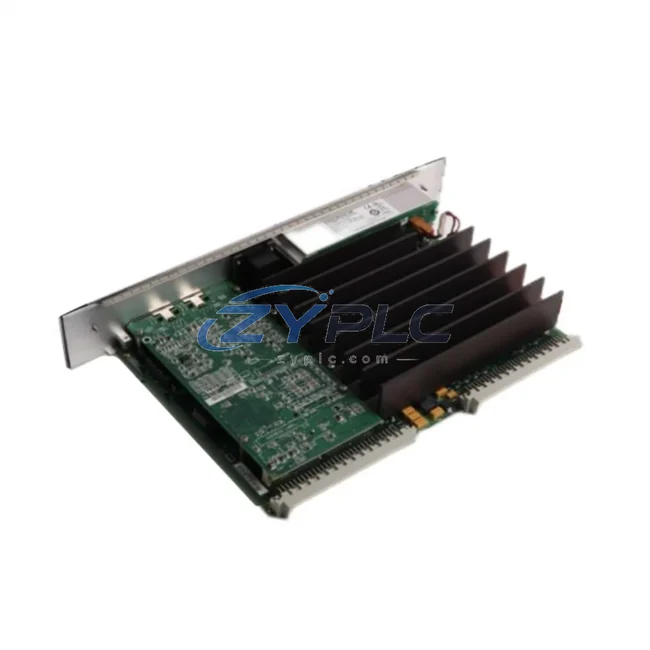

GE Fanuc IC698CRE030 CPU Redundancy for Series 90-70

GE Fanuc IC698CRE030 CPU Redundancy for Series 90-70

The GE Fanuc IC698CRE030 is a dedicated CPU Redundancy Module engineered for deployment within the Series 90-70 programmable logic controller platform. In modern industrial automation, system reliability is not a feature — it is a foundational requirement. The IC698CRE030 addresses this requirement by enabling a hot-standby redundancy architecture that ensures continuous process control even in the event of a primary CPU failure. Designed for integration across control, I/O, network, power, HMI, and execution layers, this module is a cornerstone component for engineers building fault-tolerant automation systems in demanding industrial environments.

Unlike standalone modules evaluated in isolation, the IC698CRE030 derives its full value from its position within a coordinated control system architecture. It operates in tandem with the primary CPU — typically the IC698CPE030 or IC698CPE040 — synchronizing logic states, memory maps, and I/O scan data in real time. When a switchover event occurs, the transition is seamless and transparent to the field devices, the SCADA layer, and the operator interface. This level of architectural continuity is essential in processes where even a momentary interruption carries significant operational or safety consequences.

Product Specification Table

System Compatibility Notes

The IC698CRE030 is not a standalone solution — it is an architectural enabler. Its integration into a Series 90-70 system requires careful coordination across multiple hardware layers to achieve the redundancy and system consistency that mission-critical applications demand.

At the control layer, the IC698CRE030 pairs directly with the primary CPU module, such as the IC698CPE030 or IC698CPE040, forming a synchronized CPU pair. The redundancy module continuously monitors the primary CPU’s health and logic execution state, maintaining a real-time shadow copy of the control program and I/O data table. This synchronization is maintained over a dedicated redundancy link cable — typically the IC698CBL001 or IC698CBL002 — which provides a high-speed, low-latency communication path between the primary and secondary CPU chassis.

At the power layer, redundant power supplies such as the IC698PSA100 and IC698PSA350 are deployed in parallel to eliminate the power supply as a single point of failure. These units are mounted within the Series 90-70 rack — commonly the IC697CHS750 or IC697CHS782 — and provide stable 5 VDC and 24 VDC backplane power to all installed modules, including the IC698CRE030 itself.

At the I/O layer, distributed I/O modules such as the IC697MDL340 (discrete input) and IC697MDL940 (discrete output) are connected via the Series 90-70 I/O bus. In a redundant architecture, I/O modules are typically shared between the primary and secondary CPU chassis, ensuring that field signals remain accessible regardless of which CPU is in control. Analog I/O modules such as the IC697ALG320 provide process variable feedback to the control layer, enabling closed-loop regulation to continue uninterrupted through a CPU switchover event.

At the network and communications layer, modules such as the IC698ETM001 Ethernet TCP/IP module provide connectivity to the plant network, SCADA systems, and engineering workstations. In a redundant system, network communication is maintained through the active CPU, with the standby CPU ready to assume network responsibilities immediately upon switchover. This ensures that historian data, alarm management, and remote monitoring functions are not interrupted.

At the HMI layer, operator interface terminals connected via Ethernet or serial links to the Series 90-70 CPU continue to display real-time process data without interruption. The seamless switchover capability of the IC698CRE030 means that operators are not required to take any manual action during a CPU failover event, preserving situational awareness and operational continuity.

All components in this architecture benefit from the same warranty terms confirmed during quotation and system integration support provided with the IC698CRE030, ensuring that the entire system is backed by consistent quality assurance and supply chain reliability.

Industrial Application Notes

The IC698CRE030 finds its most critical applications in industries where process continuity is non-negotiable. In electric power generation and distribution, the module is deployed in turbine control systems, substation automation, and grid protection relay coordination panels, where a CPU failure could result in uncontrolled load shedding or equipment damage. The hot-standby architecture ensures that protection logic remains active at all times.

In petrochemical and refinery operations, the IC698CRE030 is integrated into reactor temperature control, distillation column management, and emergency shutdown (ESD) systems. The redundancy architecture satisfies the requirements of IEC 61511 functional safety standards, providing the fault tolerance necessary for SIL-rated process control applications.

In water and wastewater treatment, the module controls pump sequencing, chemical dosing, and filtration processes across geographically distributed treatment facilities. The ability to maintain control continuity during a CPU failure prevents overflow events, chemical imbalances, and regulatory compliance violations.

In mining and metallurgical processing, the IC698CRE030 is used in conveyor control systems, crusher automation, and smelter process control, where unplanned downtime translates directly into lost production and equipment wear. The redundancy architecture minimizes mean time to recovery (MTTR) and maximizes overall equipment effectiveness (OEE).

In packaging and discrete manufacturing, the module supports high-speed production line control where CPU switchover must occur within milliseconds to prevent product defects, line jams, or safety incidents. The IC698CRE030’s synchronization speed ensures that production throughput is maintained even during a failover event.

Product Compatibility FAQ

Q1: Is the IC698CRE030 compatible with all Series 90-70 CPU modules, and what firmware version is required?
The IC698CRE030 is designed for use with Series 90-70 CPU modules that support the redundancy architecture, including the IC698CPE030 and IC698CPE040. CPU firmware revision 9.x or above is required to enable the redundancy synchronization protocol. It is strongly recommended to verify firmware compatibility using GE Fanuc’s Series 90-70 CPU Redundancy User’s Manual prior to system commissioning. Our team can assist with firmware verification as part of the pre-shipment testing process covered under the warranty terms confirmed during quotation.

Q2: Can the IC698CRE030 be installed in an existing Series 90-70 system without a full system redesign?
Yes. The IC698CRE030 is designed for integration into existing Series 90-70 rack configurations without requiring a complete system redesign. The module occupies a standard rack slot and communicates with the primary CPU via the backplane bus and the dedicated redundancy link cable. However, adding CPU redundancy to an existing system does require a secondary CPU chassis, a matched CPU module, and the appropriate redundancy link cables. Our engineering support team can provide a system integration assessment to determine the specific hardware additions required for your existing architecture, all covered under the standard warranty terms confirmed during quotation policy.

Q3: What is the switchover time of the IC698CRE030, and how does it affect field device communication during a failover event?
The IC698CRE030 achieves CPU switchover in less than one PLC scan cycle under normal operating conditions, which typically corresponds to switchover times in the range of 5 to 50 milliseconds depending on the configured scan rate. Field devices connected via the Series 90-70 I/O bus experience no loss of output state during switchover, as the secondary CPU maintains a synchronized copy of the I/O data table at all times. Network-connected devices, including SCADA systems and HMI terminals, may experience a brief communication interruption during the switchover event, but normal communication is restored within one to two scan cycles. This performance characteristic makes the IC698CRE030 suitable for all but the most time-critical motion control applications.
