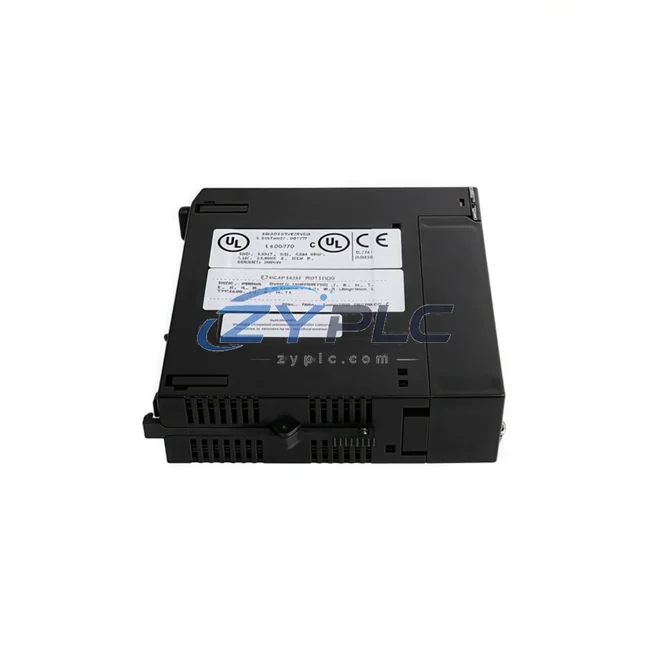

GE HE693DNT250 DeviceNet Communication Gateway: Industrial Data Link for Series 90-70 Smart Factory Networks

The GE HE693DNT250 is a high-performance DeviceNet Scanner Module engineered for GE Series 90-70 PLC systems, delivering robust industrial network connectivity across complex automation environments. As a dedicated communication gateway, the HE693DNT250 bridges field-level devices — including sensors, actuators, variable frequency drives, and remote I/O nodes — with the Series 90-70 CPU backplane, enabling seamless real-time data exchange across the DeviceNet fieldbus. Designed for demanding smart factory deployments, this module supports deterministic network communication, low-latency I/O scanning, and reliable protocol conversion that eliminates data silos between operational technology (OT) layers.

In modern industrial sites where production transparency and uptime are non-negotiable, the HE693DNT250 serves as the critical data conduit between field instrumentation and upper-level control systems. Whether integrating with SCADA platforms, HMI terminals, or MES architectures, this DeviceNet scanner ensures that every signal — from a proximity sensor on the production line to a torque reading from a servo drive — is accurately captured, transmitted, and made available for real-time monitoring and remote diagnostics.

Compatibility & Integration Notes

Connected Automation Data Flow

The HE693DNT250 sits at the heart of a layered industrial communication architecture. At the field level, DeviceNet-compatible devices — such as Allen-Bradley 1769-SDN Scanner Modules, Turck BL20 remote I/O gateways, Pepperl+Fuchs DeviceNet sensors, and Danfoss VLT series variable frequency drives — connect directly to the DeviceNet trunk line managed by the HE693DNT250 scanner. The module continuously polls each node on the network, collecting I/O status, drive feedback, and sensor readings at configurable scan rates.

Within the Series 90-70 backplane, the HE693DNT250 communicates with the CPU module — such as the GE IC697CPU772 or IC697CPU781 — transferring mapped I/O data into the PLC’s reference memory tables. This data is then processed by ladder logic programs running on the CPU, enabling closed-loop control decisions based on live field conditions. Simultaneously, the GE IC697CMM742 Ethernet Interface Module or IC697CMM711 Serial Communications Module can relay aggregated process data upstream to SCADA servers running platforms such as GE iFIX, Wonderware System Platform, or Ignition by Inductive Automation.

At the HMI layer, operator terminals — including GE QuickPanel+ displays or third-party Weintek and Proface HMI panels — receive real-time process variables via the PLC’s data registers, providing operators with live visualization of DeviceNet node status, drive speed references, and I/O health indicators. For remote diagnostics, the network topology supports integration with edge gateway devices such as the Moxa MGate MB3170 or Advantech ADAM-6717, which can tunnel DeviceNet diagnostic data over Ethernet/IP to cloud-based monitoring dashboards.

Power distribution for the DeviceNet segment is typically managed through a dedicated 24VDC bus, often sourced from Phoenix Contact QUINT-PS or Siemens SITOP PSU100S power supplies, ensuring stable network voltage across all connected nodes. The HE693DNT250’s onboard diagnostics continuously monitor network health, flagging bus-off conditions, node timeouts, and communication errors directly in the PLC fault table — enabling maintenance teams to isolate faults without physical site visits.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and hybrid industrial environments is protocol fragmentation — where field devices, PLCs, drives, and SCADA systems speak different communication languages, creating data islands that prevent unified production visibility. The GE HE693DNT250 directly addresses this by acting as the authoritative DeviceNet master on the fieldbus, consolidating I/O data from up to 64 heterogeneous DeviceNet nodes into a single, coherent data map within the Series 90-70 CPU.

For facilities running mixed automation architectures — where GE Series 90-70 PLCs coexist with newer Ethernet/IP-based controllers or legacy Modbus RTU devices — the HE693DNT250 provides a stable DeviceNet backbone that can be bridged to higher-level networks through protocol converter gateways. This eliminates the need for costly full-system replacements, allowing manufacturers to extend the operational life of existing Series 90-70 infrastructure while progressively integrating IIoT-ready components.

Remote monitoring capabilities are significantly enhanced when the HE693DNT250 is deployed alongside Ethernet-capable modules in the Series 90-70 rack. SCADA operators gain the ability to query DeviceNet node diagnostics, monitor network traffic statistics, and receive alarm notifications for node failures — all without dispatching field technicians. This remote diagnostic capability is particularly valuable in geographically distributed plants, offshore installations, and facilities operating under reduced maintenance staffing models.

Production line transparency is further improved through the module’s support for explicit messaging, which allows the PLC CPU to read device-level parameters — such as drive fault codes, encoder positions, and valve actuator states — on demand. This data can be logged to historian databases, enabling trend analysis, predictive maintenance scheduling, and OEE (Overall Equipment Effectiveness) reporting at the enterprise level.

Every HE693DNT250 unit supplied by ZYPLC undergoes pre-shipment functional testing, verifying DeviceNet communication integrity, backplane interface continuity, and module self-diagnostics prior to dispatch. Units are shipped with a warranty terms confirmed during quotation, covering manufacturing defects and communication failures under normal operating conditions. Inventory is maintained availability confirmed by RFQ for immediate fulfillment, supporting urgent MRO (Maintenance, Repair & Operations) requirements and planned capital projects alike.

Industrial Connectivity FAQ

Q1: What is the maximum DeviceNet network size supported by the HE693DNT250?
The HE693DNT250 supports up to 64 nodes per DeviceNet segment, including the scanner itself as node 0. Network length depends on the selected baud rate: up to 500 meters at 125 Kbps, 250 meters at 250 Kbps, and 100 meters at 500 Kbps, using standard DeviceNet trunk and drop cable configurations.

Q2: Is the HE693DNT250 compatible with all DeviceNet-certified devices, regardless of manufacturer?
Yes. The HE693DNT250 complies with the ODVA DeviceNet specification, ensuring interoperability with any ODVA-certified DeviceNet device — including drives, sensors, remote I/O blocks, and valve manifolds from third-party manufacturers. Device configuration is managed through Electronic Data Sheet (EDS) files loaded into the GE Proficy Machine Edition programming environment.

Q3: How does the HE693DNT250 handle network faults and communication errors?
The module features onboard diagnostic registers that log network errors, node timeouts, and bus-off events directly into the Series 90-70 PLC fault table. These diagnostics are accessible via the PLC programming software and can be mapped to SCADA alarm systems for real-time fault notification. The module automatically attempts network recovery after transient faults, minimizing unplanned downtime.

Q4: What warranty and testing standards apply to HE693DNT250 units supplied by ZYPLC?
All HE693DNT250 units are covered by a warranty terms confirmed during quotation from the date of shipment. Each unit undergoes pre-shipment functional testing — including DeviceNet communication verification and backplane interface checks — before dispatch. ZYPLC maintains RFQ-confirmed sourcing for rapid fulfillment, and our technical team provides post-sale support for integration and commissioning queries.
