GE IC200ALG266F Industrial Network Interface for VersaMax Systems

GE IC200ALG266F: Industrial Data Link Interface for VersaMax Smart Factory Networks

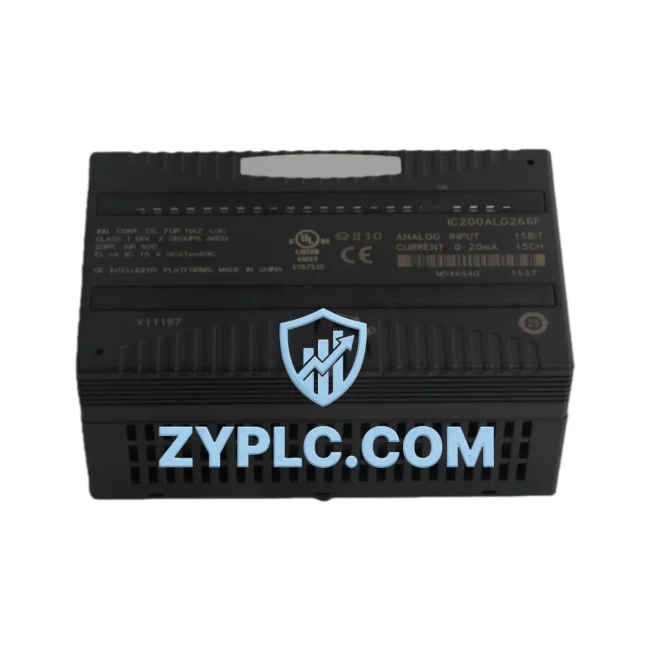

The GE IC200ALG266F is a high-density analog input module engineered for the GE VersaMax distributed I/O platform, delivering precision signal acquisition and seamless data integration across industrial automation networks. Designed to bridge the gap between field-level sensors and upper-level control systems, the IC200ALG266F plays a critical role in the real-time data chain that connects physical processes to SCADA, HMI, and MES platforms in modern smart factories.

With support for multiple analog input signal types — including 4–20 mA current loops and 0–10 V voltage signals — this module captures process variables from transmitters, flow meters, pressure sensors, and temperature transducers with high resolution and low latency. Its data is transmitted over the VersaMax I/O bus to the host PLC controller, enabling deterministic, cycle-accurate process monitoring that forms the backbone of any industrial connectivity architecture.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the IC200ALG266F sits at the front end of the data acquisition chain. Field instruments — such as Yokogawa EJA110E differential pressure transmitters, Endress+Hauser Promag electromagnetic flow meters, and Pt100 RTD temperature sensors — feed analog signals directly into the module’s 16 differential input channels. The module digitizes these signals at 15-bit resolution and passes structured process data onto the VersaMax I/O bus.

The VersaMax Network Interface Unit (NIU), such as the IC200PBI001 Profibus DP NIU or the IC200ETM001 Ethernet TCP/IP module, acts as the gateway between the distributed I/O station and the host controller. In Profibus DP architectures, the NIU communicates with a GE Series 90-30 PLC — for example, a IC693CPU374 CPU module — or a PACSystems RX3i controller such as the IC695CPE330, which aggregates all analog data and executes the control logic in real time.

For Ethernet-based architectures, the IC200ALG266F data flows through an IC200ETM001 Ethernet module to a managed industrial switch — such as a Moxa EDS-510A or Hirschmann RS20 — and then upstream to a SCADA server running GE iFIX, Wonderware InTouch, or Ignition by Inductive Automation. HMI panels, such as the GE QuickPanel+ IC754VSI15CTD, subscribe to real-time analog tags from the SCADA historian, enabling operators to monitor process trends, set alarm thresholds, and initiate remote diagnostics without leaving the control room.

In drive and motion control applications, the analog outputs from variable frequency drives — such as ABB ACS880 or Siemens SINAMICS G120 — are looped back into the IC200ALG266F for closed-loop speed and torque monitoring. This creates a complete feedback path from the drive output to the PLC controller, enabling adaptive process control and predictive maintenance triggers based on real-time current and voltage signatures.

Edge computing nodes, such as the GE MDS SD9 industrial router or a Moxa UC-8112 edge gateway, can tap into the SCADA data stream to run local analytics, compress historical data, and forward alarm events to cloud-based MES or ERP platforms via MQTT or OPC-UA — completing the IIoT data chain from sensor to enterprise.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is data isolation — where field devices, PLCs, and upper-level systems operate in silos, unable to share process data in real time. The GE IC200ALG266F, deployed within the VersaMax distributed I/O architecture, directly addresses this problem by providing a standardized, high-resolution analog data acquisition layer that integrates with multiple communication protocols.

In plants where older GE Series 90-30 PLCs coexist with newer PACSystems RX3i controllers, the IC200ALG266F enables a unified I/O strategy — the same module type can be used across both platforms via compatible VersaMax NIUs, eliminating the need for parallel wiring infrastructures and reducing engineering overhead. This protocol-agnostic approach means that a single analog input station can serve Profibus DP, DeviceNet, or Ethernet/IP networks simultaneously, depending on the NIU selected.

For remote monitoring and diagnostics, the IC200ALG266F’s data is accessible via the SCADA historian, allowing maintenance engineers to review analog trend data, identify sensor drift, and schedule predictive maintenance without physical site visits. Alarm thresholds configured in the PLC logic trigger immediate notifications to HMI panels and mobile devices, reducing mean time to repair (MTTR) and improving overall equipment effectiveness (OEE).

Production line transparency is achieved by mapping IC200ALG266F channel data to SCADA dashboards that display real-time KPIs — flow rates, pressures, temperatures, and energy consumption — enabling plant managers to make data-driven decisions and identify bottlenecks before they escalate into unplanned downtime. System expansion is straightforward: additional VersaMax I/O stations can be added to the Profibus or Ethernet network without modifying the host PLC program, supporting phased capacity growth aligned with production demands.

Every IC200ALG266F unit supplied by ZYPLC undergoes pre-shipment functional testing, verifying channel accuracy, bus communication integrity, and power consumption within specification. Units are shipped with full documentation and are backed by a 12-month warranty, with in-stock inventory available for same-week DHL or FedEx international dispatch.

Industrial Connectivity FAQ

Q1: What communication protocols does the GE IC200ALG266F support?
The IC200ALG266F communicates over the GE VersaMax I/O bus and supports Profibus DP, DeviceNet, and Ethernet/IP connectivity when paired with the appropriate VersaMax Network Interface Unit (NIU), such as the IC200PBI001 or IC200ETM001. This makes it compatible with a wide range of PLC platforms, SCADA systems, and industrial network architectures.

Q2: Is the IC200ALG266F compatible with PACSystems RX3i and Series 90-30 controllers?
Yes. The IC200ALG266F is fully compatible with both GE PACSystems RX3i (e.g., IC695CPE330) and GE Series 90-30 (e.g., IC693CPU374) controllers when used within a VersaMax distributed I/O station. The module integrates seamlessly into existing GE automation architectures without requiring hardware modifications.

Q3: How does the IC200ALG266F ensure network stability and data integrity in high-noise industrial environments?
The module features differential analog inputs with high common-mode rejection, minimizing the impact of electrical noise from variable frequency drives, motors, and high-voltage switching equipment. The VersaMax I/O bus uses deterministic communication cycles, ensuring that analog data is delivered to the PLC controller with consistent timing and without packet loss — critical for closed-loop control and alarm management applications.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the IC200ALG266F?
All IC200ALG266F units supplied by ZYPLC are covered by a 12-month warranty against manufacturing defects and functional failures. Each unit undergoes pre-shipment testing that verifies analog channel accuracy across all 16 differential inputs, VersaMax bus communication handshake, and power consumption within GE specification limits. In-stock units are available for same-week international shipping via DHL or FedEx with full tracking.
