GE IC200CBL230B Industrial Network Interface for VersaMax Systems

GE IC200CBL230B: Industrial Data Link for VersaMax Smart Factory Connectivity

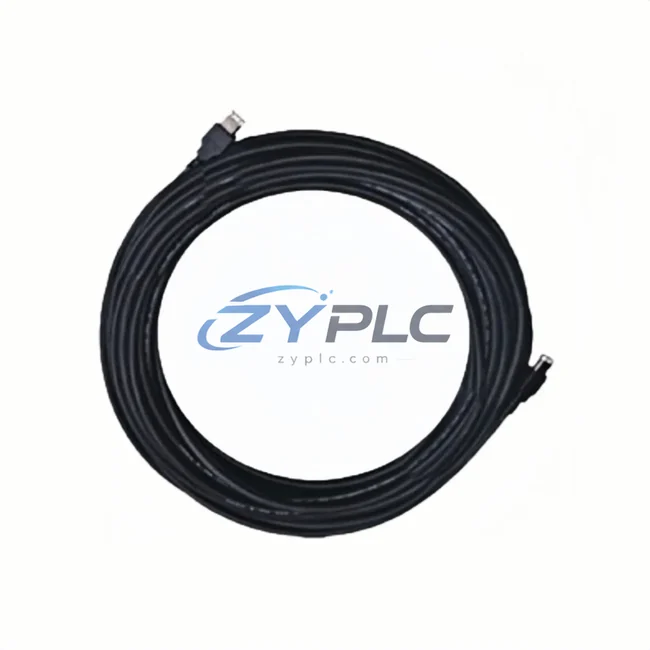

In modern industrial automation environments, seamless data flow between field devices and control systems is the backbone of operational efficiency. The GE IC200CBL230B prewired cable is engineered specifically for the GE VersaMax Nano and Micro PLC platform, serving as a critical physical-layer interface that enables reliable serial communication between programmable logic controllers, remote I/O modules, HMI panels, SCADA gateways, and upstream supervisory systems. Whether deployed in discrete manufacturing, process control, or building automation, the IC200CBL230B ensures that every byte of control data reaches its destination with integrity and minimal latency.

As smart factories demand tighter integration across every layer of the automation pyramid — from sensor-level signal acquisition to enterprise MES and ERP platforms — the quality and compatibility of communication cabling becomes non-negotiable. The IC200CBL230B is factory-prewired and tested to GE’s original specifications, eliminating field wiring errors and reducing commissioning time significantly. Its plug-and-play design supports direct connection to the VersaMax Nano/Micro CPU port, enabling immediate serial data exchange without additional configuration overhead.

Compatibility & Integration Notes

Connected Automation Data Flow

The GE IC200CBL230B sits at the heart of a layered industrial communication architecture. At the field level, discrete sensors and actuators feed real-time process signals into the GE IC200UDR005 VersaMax Micro PLC, where ladder logic executes control decisions at scan-cycle speeds. The IC200CBL230B cable bridges the CPU’s serial programming port to an HMI panel — such as the GE QuickPanel+ IC755CSS10CDB — enabling operators to visualize live process data, acknowledge alarms, and adjust setpoints without interrupting the control loop.

For multi-node network architectures, the VersaMax Micro CPU communicates upstream via the GE IC200PNS001 PROFINET Scanner or the IC200SET001 Ethernet module, aggregating field data into a plant-wide SCADA system such as GE CIMPLICITY or Proficy iFIX. The IC200CBL230B supports the initial programming and diagnostic link via SNP/SNP-X protocol using GE Proficy Machine Edition software, allowing engineers to download logic, monitor I/O status, and perform online edits from a laptop or engineering workstation.

In distributed I/O topologies, the GE IC200CHS022 expansion carrier and IC200MDL740 discrete output modules extend the VersaMax Micro’s I/O capacity across the machine frame. The IC200CBL230B ensures that the CPU remains accessible for firmware updates, fault diagnostics, and program backup — critical maintenance tasks in 24/7 production environments. Variable frequency drives such as the GE AF-650GP series can be integrated into the same control network via Modbus RTU or PROFIBUS, with the VersaMax Micro acting as the network master coordinating speed references and drive status feedback.

Edge gateway devices — including the GE MDS SD9 industrial wireless gateway — can relay VersaMax process data over cellular or Wi-Fi networks to cloud-based monitoring platforms, enabling remote diagnostics and predictive maintenance analytics. The IC200CBL230B’s role as the primary serial interface ensures that local programming access is always available, even when remote connectivity is temporarily unavailable, providing a reliable fallback for on-site engineers.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and hybrid industrial environments is data isolation — the inability of different control systems, protocols, and network segments to exchange information in real time. The GE VersaMax platform, anchored by cables like the IC200CBL230B, addresses this challenge through a combination of open serial protocols (SNP, SNP-X, Modbus RTU) and modular I/O expansion that allows gradual network modernization without full system replacement.

Sites running mixed automation environments — where older GE Series 90-30 PLCs coexist with newer VersaMax Micro controllers and third-party SCADA systems — benefit from the IC200CBL230B’s compatibility with GE’s Proficy software suite, which provides a unified programming and monitoring environment across multiple controller generations. This eliminates the need for separate engineering tools and reduces the risk of configuration errors during cross-platform data integration.

Remote monitoring and alarm management are further enhanced when the VersaMax Micro is connected to a SCADA gateway via the serial link established by the IC200CBL230B. Real-time alarm events — such as motor overloads, sensor faults, or communication timeouts — are immediately propagated to the SCADA historian and operator workstations, enabling rapid response and minimizing unplanned downtime. Production line transparency is achieved through continuous data logging of cycle counts, reject rates, and energy consumption, all accessible from a centralized dashboard.

System scalability is a key design principle of the VersaMax platform. As production capacity grows, additional I/O modules, communication adapters, and network nodes can be added to the existing architecture without replacing the core CPU or rewiring the communication backbone. The IC200CBL230B supports this scalability by maintaining a stable, low-latency serial link to the CPU throughout the system’s lifecycle — from initial commissioning through multi-year production operation.

Every IC200CBL230B unit supplied by ZYPLC undergoes pre-shipment functional testing to verify connector integrity, cable continuity, and communication handshake performance. This ensures that the cable arrives ready for immediate installation, reducing on-site troubleshooting time and accelerating production startup. All units are covered by a warranty terms confirmed during quotation, with dedicated technical support available for integration assistance and fault diagnosis.

Industrial Connectivity FAQ

Q1: What communication protocols does the GE IC200CBL230B support?
The IC200CBL230B supports GE’s SNP (Serial Natural Protocol) and SNP-X protocols, which are used for PLC programming, HMI communication, and SCADA data exchange via the VersaMax Nano/Micro CPU serial port. It is also compatible with Modbus RTU when the VersaMax CPU is configured as a Modbus master or slave, enabling integration with third-party drives, meters, and remote I/O devices.

Q2: Is the IC200CBL230B compatible with all VersaMax Nano and Micro CPU models?
Yes. The IC200CBL230B is designed for the GE VersaMax Nano and Micro PLC family, including models such as the IC200UDR005, IC200UDD020, and IC200UEI001. It connects directly to the CPU’s programming port without requiring adapters or additional hardware. For compatibility with other GE controller families such as the Series 90-30 or PACSystems RX3i, different cable models are required.

Q3: How does ZYPLC ensure network stability and product quality before shipment?
Each IC200CBL230B unit undergoes a pre-shipment functional test that verifies cable continuity, connector seating, and serial communication handshake performance. Units that fail any test parameter are quarantined and not shipped. All products are backed by a warranty terms confirmed during quotation covering manufacturing defects and communication failures under normal operating conditions. ZYPLC maintains RFQ-confirmed sourcing for shipment arranged after confirmation via DHL or FedEx with full tracking.

Q4: Can the IC200CBL230B be used for remote diagnostics and online program editing?
Yes. When connected between a laptop running GE Proficy Machine Edition and the VersaMax Micro CPU, the IC200CBL230B enables full online monitoring, I/O forcing, program upload/download, and fault diagnostics in real time. For remote access scenarios, the cable provides the local serial link while a separate Ethernet or cellular gateway handles the WAN connection — ensuring that local engineering access remains available regardless of network conditions.
