GE IC200DBI001 Industrial Network Interface for VersaMax Systems

GE IC200DBI001 Industrial Network Interface for VersaMax Systems: Bridging the Industrial Data Link

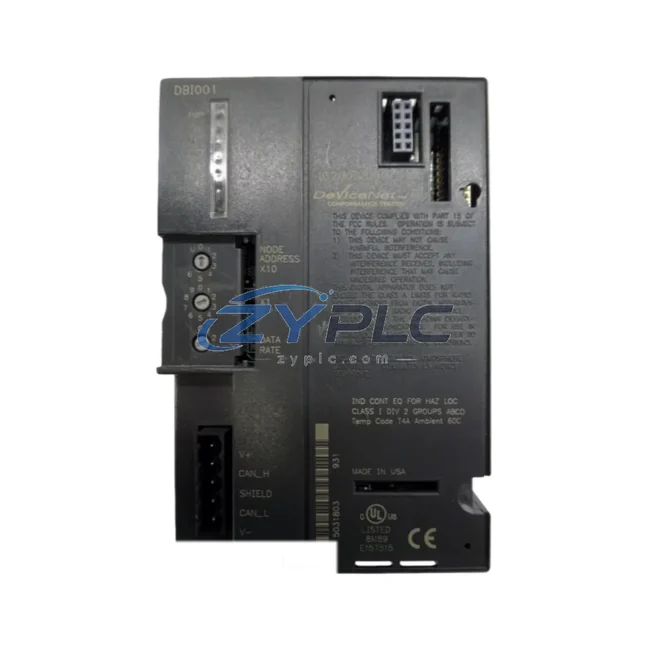

The GE IC200DBI001 is a high-performance DeviceNet Bus Interface Unit (NIU) engineered for the GE Fanuc VersaMax remote I/O platform. Designed to serve as the critical communication backbone between field-level devices and upper-level control systems, the IC200DBI001 enables seamless, deterministic data exchange across complex industrial network architectures. Whether deployed in automotive assembly lines, food and beverage processing, water treatment facilities, or discrete manufacturing environments, this gateway delivers the protocol conversion, network stability, and real-time data throughput that modern smart factories demand.

At its core, the IC200DBI001 functions as a DeviceNet Network Interface Unit, allowing the VersaMax distributed I/O system to participate natively in a DeviceNet network as a slave node. This means that a master controller — such as a GE Fanuc Series 90-30 PLC or a PACSystems RX3i CPU — can address all connected VersaMax I/O modules through a single DeviceNet node address, dramatically simplifying network topology and reducing wiring complexity on the plant floor.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the IC200DBI001 sits at the intersection of the field device layer and the control network layer. Signal acquisition begins at the sensor and actuator level — proximity switches, photoelectric sensors, pressure transmitters, and solenoid valves — all wired into GE Fanuc VersaMax I/O modules such as the IC200MDL640 (16-point 24VDC discrete input) or the IC200MDL740 (16-point discrete output). These modules mount directly onto the VersaMax NIU backplane, with the IC200DBI001 serving as the network head that aggregates all local I/O data and presents it to the DeviceNet master.

The DeviceNet master — typically a GE Fanuc IC200BEM003 DeviceNet Master Module installed in a Series 90-30 rack, or a PACSystems RX3i IC695NIU001 — polls the IC200DBI001 cyclically, retrieving real-time process values and writing output commands with deterministic scan times. This polled I/O mechanism ensures that the control loop between the PLC and the remote I/O station remains tight and predictable, even across distances of up to 500 meters at 125 kbps.

Moving up the automation hierarchy, the PLC controller exchanges data with the SCADA layer via Ethernet. A GE Fanuc IC200ETM001 Ethernet Interface Module or an embedded Ethernet port on a PACSystems RX3i CPU315 bridges the DeviceNet-sourced I/O data into the plant’s Ethernet backbone, making it available to SCADA platforms such as GE iFIX, Wonderware InTouch, or Ignition by Inductive Automation. HMI panels — including GE Fanuc QuickPanel+ operator interfaces — can then display live process values, trend historical data, and push operator commands back down through the same data path to the IC200DBI001 and its connected field devices.

For applications requiring edge intelligence, an industrial edge gateway can be inserted between the PLC Ethernet port and the cloud or MES layer, enabling OPC-UA data publishing, predictive maintenance analytics, and remote diagnostics without disrupting the real-time control loop. Variable frequency drives (VFDs) and servo drives that support DeviceNet — such as those in the AB PowerFlex 700 family or compatible third-party drives — can also be integrated onto the same DeviceNet segment as the IC200DBI001, allowing the PLC to command speed references and read drive status within a unified network architecture.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and hybrid industrial environments is protocol fragmentation — field devices speaking DeviceNet, Modbus RTU, PROFIBUS DP, or proprietary serial protocols that cannot communicate natively with modern Ethernet-based control systems. The IC200DBI001 directly addresses this by providing a standards-compliant DeviceNet interface that any ODVA-certified DeviceNet master can address, eliminating the need for custom protocol converters or middleware software.

Data silos are another critical pain point. When remote I/O stations cannot report their status to the SCADA or MES layer, production managers lose visibility into machine states, cycle counts, and fault conditions. By integrating the IC200DBI001 into the DeviceNet network, all VersaMax I/O data becomes accessible to the PLC, which in turn feeds the SCADA system with structured, timestamped process data. This enables production line transparency — operators can monitor conveyor states, valve positions, and sensor readings from a central control room or even from mobile HMI devices on the plant floor.

Remote monitoring and diagnostics are equally important for reducing unplanned downtime. The IC200DBI001 supports DeviceNet explicit messaging, which allows the master controller to query the module’s identity object, retrieve diagnostic counters, and detect bus-off conditions or node failures without interrupting normal I/O polling. This capability integrates naturally with SCADA alarm management systems, enabling automatic fault notifications to maintenance personnel via email, SMS, or push alerts — closing the loop between field-level anomalies and corrective action.

System scalability is built into the VersaMax architecture. Additional I/O modules can be added to the backplane without changing the DeviceNet node address or reconfiguring the master scanner, making it straightforward to expand capacity as production requirements grow. Combined with the IC200DBI001’s support for up to 128 bytes of input and 128 bytes of output data, this platform can accommodate a wide range of I/O-intensive applications without requiring a network redesign.

Every IC200DBI001 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify communication integrity, I/O data exchange, and network node registration before dispatch. Units are backed by a warranty terms confirmed during quotation, with availability subject to RFQ confirmation for shipment arranged after confirmation to support urgent maintenance and project timelines.

Industrial Connectivity FAQ

Q1: What is the maximum communication distance supported by the IC200DBI001 on a DeviceNet network?
The IC200DBI001 supports DeviceNet trunk line distances of up to 500 meters at 125 kbps, 250 meters at 250 kbps, and 100 meters at 500 kbps, in accordance with ODVA DeviceNet specifications. Drop line lengths and total network cable length must also comply with ODVA guidelines to ensure signal integrity.

Q2: Is the IC200DBI001 compatible with DeviceNet masters from other vendors, such as Allen-Bradley or Omron?
Yes. The IC200DBI001 is an ODVA-conformance-tested DeviceNet slave device and is compatible with any DeviceNet master that adheres to the ODVA DeviceNet specification, including Allen-Bradley 1756-DNB ControlLogix scanner modules, Omron CJ1W-DRM21 master units, and other third-party DeviceNet scanners. An EDS (Electronic Data Sheet) file is available to simplify configuration in RSNetWorx for DeviceNet or equivalent network configuration tools.

Q3: How does the IC200DBI001 handle network faults, and can it trigger SCADA alarms automatically?
The IC200DBI001 monitors DeviceNet bus health continuously and reports communication faults — including bus-off conditions, duplicate MAC ID errors, and I/O connection timeouts — via its status LEDs and through DeviceNet explicit messaging. The connected PLC can read these diagnostic bits and map them to SCADA alarm tags, enabling automatic alarm generation and notification workflows in systems such as GE iFIX, Ignition, or Wonderware without requiring additional hardware.

Q4: What warranty and testing does ZYPLC provide with the IC200DBI001?
All IC200DBI001 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures. Each unit undergoes pre-shipment testing that includes DeviceNet communication verification, I/O data exchange validation, and node address configuration checks. Units are dispatched from RFQ-confirmed sourcing to minimize lead times for both planned projects and emergency replacement scenarios.
