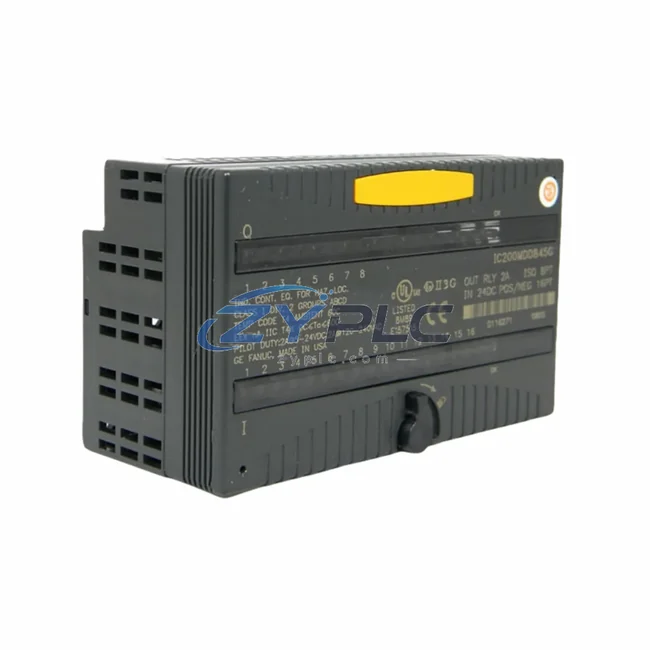

GE IC200MDD840 Discrete I/O Module for VersaMax Systems

GE IC200MDD840 Industrial Network Interface for VersaMax Systems: Bridging Field Devices and Smart Factory Data Flows

The GE IC200MDD840 is a 24VDC mixed discrete I/O module engineered for the GE VersaMax distributed I/O platform. Designed to serve as a critical node in industrial data communication architectures, the IC200MDD840 delivers reliable signal acquisition and output control across complex automation networks. Whether deployed in standalone PLC control panels or integrated into multi-tier SCADA and HMI environments, this module ensures deterministic data exchange between field-level sensors, actuators, and upper-level control systems.

In modern smart factory deployments, the IC200MDD840 functions as a foundational element of the industrial data chain. Signals originating from proximity sensors, limit switches, photoelectric detectors, and push-button stations are captured at the module’s discrete input channels and transmitted upstream through the VersaMax backplane to the host CPU — typically a GE IC200CPU005 or IC200CPU006 controller. From there, processed data flows into Ethernet-based SCADA platforms or OPC-UA gateways, enabling real-time visualization, alarm management, and remote diagnostics across the entire production line.

Compatibility & Integration Notes

Connected Automation Data Flow

The IC200MDD840 sits at the intersection of field-level signal collection and network-level data distribution. In a typical VersaMax architecture, the module is mounted on a GE IC200CHS022 or IC200CHS014 carrier, sharing the backplane with analog input modules such as the IC200ALG260 and output modules like the IC200MDL940. This co-location allows the host CPU to perform coordinated I/O scanning across both discrete and analog domains within a single rack cycle.

For remote I/O applications, the IC200MDD840 is commonly deployed alongside the GE IC200PNS002 Ethernet Network Interface Unit, which bridges the VersaMax I/O subsystem to an Ethernet/IP network. This configuration allows a GE PACSystems RX3i or RX7i controller to manage distributed I/O nodes across geographically separated production zones — all without sacrificing scan cycle determinism. In Profibus-DP environments, the IC200PBM002 Profibus Master Module serves as the network coordinator, enabling the IC200MDD840 to participate in multi-vendor fieldbus topologies alongside third-party drives, valve islands, and remote terminal units.

At the HMI layer, operator panels running on GE Proficy HMI/SCADA — iFIX or CIMPLICITY — receive real-time discrete status data from the IC200MDD840 via the host PLC’s Ethernet port. Alarm conditions detected at the module’s input channels — such as motor overload signals or emergency stop activations — are immediately propagated to the SCADA alarm server, triggering operator notifications and automated interlock responses. Variable frequency drives connected to the same control network can receive run/stop commands derived from the IC200MDD840’s output channels, creating a tightly integrated motion and process control loop.

Edge gateway devices, such as those running Kepware KEPServerEX or GE’s own Predix edge software, can subscribe to I/O tag data from the IC200MDD840 via OPC-DA or OPC-UA interfaces, forwarding production metrics to cloud-based MES or ERP platforms. This end-to-end data path — from the IC200MDD840’s terminal block inputs to enterprise dashboards — exemplifies the connectivity value that this module delivers in Industry 4.0 environments.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is protocol fragmentation: different generations of equipment speak different communication languages, creating data silos that prevent unified monitoring and control. The IC200MDD840, as part of the GE VersaMax ecosystem, addresses this challenge by providing a standardized I/O interface that can be bridged to virtually any industrial network through the appropriate network interface module.

Sites running mixed automation environments — where GE VersaMax PLCs coexist with Siemens, Allen-Bradley, or Mitsubishi controllers — can leverage protocol gateway solutions to normalize data from the IC200MDD840 into a common format consumable by multi-vendor SCADA systems. This eliminates the need for parallel wiring infrastructure and reduces the engineering overhead associated with maintaining separate HMI screens for each control platform.

Remote monitoring is another area where the IC200MDD840 delivers measurable value. By connecting the VersaMax I/O network to an Ethernet backbone, maintenance engineers can access real-time discrete I/O status from any location with network access — enabling predictive maintenance workflows, remote fault diagnosis, and production line transparency without requiring physical presence on the plant floor. This capability is particularly valuable for multi-site manufacturers seeking to centralize their operational intelligence.

System expansion is straightforward within the VersaMax architecture. Additional IC200MDD840 modules or complementary I/O types can be added to existing carriers without disrupting live production, and the host CPU automatically recognizes new modules during the next configuration download. This plug-and-expand design philosophy minimizes downtime during capacity upgrades and supports phased automation rollouts aligned with capital expenditure cycles.

Every IC200MDD840 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify channel integrity, backplane communication, and power consumption within specification. Units are Warranty terms are confirmed during quotation.

Industrial Connectivity FAQ

Q1: What communication protocols does the IC200MDD840 support for SCADA integration?
The IC200MDD840 communicates natively over the VersaMax backplane bus. For SCADA integration, it is paired with network interface modules such as the IC200PNS002 (Ethernet/IP) or IC200PBM002 (Profibus-DP), enabling connectivity to GE Proficy iFIX, CIMPLICITY, and third-party SCADA platforms via OPC-DA or OPC-UA drivers. Communication latency is typically within one PLC scan cycle, ensuring real-time data availability at the SCADA server.

Q2: Is the IC200MDD840 compatible with non-GE PLC systems or mixed-vendor networks?
Yes. While the IC200MDD840 is designed for the GE VersaMax platform, it can participate in mixed-vendor automation networks through protocol gateway solutions. Ethernet/IP and Profibus-DP network interfaces allow the module’s I/O data to be accessed by Allen-Bradley, Siemens, and other PLC systems acting as network masters, making it suitable for multi-vendor SCADA and DCS environments.

Q3: How does the IC200MDD840 ensure network stability in high-noise industrial environments?
The IC200MDD840 is designed to IEC 61131-2 environmental standards, with optical isolation on discrete input channels to suppress electrical noise from inductive loads, motor drives, and switching power supplies. The VersaMax backplane communication protocol includes error detection mechanisms that flag communication faults to the host CPU, enabling automatic fault recovery and alarm generation without manual intervention.

Q4: What warranty and testing standards apply to IC200MDD840 units supplied by ZYPLC?
All IC200MDD840 units supplied by ZYPLC are Warranty terms are confirmed during quotation. Each unit undergoes pre-shipment functional testing including discrete I/O channel verification, backplane communication integrity checks, and power consumption validation. RFQ-confirmed units are available for same-day dispatch, with global shipping to support urgent maintenance and production restart requirements.
