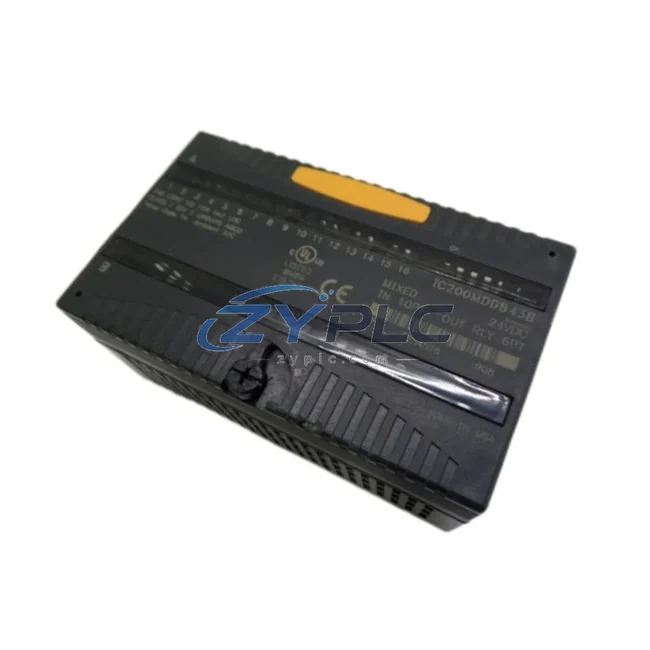

GE IC200MDD843 Mixed Discrete I/O for VersaMax

GE IC200MDD843 Mixed Discrete I/O for VersaMax

The GE Fanuc IC200MDD843 is a mixed discrete I/O module engineered for seamless integration within the VersaMax distributed control architecture. Rather than functioning as a standalone component, the IC200MDD843 is designed to operate as a coordinated node within a layered automation system — connecting the field signal layer to the CPU processing layer through a structured, deterministic I/O bus. Its role spans signal acquisition, output actuation, and real-time data exchange, making it a foundational element in both compact machine-level controllers and large-scale distributed process control networks.

In modern industrial automation, system architects demand I/O modules that do more than pass signals — they must support redundancy strategies, simplify commissioning, reduce wiring complexity, and sustain long-term operational reliability. The IC200MDD843 addresses all of these requirements within the GE VersaMax ecosystem, providing a consistent hardware interface that integrates with VersaMax CPUs, power supplies, communication modules, and expansion carriers without requiring custom configuration bridges or protocol converters.

Product Specification Table

System Compatibility Notes

The IC200MDD843 achieves its full performance potential when deployed as part of a coordinated VersaMax control system. At the CPU layer, it interfaces directly with processors such as the IC200CPUE05 or IC200CPU005, which handle ladder logic execution, PID loop management, and system-wide data coordination. These CPUs communicate with the I/O module through the VersaMax backplane, ensuring deterministic scan cycle performance even under high I/O density configurations.

Power integrity is maintained through dedicated VersaMax power supplies such as the IC200PWR002 or IC200PWR102, which provide regulated 24VDC to the carrier assembly. Proper power supply sizing is critical when combining the IC200MDD843 with analog modules like the IC200ALG240 (analog input) or IC200ALG320 (analog output), as mixed I/O architectures must account for combined current draw across all installed modules.

For distributed I/O expansion beyond the local rack, the IC200MDD843 can be deployed on remote carrier assemblies connected via IC200BEM002 (Bus Expansion Module) or through Ethernet-based remote I/O using the IC200ETM001 Ethernet Interface Module. This enables system architects to extend the I/O footprint across large plant floors without increasing CPU scan overhead, as remote I/O updates are handled asynchronously through the communication layer.

In applications requiring human-machine interface integration, the IC200MDD843 coexists with QuickPanel+ HMI terminals connected via Ethernet or serial links to the VersaMax CPU. Operator screens can display real-time discrete I/O status, alarm conditions, and output override states sourced directly from the IC200MDD843’s register map. This system integration between the I/O layer and the HMI layer reduces diagnostic time during fault conditions and supports predictive maintenance workflows.

Terminal block wiring is simplified through compatible IC200ACC001 or IC200ACC003 connector accessories, which allow pre-wired field terminations to be disconnected from the module without disturbing field wiring — a critical feature for hot-swap maintenance in live production environments. This design supports the warranty terms confirmed during quotation service model by enabling module replacement without full system shutdown.

Industrial Application Notes

The IC200MDD843 is deployed across a wide range of industrial sectors where discrete signal management is central to process control. In manufacturing and assembly lines, the module handles conveyor motor start/stop commands, proximity sensor inputs, solenoid valve outputs, and safety interlock signals — all within a single 32-point mixed I/O footprint that reduces panel space and wiring cost.

In power generation and electrical substation applications, the IC200MDD843 manages breaker status inputs, relay trip outputs, and alarm annunciation signals. Its optical isolation and wide operating voltage range make it suitable for environments with significant electrical noise, where signal integrity is non-negotiable. The module’s deterministic response time supports protection relay coordination schemes that require sub-100ms actuation.

For water and wastewater treatment facilities, the IC200MDD843 controls pump motor contactors, valve actuators, and level switch inputs across distributed lift stations. Its compatibility with VersaMax remote I/O carriers allows a single CPU to manage multiple geographically separated pump stations through a unified control architecture, reducing the need for standalone PLCs at each remote site.

In petrochemical and refinery environments, the module is integrated into safety instrumented systems (SIS) and basic process control systems (BPCS) where discrete I/O reliability directly impacts process safety. The IC200MDD843’s proven field record in GE VersaMax installations makes it a preferred choice for brownfield upgrades where existing VersaMax infrastructure is being expanded rather than replaced.

Mining, metallurgy, and heavy industry applications leverage the IC200MDD843 for crusher control, conveyor sequencing, and motor protection relay interfacing. The module’s rugged operating temperature range and DIN rail mounting via VersaMax carriers ensure reliable operation in dusty, vibration-prone environments typical of mineral processing plants.

Product Compatibility FAQ

Q1: Is the IC200MDD843 compatible with all VersaMax CPU modules and carrier configurations?
The IC200MDD843 is designed for use with the full range of VersaMax carriers, including the IC200CHS002 (5-slot) and IC200CHS022 (10-slot) assemblies. It is compatible with all VersaMax CPUs, including the IC200CPUE05 and IC200CPU005, and can be used in both local and remote I/O configurations. When used in remote I/O mode via the IC200BEM002 or IC200ETM001, the module operates transparently within the CPU’s I/O map without requiring special configuration. Always verify carrier power budget when combining multiple mixed I/O modules in a single assembly.

Q2: How does the IC200MDD843 support long-term maintenance and spare parts management?
The IC200MDD843 uses a standardized VersaMax form factor, meaning it can be replaced in the field without tools beyond a standard screwdriver for terminal block removal. All units supplied by ZYPLC are covered under a warranty terms confirmed during quotation from the date of shipment, with technical support available for installation verification, configuration assistance, and fault diagnosis. Maintaining a spare IC200MDD843 in your critical spare parts inventory is recommended for facilities with continuous production requirements, as module replacement can be completed in under 15 minutes without CPU restart in most carrier configurations.

Q3: Can the IC200MDD843 be used in redundant control architectures?
While the IC200MDD843 itself is a standard (non-redundant) I/O module, it can be incorporated into redundant system designs by deploying duplicate I/O assemblies on parallel carrier racks connected to redundant CPUs. In such architectures, the primary and secondary CPU modules — such as paired IC200CPUE05 units — synchronize I/O data through the VersaMax backplane, with automatic failover ensuring continuous output control in the event of a primary CPU fault. For applications requiring IEC 61511-compliant safety architectures, consult your system integrator to verify the appropriate redundancy topology for your specific process risk classification.
