GE IC200MDL241 Industrial Network Interface for VersaMax Systems

GE IC200MDL241 Industrial Network Interface for VersaMax Systems: Bridging Field Signals to Smart Factory Data Flows

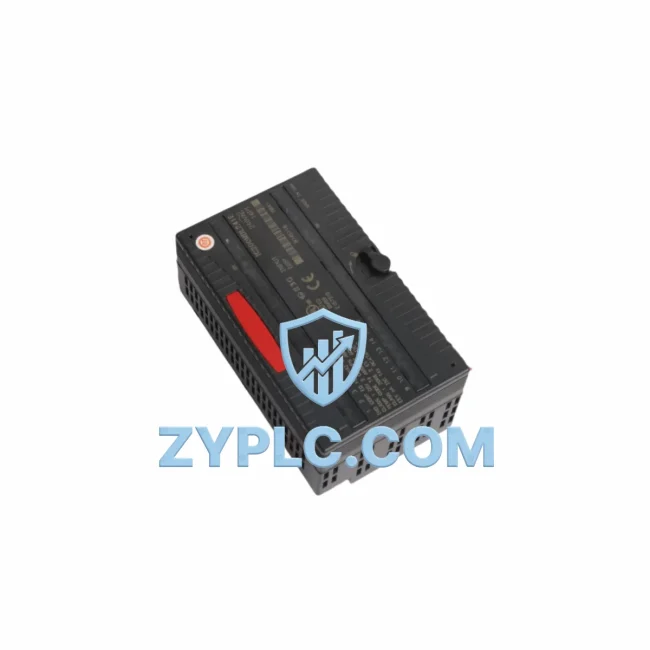

The GE IC200MDL241 is a 16-point, 120V AC discrete input module engineered for the GE VersaMax distributed I/O platform. Designed to serve as a critical signal acquisition node in industrial automation architectures, the IC200MDL241 captures real-world AC field signals from sensors, limit switches, push buttons, and proximity devices, converting them into digital data that flows seamlessly through the VersaMax backplane to the PLC controller and beyond. In smart factory environments where data integrity and communication reliability are non-negotiable, this module delivers the front-end signal conditioning that underpins every layer of the automation stack — from field device to SCADA dashboard.

Whether deployed in discrete manufacturing, process control, material handling, or utility management, the IC200MDL241 integrates directly into the VersaMax I/O system, enabling real-time data acquisition at the machine level. Its 120V AC input rating makes it ideal for legacy and modern industrial installations alike, where AC-powered field devices remain the standard. With 16 independently monitored input channels, the module provides high-density signal coverage without sacrificing diagnostic transparency or network performance.

Network Communication Table

Connected Automation Data Flow

In a fully integrated VersaMax automation architecture, the IC200MDL241 sits at the edge of the data acquisition chain. Field devices — including 120V AC inductive proximity sensors, motor run/stop feedback contacts, and conveyor limit switches — connect directly to the module’s 16 input terminals. Once a signal is detected, the IC200MDL241 encodes the state change and transmits it across the VersaMax backplane to the network interface unit (NIU) or CPU.

When paired with the IC200ETM001 Ethernet TCP/IP network interface module, the IC200MDL241’s input data becomes immediately accessible to SCADA systems and HMI platforms over standard industrial Ethernet. The IC200DBI001 DeviceNet bus interface extends connectivity to DeviceNet-based control networks, while the IC200ERM001 expansion module allows the I/O system to scale across multiple racks without interrupting live data flow. For installations requiring mixed signal types, the IC200MDD844 and IC200MDD845 mixed I/O modules can be deployed alongside the IC200MDL241 on the same IC200CHS022L carrier, creating a unified I/O node that handles both discrete inputs and outputs within a single backplane segment.

At the controller level, the GE Fanuc IC200CPUE05-JP CPU processes the incoming discrete input data from the IC200MDL241 and executes the ladder logic or function block programs that govern machine behavior. For compact standalone applications, the IC200UDR005-BD micro PLC integrates CPU, I/O, and power supply in a single unit, and can be expanded with VersaMax remote I/O nodes that include the IC200MDL241 for distributed signal acquisition across the production floor.

Power integrity across the VersaMax rack is maintained by the IC200PWR101 and IC200PWR102 power supply modules, which provide regulated DC bus power to all I/O modules including the IC200MDL241. The IC200ALG261 analog input module can be co-located on the same carrier to capture process variables such as temperature, pressure, or flow alongside the discrete signals managed by the IC200MDL241, enabling a comprehensive data acquisition node that feeds both discrete and analog data into the same PLC scan cycle.

For analog output control loops — such as variable speed drive setpoint commands or valve positioning — the IC200ALG266F analog output module completes the closed-loop data path: discrete inputs from the IC200MDL241 trigger logic conditions, the CPU processes the response, and analog outputs from the IC200ALG266F adjust drive parameters in real time. This tightly coupled data flow, from field signal through PLC to actuator, is the backbone of smart factory automation.

Remote connectivity is achieved through the IC200CBL230B communication cable, which links VersaMax remote I/O drops to the main control network, extending the reach of the IC200MDL241’s input data to centralized SCADA servers and historian databases. The IC200MDL940F discrete output module mirrors the IC200MDL241 on the output side, completing the digital I/O pair that drives field actuators based on the input states captured by the IC200MDL241. Together, these modules form a complete discrete I/O solution within the VersaMax ecosystem.

The IC200MDL740 DC output module provides an alternative output path for 24V DC actuators, and when combined with the IC200MDL241’s AC input capability, the system can interface with both AC-powered sensors and DC-powered actuators — a common requirement in mixed-voltage industrial environments. This cross-voltage compatibility, managed through the VersaMax backplane and the GE PACSystems controller, ensures that the IC200MDL241 can be deployed in virtually any industrial site configuration without requiring additional signal conditioning hardware.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field-level signals exist in physical form but cannot be accessed, monitored, or acted upon by higher-level systems. The GE IC200MDL241 directly addresses this problem by converting 120V AC field signals into structured digital data that is immediately available to the VersaMax PLC, and through the appropriate network interface module, to Ethernet-based SCADA, HMI, and MES platforms.

In facilities where legacy AC wiring infrastructure is already in place, replacing field devices to accommodate DC-only I/O systems is cost-prohibitive and operationally disruptive. The IC200MDL241 eliminates this barrier by accepting 120V AC inputs natively, allowing existing field wiring to remain intact while the data it carries is digitized and integrated into modern automation networks. This approach preserves capital investment in field infrastructure while enabling the data transparency that Industry 4.0 initiatives demand.

Protocol fragmentation — where different machine generations use incompatible communication standards — is resolved through the VersaMax NIU architecture. By selecting the appropriate network interface (Ethernet, DeviceNet, Profibus, or Genius), the IC200MDL241’s input data can be published to any of these networks simultaneously, eliminating the need for protocol converters or gateway devices that introduce latency and single points of failure. The result is a unified data layer where all discrete input states are visible to SCADA operators, maintenance engineers, and remote diagnostic systems in real time.

Production line transparency — knowing the exact state of every field device at every moment — is achieved through the IC200MDL241’s 16-channel input density and the VersaMax system’s deterministic scan cycle. Alarm conditions, machine faults, and process deviations are detected at the input module level and propagated through the control network within milliseconds, enabling rapid response and minimizing unplanned downtime. Remote diagnostics via the Ethernet interface allow maintenance teams to interrogate input states, review fault histories, and perform module-level diagnostics without physical access to the control panel — a critical capability for geographically distributed facilities and unmanned remote sites.

System expansion is straightforward within the VersaMax architecture. Additional IC200MDL241 modules can be added to existing carriers, new remote I/O drops can be connected via the IC200CBL230B communication cable, and the entire expanded system remains under the management of the existing PLC CPU without requiring controller replacement or network reconfiguration. This scalability ensures that the IC200MDL241 investment grows with the facility’s automation requirements.

Industrial Connectivity FAQ

Q1: What communication protocols does the GE IC200MDL241 support for SCADA and HMI integration?
The IC200MDL241 itself is a backplane-bus module and does not communicate directly over external networks. It transmits input data across the VersaMax backplane to a network interface unit (NIU) such as the IC200ETM001 (Ethernet TCP/IP), IC200DBI001 (DeviceNet), or a Profibus NIU. Through these interfaces, the module’s input data is accessible via Modbus TCP, EtherNet/IP, DeviceNet, Profibus DP, and OPC-UA — covering the full range of SCADA, HMI, and MES integration requirements.

Q2: What is the communication latency between the IC200MDL241 and the PLC controller?
The VersaMax backplane operates at high-speed parallel bus rates, with input scan times typically in the range of 1–5 milliseconds depending on the total I/O configuration and CPU scan cycle. For time-critical applications, the VersaMax system supports interrupt-driven input processing, allowing the IC200MDL241’s inputs to trigger immediate CPU response without waiting for the next scheduled scan cycle. Network latency to SCADA systems depends on the NIU type and network load, but Ethernet-based configurations typically achieve sub-10ms update rates under normal operating conditions.

Q3: Is the GE IC200MDL241 compatible with PACSystems RX3i and other GE controller platforms?
Yes. The IC200MDL241 is fully compatible with the GE VersaMax distributed I/O system, which can be connected to PACSystems RX3i, PACSystems RX7i, and Series 90-30 controllers via the appropriate VersaMax NIU. The module’s input data is presented to the controller as standard discrete input registers, making it transparent to the PLC program regardless of the controller platform. Mixed installations combining VersaMax remote I/O with PACSystems CPUs are a common and fully supported configuration.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the IC200MDL241?
All GE IC200MDL241 modules supplied by ZYPLC carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Every unit undergoes function verification testing prior to shipment, confirming that all 16 input channels respond correctly to 120V AC signals and that backplane communication is fully operational. Units are shipped in anti-static packaging with appropriate documentation. For urgent requirements, expedited DHL and FedEx international shipping is available with typical transit times of 3–7 business days to most global destinations.
