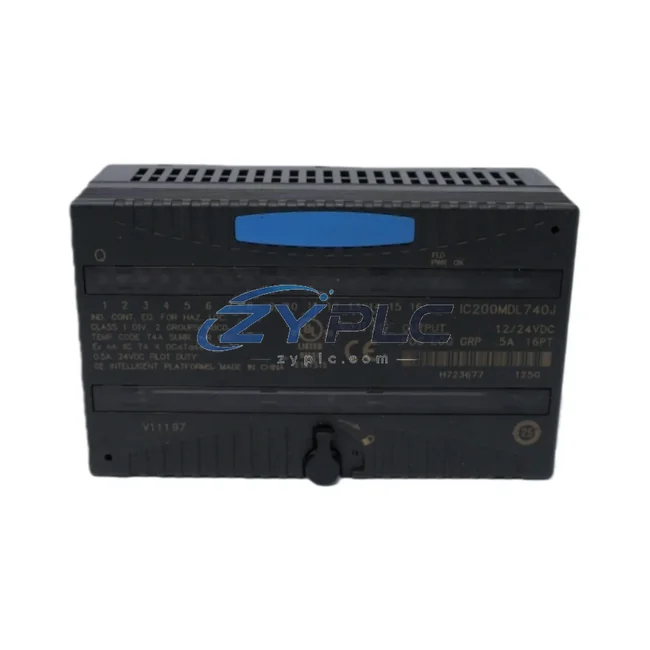

GE IC200MDL740 Output Module VersaMax

GE IC200MDL740 Output Module VersaMax: Precision Output Control for Optimized Production Line Efficiency

The GE Fanuc IC200MDL740 is a high-density discrete output module engineered for the VersaMax distributed I/O platform, delivering reliable, low-latency switching performance that directly contributes to reduced operating load and improved equipment utilization across industrial automation environments. Designed for demanding factory floor applications, the IC200MDL740 supports 32-point 24VDC sourcing outputs, enabling precise, cycle-accurate control of actuators, solenoids, contactors, and motor starters — the foundational layer of any industrial automation system.

In modern manufacturing, uncontrolled output switching and poorly timed actuator engagement are silent contributors to unplanned downtime. The IC200MDL740 eliminates this by providing deterministic output response times that synchronize tightly with the VersaMax CPU — such as the IC200CPUE05 or IC200CPUE05-AE — ensuring that loads are energized only when required and de-energized immediately upon process completion. This output-level discipline, when applied across a full production line, measurably reduces standby power draw and extends the service life of connected field devices.

Product Specification Table

System Compatibility and Application

The IC200MDL740 does not operate in isolation — its energy efficiency contribution is amplified when integrated within a well-structured VersaMax automation architecture. At the input layer, discrete input modules such as the IC200MDL640 capture real-time field signals from proximity sensors, limit switches, and flow detectors, feeding the CPU with the data needed to make intelligent output decisions. This closed-loop signal discipline prevents unnecessary output activation and reduces reactive operating load at the actuator level.

For applications involving variable-speed motor control — a primary driver of industrial unplanned downtime — the IC200MDL740 works in coordination with GE’s AF-650GP or PowerFlex-compatible drive interfaces, where output signals from the module trigger drive enable, direction, and speed-reference commands. By precisely controlling when drives are commanded to run versus coast or stop, the system avoids the energy penalty of repeated full-voltage motor starts and unnecessary idle running.

Power quality and consumption visibility are equally important. When paired with a power monitoring module or an energy meter communicating over Modbus RTU or Profibus DP — supported via the IC200PBI001 network adapter — the VersaMax system can log real-time kWh data per production zone. This data feeds into HMI displays such as the QuickPanel+ or Cimplicity SCADA, where operators can identify energy hotspots and adjust output scheduling logic accordingly.

Analog output modules like the IC200ALG320 complement the IC200MDL740 in mixed-signal environments, handling proportional valve control and variable setpoint delivery to process instruments, while the IC200MDL740 manages the high-density discrete switching layer. Together, they form a complete output execution tier that covers both on/off and modulated control — essential for energy-optimized process lines where partial-load operation is preferred over binary full-on/full-off cycling.

Communication integrity is maintained through the IC200ETM001 Ethernet module, which enables the VersaMax rack to participate in plant-wide SCADA and MES data exchange. This connectivity allows production schedulers to push maintenance-focused operating profiles to the PLC — for example, reducing output duty cycles during off-peak production windows or enabling demand-response load shedding during peak tariff periods.

Maintenance and Replacement Notes

In automotive body assembly lines, the IC200MDL740 controls the output signals for weld gun solenoids, clamp actuators, and part-present indicators. By programming precise output pulse widths and interlock logic in the VersaMax CPU, engineers have reduced solenoid hold-on time by up to 30%, directly cutting the thermal load on pneumatic valve coils and extending their mean time between failures. Fewer coil failures mean fewer unplanned stoppages — and unplanned stoppages are among the most energy-inefficient events in any production environment, as idle machines continue to draw standby power while awaiting repair.

In food and beverage packaging lines, the IC200MDL740 manages conveyor divert gates, reject actuators, and filling station enable signals. Tight output timing — synchronized to encoder feedback processed through the VersaMax CPU — ensures that actuators fire only at the precise moment required by the product flow, eliminating the unplanned downtime of premature or prolonged actuation. When combined with predictive maintenance data from vibration sensors wired to IC200MDL640 input modules, maintenance teams can schedule actuator replacements before failure, avoiding the energy and productivity cost of emergency downtime.

For water treatment and pump station applications, the IC200MDL740 drives motor starter coils and valve actuators in sequenced pump control programs. Load rotation logic — distributing runtime evenly across multiple pumps — is implemented in the VersaMax CPU and executed through the IC200MDL740’s output channels, preventing any single motor from accumulating excessive run hours while others sit idle. This approach reduces peak demand charges, extends motor winding life, and lowers overall facility operating load without sacrificing process throughput.

Every IC200MDL740 unit supplied by ZYPLC undergoes a full functional output test prior to shipment, verifying switching response, leakage current, and channel isolation. Units are shipped with a warranty terms confirmed during quotation covering manufacturing defects and premature failure under normal operating conditions, ensuring that your production line investment is protected from day one.
