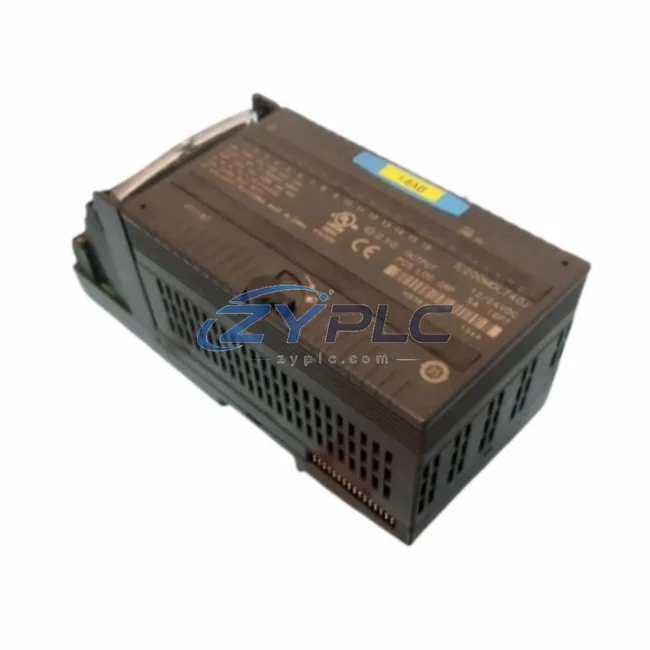

GE IC200MDL740J Discrete Output Module for VersaMax Systems

GE IC200MDL740J Industrial Network Interface for VersaMax Systems: Bridging Field Devices and Smart Factory Data Links

The GE IC200MDL740J is a high-density 16-point 24VDC discrete output module engineered for the GE VersaMax distributed I/O platform. Designed to operate at the intersection of field-level actuation and upper-layer control networks, the IC200MDL740J delivers reliable digital output signals to solenoids, relays, motor starters, and indicator lights across demanding industrial environments. Whether deployed in standalone machine control or integrated into a multi-node SCADA architecture, this module serves as a critical data endpoint in the smart factory connectivity chain — translating PLC command signals into precise physical actions on the plant floor.

In modern industrial sites, the IC200MDL740J does not operate in isolation. It functions as a downstream node within a layered communication architecture that begins at the sensor level and extends through PLCs, remote I/O racks, HMI panels, and enterprise SCADA systems. Its role in this chain is to receive discrete command data from the GE IC200CPU001 or IC200CPU002 VersaMax CPU modules via the local I/O bus, and to execute those commands with sub-millisecond response times — ensuring that actuation latency does not become a bottleneck in time-critical production sequences.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding the IC200MDL740J’s value requires tracing the full data flow from signal origination to physical actuation. In a typical smart factory deployment, field sensors — including proximity switches, photoelectric sensors, and pressure transducers — feed real-time process data upward through the GE IC200MDL640 discrete input module, which sits in the same VersaMax rack. The CPU module, such as the IC200CPUE05 with embedded Ethernet port, processes this input data against the ladder logic program and generates corresponding output commands within each scan cycle.

These output commands are written to the IC200MDL740J’s output register via the VersaMax backplane bus. The module then drives its 16 sourcing output channels to actuate downstream field devices — pneumatic valve solenoids, conveyor motor contactors, warning beacon lights, and safety relay coils. The entire signal path from sensor input to physical output can complete within a single PLC scan cycle, typically 5–20ms depending on program complexity and rack configuration.

For sites requiring remote monitoring and protocol bridging, the GE IC200PBI001 PROFIBUS-DP network interface module can be added to the VersaMax rack, enabling the entire I/O assembly — including the IC200MDL740J — to appear as a PROFIBUS slave node on a plant-wide DP network. This allows a Siemens S7-300 or S7-400 master PLC, or a SCADA gateway such as the Kepware KEPServerEX, to read and write I/O data across the PROFIBUS segment without requiring a dedicated GE CPU at each remote station.

In Ethernet/IP-based architectures, the GE IC200ETM001 Ethernet interface module provides TCP/IP connectivity for the VersaMax rack, enabling integration with Rockwell FactoryTalk View HMI systems, Wonderware InTouch SCADA platforms, and OPC-UA data aggregators. The IC200MDL740J’s output status — including point-level diagnostics and fault flags — can be mapped to SCADA tags, providing operators with real-time visibility into actuator states from the control room or remote monitoring dashboard.

For edge computing applications, the VersaMax rack can be paired with an Advantech WISE-5000 or similar industrial edge gateway, which polls the GE CPU via Modbus TCP or Ethernet/IP and forwards structured JSON data to cloud-based MES or ERP platforms. This positions the IC200MDL740J not merely as a field output device, but as a data-generating node in the IIoT architecture — its output states contributing to OEE calculations, predictive maintenance models, and digital twin simulations at the enterprise level.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is protocol fragmentation — sites where GE VersaMax racks, Siemens PROFIBUS networks, Modbus RTU serial devices, and Ethernet/IP controllers coexist without a unified data backbone. The IC200MDL740J, when deployed within a properly configured VersaMax system, directly addresses this fragmentation by serving as a standardized output endpoint that can be addressed by multiple upper-layer protocols through the appropriate network interface module.

Data silos are eliminated when the VersaMax rack’s network interface module — whether PROFIBUS-DP, Ethernet/IP, or GENIUS — exposes the IC200MDL740J’s I/O map to the plant-wide control network. SCADA systems can then write output commands and read feedback states without requiring protocol converters or custom middleware. This transparency extends to alarm management: if an output point on the IC200MDL740J fails to energize within the expected time window, the CPU can generate a fault code that propagates through the network to the SCADA alarm server, triggering operator notifications and logging the event for root cause analysis.

Remote diagnostics are further enhanced by the module’s built-in LED status indicators and the CPU’s diagnostic data tables, which can be polled by remote HMI panels or SCADA clients. Maintenance engineers can identify a failed output channel, verify field wiring continuity, and initiate corrective action without physically accessing the control panel — reducing mean time to repair (MTTR) and minimizing unplanned downtime. For production line transparency, the IC200MDL740J’s output states can be mapped to OEE dashboards, providing shift supervisors with real-time actuator utilization data and enabling data-driven decisions on maintenance scheduling and line balancing.

System expansion is straightforward within the VersaMax architecture. Additional IC200MDL740J modules can be added to existing racks, or new remote I/O drops can be established using the GE IC200CHS022 expansion chassis, without requiring changes to the network infrastructure or SCADA configuration — only incremental I/O mapping updates in the CPU program are needed.

Industrial Connectivity FAQ

Q1: What communication protocols does the GE IC200MDL740J support for SCADA integration?
The IC200MDL740J itself communicates via the VersaMax local I/O backplane bus. SCADA integration is achieved through the network interface module installed in the same rack — options include PROFIBUS-DP (IC200PBI001), Ethernet/IP (IC200ETM001), and GENIUS Bus (IC200GBI001). These interfaces expose the module’s I/O data to the plant network, enabling Kepware, Wonderware, iFIX, and other SCADA platforms to read output states and write control commands in real time.

Q2: How does the IC200MDL740J handle network instability or communication loss?
In the event of a network communication fault — such as a PROFIBUS-DP timeout or Ethernet/IP connection loss — the VersaMax CPU transitions to a configurable fault state. Output modules including the IC200MDL740J can be configured to hold last state, go to a safe de-energized state, or execute a predefined fault routine. This behavior is defined in the CPU’s I/O fault configuration table and ensures that field devices respond predictably during network interruptions, preventing uncontrolled actuator behavior.

Q3: Can the IC200MDL740J be integrated into a mixed-protocol environment with Siemens or Rockwell PLCs?
Yes. By adding a PROFIBUS-DP or Ethernet/IP network interface module to the VersaMax rack, the IC200MDL740J’s I/O data becomes accessible to any PROFIBUS master or Ethernet/IP scanner — including Siemens S7 series PLCs and Rockwell ControlLogix systems. This makes the VersaMax rack a protocol-agnostic remote I/O station, fully compatible with multi-vendor control architectures common in brownfield industrial sites.

Q4: What quality assurance and warranty coverage is provided for the IC200MDL740J?
All IC200MDL740J units supplied by ZYPLC undergo pre-shipment functional testing, including output channel verification, isolation resistance checks, and backplane communication validation. Each unit is covered by a warranty terms confirmed during quotation from the date of shipment. Availability is confirmed via RFQ for same-day or next-business-day dispatch, with DHL Express, FedEx International Priority, and sea freight options available to support global project timelines.
