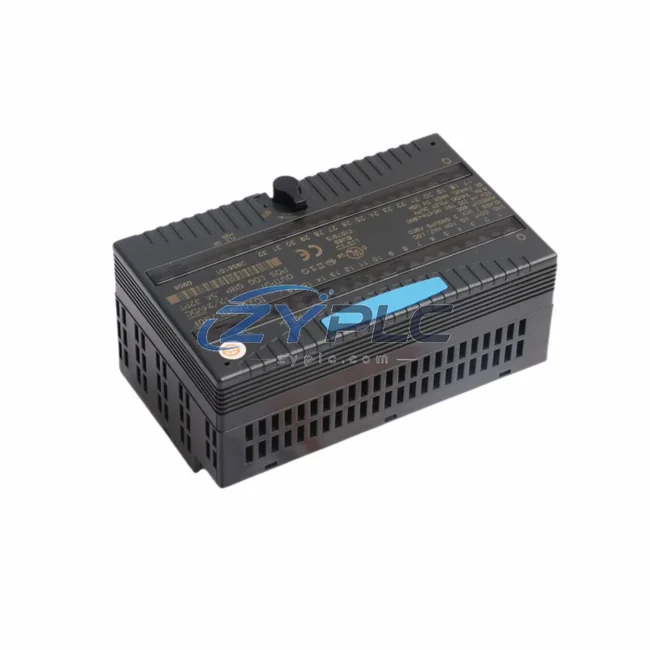

GE IC200MDL750 Output Module VersaMax

GE IC200MDL750 Output Module for VersaMax Automation

The GE Fanuc IC200MDL750 is a high-performance discrete output module engineered for the VersaMax programmable logic controller platform. Designed to meet the demanding requirements of modern industrial automation, this module delivers precise, low-latency digital output switching that directly contributes to reduced unplanned downtime, improved equipment utilization, and production line throughput. Whether deployed in motor control centers, conveyor drive systems, or multi-axis servo coordination panels, the IC200MDL750 provides the reliable switching foundation that industrial Automation systems depend on.

In today’s manufacturing environment, every millisecond of unnecessary actuator dwell time and every watt of idle-state power draw translates into measurable cost. The IC200MDL750 addresses this by offering fast output response times that keep machine cycle times tight, minimizing the gap between command issuance and mechanical execution. This directly supports production line rhythm optimization — reducing inter-cycle dead time and enabling higher overall equipment effectiveness (OEE) without additional capital investment in drive hardware.

All units supplied by ZYPLC are sourced from verified inventory channels, subjected to full functional output testing prior to dispatch, and covered by a warranty terms confirmed during quotation. Stock is maintained on-hand for shipment arranged after confirmation, supporting urgent MRO replacement and planned maintenance schedules alike.

Product Specification Table

System Compatibility and Application

The IC200MDL750 operates as a core execution node within the broader GE VersaMax control architecture. In a typical energy-optimized plant layout, the module interfaces directly with the IC200CPU001 or IC200CPU002 VersaMax CPU, receiving scan-cycle output commands and translating them into precise field-level switching actions with sub-millisecond latency. This tight CPU-to-output coupling is essential for maintaining deterministic control over variable-speed drives and motor starters.

On the input side, the IC200MDL750 is commonly paired with discrete input modules such as the IC200MDL640 or IC200MDL650, forming a balanced I/O architecture that captures real-time feedback from field sensors — including current transformers, proximity switches, and encoder signals — enabling closed-loop condition monitoring at the device level. When integrated with the IC200ALG260 analog input module, the system gains the ability to read 4–20 mA signals from power transducers, providing granular per-axis operating load data directly into the PLC scan cycle.

For drive-level energy regulation, the IC200MDL750 output signals are frequently used to command GE AF-600FP series variable frequency drives (VFDs), enabling speed-proportional motor control that eliminates fixed-speed overconsumption in pump, fan, and conveyor applications. The combination of discrete output switching from the IC200MDL750 and analog speed reference from the IC200ALG320 analog output module creates a dual-channel drive control strategy that maximizes energy efficiency across the full load range.

System-level visibility is achieved through integration with GE Proficy HMI/SCADA or panel-mounted QuickPanel+ operator interfaces, which aggregate real-time output state data, cycle counts, and fault diagnostics from the VersaMax backplane. Communication between the VersaMax system and plant-level SCADA or MES platforms is handled via the IC200PBI001 PROFIBUS DP master module or Ethernet-based modules such as the IC200ETM001, enabling seamless data exchange for energy reporting, predictive maintenance scheduling, and OEE dashboards.

Power distribution to the VersaMax I/O system is managed through the IC200PWR002 power supply module, which provides regulated 5 VDC backplane power with built-in overcurrent protection — ensuring that output module switching transients do not propagate upstream into the control power rail, a common source of hidden unplanned downtime in poorly designed panel architectures.

Maintenance and Replacement Notes

In high-cycle discrete manufacturing environments — such as automotive stamping, electronics assembly, and food and beverage packaging — the IC200MDL750 contributes to energy reduction through several interconnected mechanisms. First, its solid-state output design eliminates the mechanical wear and contact bounce associated with relay-based output modules, removing a common source of spurious re-energization cycles that inflate operating load without productive output.

Second, the module’s 32-point density allows consolidation of output functions that would otherwise require multiple relay racks or distributed terminal blocks, reducing panel wiring complexity and the associated resistive losses in long cable runs. In facilities where output modules are distributed across remote I/O drops using IC200BEM002 bus expansion modules, the IC200MDL750’s low self-consumption profile helps maintain power budget compliance across extended backplane configurations.

Third, when the VersaMax system is programmed with maintenance-focused ladder logic — using timed output suppression during non-productive intervals such as shift changeovers, scheduled breaks, or upstream starvation events — the IC200MDL750’s fast response time ensures that re-energization of downstream actuators occurs precisely when production resumes, without the warm-up delays that characterize slower output technologies. This capability directly reduces the energy cost of production restarts and supports lean manufacturing initiatives targeting zero-waste machine cycles.

Predictive maintenance integration is another key energy benefit. By logging IC200MDL750 output switching frequency and comparing it against baseline cycle data within the GE Proficy Plant Applications or a connected MES, maintenance teams can identify abnormal actuator cycling patterns that indicate mechanical degradation — catching issues before they escalate into unplanned downtime events that consume disproportionate energy during recovery production sprints.

ZYPLC maintains ready stock of the IC200MDL750 to support both planned maintenance replacements and emergency MRO procurement. Every unit undergoes pre-shipment functional testing to verify all 32 output channels, ensuring that field installation proceeds without commissioning delays. The warranty terms confirmed during quotation covers all output channel failures under normal operating conditions, providing procurement teams with the cost certainty needed for maintenance budget planning.

Product Sourcing FAQ

Q1: How does the IC200MDL750 contribute to measurable operational stability on the production line?
The IC200MDL750 uses solid-state transistor outputs rather than mechanical relays, eliminating contact bounce and reducing spurious re-energization cycles. Its sub-millisecond switching speed enables tighter machine cycle control, reducing idle actuator dwell time. When combined with VFD speed control via GE AF-600FP drives, the overall system can achieve significant reductions in motor load compared to fixed-speed, relay-switched architectures.

Q2: Is the IC200MDL750 compatible with existing VersaMax and Series 90 control systems?
Yes. The IC200MDL750 is fully compatible with the GE VersaMax modular I/O platform, including systems built around IC200CPU001, IC200CPU002, and IC200CHS series carriers. It can also be integrated into distributed I/O configurations using IC200BEM002 bus expansion modules. Compatibility with legacy Series 90-30 systems via remote I/O adapters should be verified against the specific system configuration.

Q3: What is the recommended replacement and testing process when substituting a failed output module?
For hot-swap replacement, ensure the VersaMax CPU is placed in STOP mode before removing the IC200MDL750 from the carrier. After seating the replacement module, verify all 32 output channel assignments in the hardware configuration tool (Proficy Machine Edition or equivalent), perform a forced-output test on each channel, and return the CPU to RUN mode. ZYPLC pre-tests every unit prior to shipment, reducing on-site commissioning time to a configuration verification step only.

Q4: What does the warranty terms confirmed during quotation cover, and how is a warranty claim processed?
The warranty terms confirmed during quotation provided by ZYPLC covers all output channel failures, backplane interface faults, and power rail anomalies attributable to manufacturing defects under normal operating conditions. Warranty claims are initiated by contacting ZYPLC at plc.sales@zyplc.com or +86 19859288691 with the order reference and a description of the fault. ZYPLC will arrange return logistics and dispatch a tested replacement unit upon fault verification, minimizing production downtime during the warranty resolution process.
