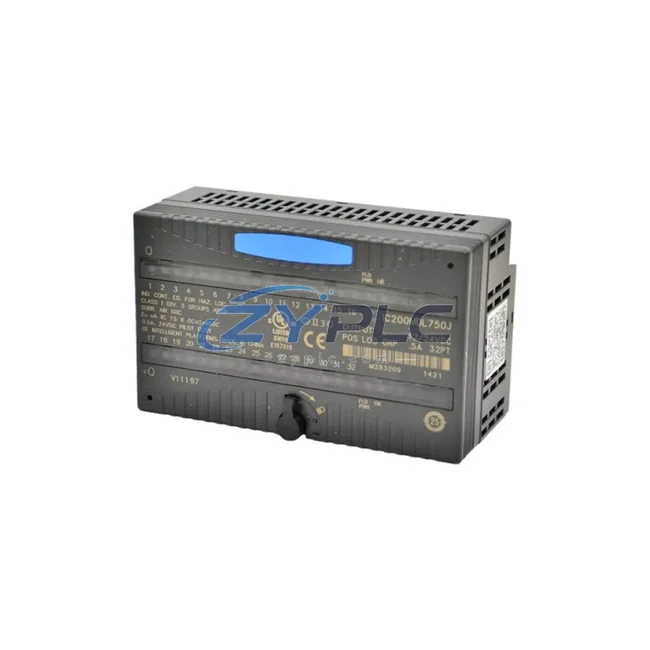

GE IC200MDL750E Industrial Output Module for VersaMax Systems

GE IC200MDL750E Industrial Output Module: Precision Data Links for Smart Factory Automation

The GE IC200MDL750E is a 16-point, 12/24VDC discrete output module engineered for the GE VersaMax distributed I/O platform. Designed to serve as a critical node in the industrial data chain, the IC200MDL750E bridges field-level actuators and control systems — enabling real-time signal delivery, deterministic output switching, and seamless integration across SCADA, HMI, and PLC architectures. Whether deployed in a greenfield smart factory or retrofitted into an existing automation network, this module delivers the output density, electrical isolation, and communication reliability that modern industrial connectivity demands.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully connected smart factory, the IC200MDL750E operates as the final output executor in a layered data flow that begins at the sensor level and terminates at the actuator. Field sensors — including proximity switches, photoelectric detectors, and pressure transducers — feed real-time process data upward through the I/O network. The GE IC200ALG220 analog input module captures continuous process variables, while the IC200MDL640 discrete input module aggregates digital field signals. These inputs are processed by the GE PACSystems RX3i CPU315, which executes ladder logic and function block programs to generate output commands routed directly to the IC200MDL750E.

The IC200MDL750E receives these commands via the VersaMax I/O backplane and switches its 16 output channels with millisecond-level response times — activating solenoid valves, motor contactors, indicator lights, and relay-driven actuators across the production line. For distributed architectures, the IC200PBI001 Profibus Network Interface Unit extends the VersaMax I/O rack over Profibus-DP, allowing the IC200MDL750E to operate as a remote I/O node under a GE PACSystems RX7i master controller. In Ethernet-based plants, the IC200ETM001 Ethernet Interface Module enables TCP/IP connectivity, making output status and diagnostics visible to SCADA systems such as GE CIMPLICITY or Wonderware InTouch HMI stations.

Variable frequency drives — including the GE AF-600 FP series — receive start/stop and speed-reference commands routed through the IC200MDL750E’s output channels, enabling coordinated motor control across conveyor systems, pumping stations, and HVAC loops. Edge gateways such as the GE Predix Edge node aggregate output state data alongside upstream sensor readings, forwarding consolidated datasets to cloud-based MES and ERP platforms for production analytics, OEE calculation, and predictive maintenance scheduling. The result is a complete, unbroken data chain — from field device to enterprise dashboard — with the IC200MDL750E serving as the reliable, high-speed output execution point.

Solving Data Isolation in Industrial Sites

Legacy industrial sites frequently suffer from protocol fragmentation: PLCs from different generations speak incompatible languages, remote I/O racks operate on proprietary buses, and SCADA systems lack visibility into field-level output states. The GE IC200MDL750E addresses these challenges directly within the VersaMax ecosystem.

By supporting multiple network interface units — including Profibus-DP, DeviceNet, and Ethernet/IP NIUs — the IC200MDL750E can be integrated into heterogeneous control networks without replacing existing infrastructure. A plant running a mixed environment of GE PACSystems controllers and third-party SCADA platforms can deploy the IC200MDL750E as a standardized output node, eliminating the data silos that arise when different I/O systems report through separate, disconnected pathways.

Remote monitoring is equally addressed: output channel status, fault diagnostics, and module health data are accessible in real time through the network interface, enabling maintenance engineers to identify open-circuit faults, overload conditions, or wiring errors from the SCADA workstation — without dispatching technicians to the field cabinet. This remote diagnostic capability reduces mean time to repair (MTTR), minimizes unplanned downtime, and supports the production line transparency that Industry 4.0 mandates.

For system expansion, the VersaMax platform’s modular architecture allows additional IC200MDL750E modules to be added to existing I/O racks without reprogramming the master PLC — the controller automatically recognizes new modules during the configuration scan cycle. This plug-and-expand capability makes the IC200MDL750E an ideal choice for phased factory upgrades, where output capacity must grow incrementally alongside production volume.

Every IC200MDL750E unit shipped by ZYPLC undergoes pre-shipment functional testing, verifying output switching accuracy, channel isolation integrity, and backplane communication handshake before dispatch. All units are covered by a warranty terms confirmed during quotation, with availability confirmed by RFQ availability ensuring rapid fulfillment for MRO replacement and project procurement requirements.

Industrial Connectivity FAQ

Q1: What communication protocols does the GE IC200MDL750E support?
The IC200MDL750E communicates natively over the VersaMax I/O backplane bus. When paired with GE VersaMax Network Interface Units (NIUs), the module supports Profibus-DP, DeviceNet, and Ethernet/IP — enabling integration with a wide range of PLC platforms, SCADA systems, and industrial Ethernet networks without protocol conversion gateways.

Q2: Is the IC200MDL750E compatible with GE PACSystems RX3i and RX7i controllers?
Yes. The IC200MDL750E is fully compatible with GE PACSystems RX3i and RX7i controllers when used with the appropriate VersaMax remote I/O network interface. It is also compatible with VersaMax Micro and VersaMax Nano controllers in local I/O configurations, making it a versatile output module across the GE automation product family.

Q3: How does the IC200MDL750E perform in high-cycle, time-sensitive applications?
The IC200MDL750E is designed for deterministic output switching with low-latency response times suitable for high-cycle discrete control applications. Its solid-state output architecture minimizes mechanical wear, and the module’s electrical isolation between output channels and the backplane bus ensures network communication stability is not affected by field-side load switching transients.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the IC200MDL750E?
All IC200MDL750E units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. Each unit undergoes pre-shipment functional testing — including output channel verification, isolation checks, and backplane communication validation — to ensure full operational integrity upon arrival. Availability is confirmed via RFQ for shipment arranged after confirmation to support urgent MRO and project timelines.
