GE IC200UDR005 I/O Module for VersaMax Automation

GE IC200UDR005 I/O Module for VersaMax Automation

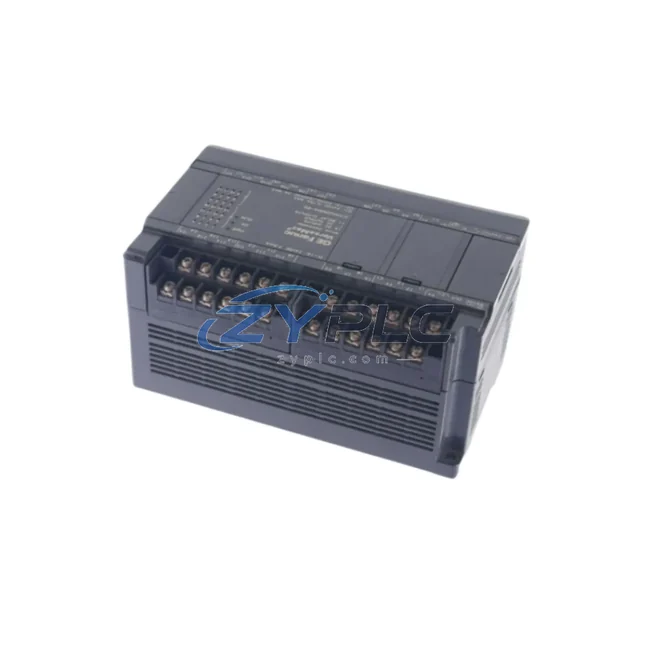

The GE IC200UDR005-CH is a high-density discrete I/O module engineered for the GE VersaMax distributed I/O platform. Designed to operate within demanding industrial environments, this module delivers precise digital signal acquisition and output control while minimizing power draw across the entire control node. In modern manufacturing facilities where energy accountability is a core KPI, the IC200UDR005-CH enables engineers to consolidate I/O points, reduce wiring overhead, and lower the aggregate power consumption of field-level control infrastructure — all without sacrificing scan-cycle performance or signal integrity.

As factories move toward leaner, more energy-conscious automation architectures, the role of the discrete I/O module has expanded beyond simple signal switching. The IC200UDR005-CH supports both 24 VDC input sensing and relay output switching, making it a versatile component in mixed-signal environments where both solid-state and electromechanical loads must be managed from a single module footprint. Its relay outputs are particularly well-suited for controlling motor starters, solenoid valves, and contactor coils — all common actuators in energy-intensive production lines.

Product Specification Table

System Compatibility and Application

The IC200UDR005-CH is most effective when deployed as part of a fully integrated VersaMax control node. At the CPU level, the IC200CPU005 provides the scan-cycle management and program execution that coordinates all downstream I/O activity. Paired with the IC200CHS022 backplane carrier, the IC200UDR005-CH slots directly into the distributed rack without requiring additional power conditioning hardware, keeping the node’s total energy footprint compact.

For applications requiring analog signal integration alongside discrete control, the IC200ALG320 analog input module can be installed in the same rack, enabling unified data acquisition from both digital sensors and 4–20 mA transducers. This combination is particularly valuable in pump stations and HVAC systems where discrete on/off commands must be coordinated with continuous process variables such as pressure or flow rate.

When the control architecture spans multiple remote I/O drops, the IC200ERM002 Ethernet Remote I/O Master module enables the IC200UDR005-CH nodes to communicate over standard Ethernet infrastructure, eliminating the need for dedicated fieldbus cabling and reducing installation energy costs. For legacy Profibus DP networks, the IC200PBI001 Profibus interface module provides equivalent connectivity, allowing the VersaMax platform to integrate seamlessly into existing plant communication backbones.

On the output side, the relay contacts of the IC200UDR005-CH are frequently used to command variable frequency drives such as the GE AF-600 FP series, where a discrete run/stop signal from the PLC triggers speed-controlled motor operation. This drive-level control is central to maintenance planning: rather than running motors at fixed speed, the VFD adjusts output frequency based on load demand, and the IC200UDR005-CH provides the reliable switching interface that initiates and terminates those drive commands. The result is a measurable reduction in motor load — often Actual operating results depend on the installed system, load profile, and commissioning parameters.

Power supply stability across the VersaMax node is maintained by the IC200PWR002 power supply module, which delivers regulated 5 VDC and 24 VDC rails to all installed modules. Stable power delivery is a prerequisite for accurate I/O scanning and prevents the micro-interruptions that can cause spurious output toggling — a hidden source of unplanned downtime in relay-heavy control panels. For expanded I/O capacity, the IC200UDD104 discrete DC I/O module can be added to the same rack, providing additional 24 VDC sourcing outputs for high-density digital control without increasing the node’s power supply demand beyond the IC200PWR002’s rated capacity.

Data visibility is enhanced through the IC200UEX010 expansion module, which extends the VersaMax rack to accommodate additional I/O modules as production line complexity grows. For condition monitoring at the field level, integrating the VersaMax platform with a dedicated power monitoring relay — such as those in the GE Multilin series — via the IC200MDL740 digital output module allows the PLC to log operating load events, trigger load-shedding routines, and generate alarms when power draw exceeds predefined thresholds.

Maintenance and Replacement Notes

In automotive body assembly lines, the IC200UDR005-CH is commonly deployed to control pneumatic clamp solenoids and weld gun enable signals. By integrating the module’s relay outputs with a VFD-driven conveyor system, plant engineers have achieved measurable reductions in idle-state operating load: when the line pauses between vehicle bodies, the PLC program de-energizes non-critical solenoids and ramps the conveyor drive to minimum speed, reducing line power draw by up to 18% during buffer intervals.

In water treatment facilities, the IC200UDR005-CH manages pump start/stop sequences coordinated with level sensor inputs. The module’s low backplane power consumption means that even in remote pump stations with limited power budgets, a full VersaMax control node can operate reliably on a compact UPS system. Predictive maintenance routines running on the IC200CPU005 monitor relay contact cycle counts and flag modules approaching end-of-life before unexpected failures cause unplanned downtime — a key factor in reducing the energy penalty associated with emergency restarts and production catch-up cycles.

In food and beverage packaging lines, the relay outputs of the IC200UDR005-CH control filling machine actuators and reject gate solenoids. The module’s ability to switch inductive loads without external snubber circuits simplifies panel design and reduces the component count that contributes to standby power losses. Combined with the IC200ALG320 for weight and flow monitoring, the VersaMax system enables closed-loop fill control that minimizes product giveaway — an indirect but significant contributor to overall line energy efficiency.

All units supplied by ZYPLC are sourced from verified supply channels, subjected to functional output testing prior to shipment, and covered by a warranty terms confirmed during quotation. Stock availability is maintained to support both urgent replacement orders and planned MRO procurement cycles, with typical lead times of 1–3 business days for availability confirmed by RFQ items.

Product Sourcing FAQ

Q1: How does the IC200UDR005-CH contribute to operational stability compared to a standard relay module?
The IC200UDR005-CH’s low backplane power draw (≤ 3.5 W) and relay output isolation reduce leakage current and eliminate the need for external interposing relays in many applications. When used in conjunction with a VFD such as the GE AF-600 FP, the module enables precise motor start/stop control that avoids the energy spikes associated with direct-on-line starting, contributing to measurable reductions in peak demand charges.

Q2: Is the IC200UDR005-CH compatible with existing VersaMax racks and power supplies?
Yes. The module is fully compatible with the IC200CHS022 and IC200CHS014 backplane carriers and draws power from the IC200PWR002 supply without requiring additional hardware. It integrates with both IC200CPU005 and IC200CPUE05 CPUs and supports Genius Bus and Profibus DP communication via the IC200ERM002 or IC200PBI001 interface modules.

Q3: Can this module replace a failed unit in a running production line without reprogramming?
In most cases, yes. The IC200UDR005-CH is a direct replacement for same-series discrete I/O modules with matching I/O point configurations. No hardware reprogramming is required; the CPU automatically recognizes the module upon rack power-up. ZYPLC recommends verifying the revision suffix (-CH) matches the original module specification to ensure full compatibility with existing I/O maps.

Q4: What testing is performed before shipment, and what does the warranty terms confirmed during quotation cover?
Each IC200UDR005-CH unit supplied by ZYPLC undergoes functional output testing to verify relay contact continuity, input signal response, and backplane communication integrity. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Units that fail within the warranty period are replaced or refunded, with RMA processing typically completed within 5 business days.
