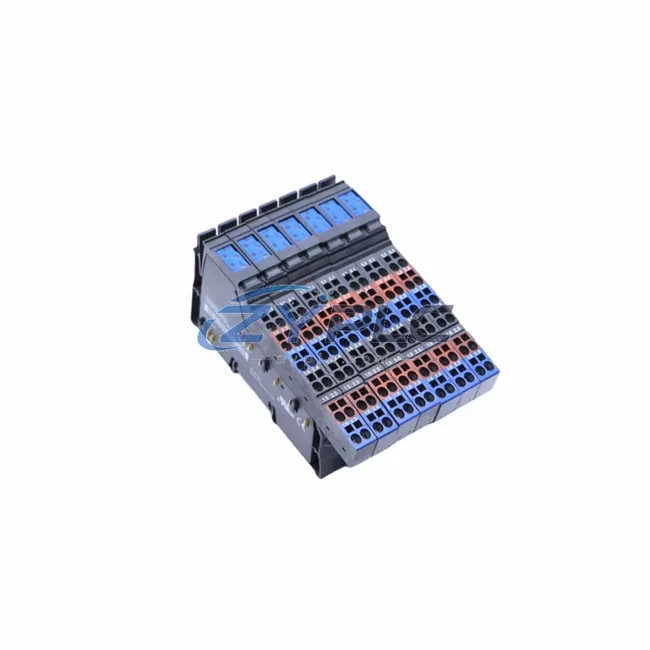

The GE IC220MDL642A is a mixed discrete I/O module engineered for deployment within GE’s VersaPoint distributed I/O architecture. Designed to operate as a field-level signal interface node, this module bridges the gap between physical process signals and the control layer, enabling seamless data exchange across multi-tier automation systems. Whether integrated into a standalone VersaPoint station or embedded within a broader GE PACSystems or VersaMax control platform, the IC220MDL642A delivers the signal density, electrical reliability, and system integration required for demanding industrial environments.

In modern layered automation architectures, the IC220MDL642A occupies a critical position at the I/O layer — receiving discrete input signals from field devices such as proximity sensors, limit switches, and pushbuttons, while simultaneously driving discrete output loads including solenoid valves, indicator lamps, and relay coils. This dual-function capability reduces module count, simplifies cabinet wiring, and lowers overall system cost without compromising signal integrity or response time.

Product Specification Table

System Compatibility Notes

The IC220MDL642A does not function in isolation — its value is realized through coordinated integration with the full VersaPoint and GE PACSystems ecosystem. At the control layer, a GE PACSystems RX3i CPU (such as the IC695CPU310 or IC695CPU315) serves as the primary logic engine, executing ladder logic and function block programs that govern I/O behavior across the entire station network. The CPU communicates with VersaPoint I/O stations via a PROFIBUS-DP or Ethernet/IP network adapter, such as the IC200PBI002 PROFIBUS interface module, which acts as the network gateway translating station-level data into controller-readable process images.

Power distribution within the VersaPoint station is managed by the IC220PWR001 power supply module, which conditions incoming 24 VDC bus power and distributes it across the backplane to all connected I/O modules including the IC220MDL642A. Proper power segmentation — often achieved using IC220TBK062 terminal block assemblies — ensures that output faults on one segment do not propagate to adjacent I/O groups, preserving system availability during partial fault conditions.

For applications requiring analog signal acquisition alongside discrete control, the IC220MDL642A is frequently deployed in the same VersaPoint station as the IC220ALG260 analog input module, enabling a single station to handle both process variable monitoring and discrete actuator control. In redundant architectures, a secondary VersaPoint station equipped with an IC200MDL740 output module may be configured as a hot-standby I/O path, with the primary controller managing switchover logic to maintain output continuity during module replacement or communication interruption.

At the human-machine interface layer, operator workstations running GE’s Proficy HMI/SCADA — iFIX or CIMPLICITY — consume the I/O data published by the IC220MDL642A through the controller’s OPC-UA or Modbus TCP data server, providing real-time visualization of field device states and alarm management. For local panel indication, the IC200UDD104 discrete output module may supplement the IC220MDL642A in high-density output applications where additional relay-driven loads must be controlled from the same logical program.

Wiring termination for the IC220MDL642A is handled through the VersaPoint carrier’s integrated terminal blocks, eliminating the need for separate marshalling panels in compact cabinet designs. This architecture supports rapid module swap without rewiring, a critical feature for maintenance teams operating under tight production schedules. All units supplied by ZYPLC are tested for functional integrity prior to shipment and covered under a warranty terms confirmed during quotation, ensuring long-term supply confidence for MRO and project procurement teams.

Industrial Application Notes

The IC220MDL642A is deployed across a wide range of industrial sectors where distributed I/O architecture is preferred over centralized wiring. In discrete manufacturing environments — including automotive assembly, electronics production, and packaging lines — the module interfaces with pneumatic valve banks and conveyor drive signals, enabling the control system to manage complex sequencing logic with deterministic response times. Its compact VersaPoint form factor allows installation close to the process, reducing cable runs and improving signal quality in electrically noisy environments.

In power generation and electrical substation automation, the IC220MDL642A handles status inputs from circuit breakers, isolators, and protection relays, while driving output commands to motorized switchgear and alarm annunciators. The module’s 24 VDC operating range aligns with standard substation DC auxiliary supply systems, simplifying integration without additional signal conditioning hardware.

In water and wastewater treatment facilities, the module monitors pump run/fault status, valve open/closed feedback, and level switch states, while controlling pump start/stop commands and valve actuators. Its wide operating temperature range and IP20 protection rating make it suitable for installation in field junction boxes and local control panels adjacent to process equipment. For oil and gas, petrochemical, and mining applications, the IC220MDL642A is integrated into safety-instrumented system (SIS) architectures as a non-safety I/O node, handling general-purpose discrete signals that complement dedicated safety I/O modules in the same control cabinet.

Product Compatibility FAQ

Q1: Is the IC220MDL642A compatible with both GE VersaMax and PACSystems RX3i control platforms?
The IC220MDL642A is a VersaPoint series module and is designed for use within VersaPoint I/O stations. These stations can be connected to GE PACSystems RX3i and RX7i controllers via PROFIBUS-DP using the IC200PBI002 network interface, or via Ethernet/IP using compatible communication adapters. Direct backplane integration with VersaMax CPUs is not supported; however, VersaPoint stations function as remote I/O drops on the same network, providing full system integration with the broader GE control architecture.

Q2: Can the IC220MDL642A be hot-swapped during live system operation?
VersaPoint modules support removal and insertion under power (RIUP) when the station is configured for this mode and the system controller supports I/O fault tolerance. Before performing a hot-swap, verify that the controller program includes appropriate fault handling logic to manage the temporary loss of I/O data during module replacement. ZYPLC recommends maintaining a spare IC220MDL642A in inventory to minimize downtime — all units are supplied with a warranty terms confirmed during quotation from date of shipment.

Q3: What is covered under the warranty terms confirmed during quotation, and how does ZYPLC support long-term maintenance procurement?
The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. ZYPLC supports RFQ sourcing for IC220MDL642A and related VersaPoint components to support both emergency replacement and planned maintenance procurement. For long-term maintenance contracts or multi-unit project orders, contact the ZYPLC technical sales team to discuss availability, lead times, and volume pricing.
