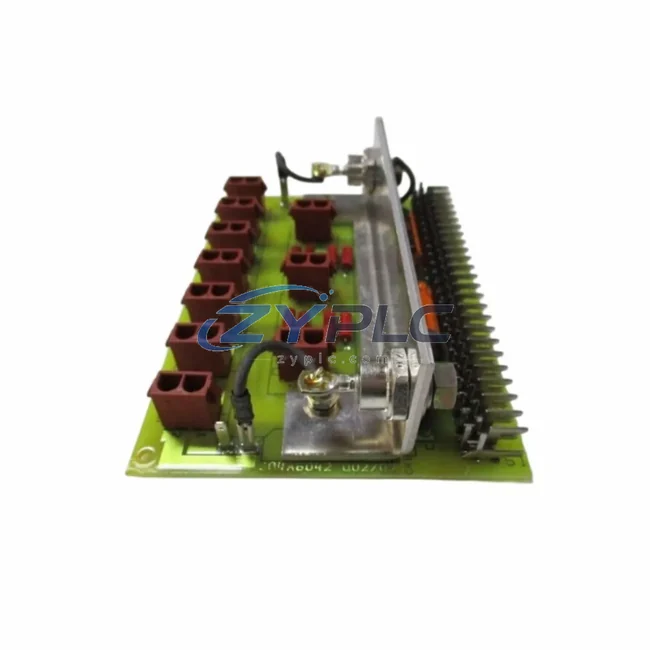

GE IC3600ADAH1C Analog Driver for Speedtronic

GE IC3600ADAH1C Analog Driver for Speedtronic Mark II

The GE IC3600ADAH1C is a precision analog driver board engineered for deployment within the GE Speedtronic Mark II turbine control system — one of the most widely installed gas turbine automation platforms in power generation, oil & gas, and industrial process environments. Rather than functioning as a standalone component, the IC3600ADAH1C occupies a critical position within the layered control architecture of the Mark II system, serving as the analog signal conditioning and drive interface between the digital control core and the physical actuator layer. Understanding its role within the full system hierarchy is essential for engineers responsible for turbine control integration, commissioning, and long-term maintenance planning.

In a complete Speedtronic Mark II control system, the IC3600ADAH1C operates in close coordination with the central processor board (such as the IC3600EPSC1 or IC3600EPSC1A), which issues control commands based on turbine speed, temperature, and load feedback. These commands are routed through the analog driver board to produce the precise current and voltage signals required to position fuel control valves, inlet guide vane actuators, and other critical final control elements. The board’s analog output accuracy directly determines the turbine’s ability to maintain stable speed regulation, load sharing, and protective response — making it one of the most operationally sensitive boards in the entire rack assembly.

The IC3600ADAH1C is housed within the standard Speedtronic Mark II card cage, sharing the backplane with boards such as the IC3600LRPB1A (logic relay and protection board), the IC3600SRLY1A (speed relay board), and the IC3600TCQA1 (thermocouple input board). This shared backplane architecture means that signal integrity on the IC3600ADAH1C directly affects the performance of adjacent I/O boards. Engineers replacing or commissioning this board must account for backplane connector condition, grounding continuity, and inter-board signal timing to ensure system-level stability rather than isolated component performance.

From a power layer perspective, the IC3600ADAH1C receives regulated DC supply from the Mark II power distribution assembly, which typically includes redundant power supply modules such as the IC3600PSCA1 or equivalent regulated supply boards. Voltage stability at the power input terminals of the analog driver board is a prerequisite for output linearity and actuator positioning accuracy. In installations where power supply aging has introduced ripple or voltage sag, the IC3600ADAH1C may exhibit erratic analog output behavior that is often misdiagnosed as a board-level fault. A systematic architecture review — covering both the power supply and the driver board — is recommended before component replacement.

At the network and communications layer, the Speedtronic Mark II system relies on hardwired serial communication and dedicated I/O signal paths rather than modern fieldbus protocols. The IC3600ADAH1C interfaces with the system’s internal signal bus through edge connectors that must be inspected for oxidation, pin deformation, and contact resistance during any maintenance cycle. In systems that have been upgraded to include a Mark V or Mark VIe supervisory overlay — using communication gateways such as the IS200ESELH1A or equivalent Ethernet interface modules — the analog driver board continues to serve its original function within the legacy control layer while the supervisory system monitors turbine parameters at a higher abstraction level.

For facilities managing mixed-generation turbine fleets, the IC3600ADAH1C represents a critical spare holding. Its availability directly affects the mean time to repair (MTTR) for Mark II-controlled turbines, and its absence from the spare parts inventory can result in extended outages during unplanned maintenance events. ZYPLC maintains availability subject to RFQ confirmation of the IC3600ADAH1C with full functional testing, supported by a warranty terms confirmed during quotation covering manufacturing defects and operational failures under normal service conditions. Each unit is inspected for component-level integrity, analog output calibration range, and connector condition prior to shipment.

Product Specification Table

System Compatibility Notes

A fully operational Speedtronic Mark II turbine control system integrates the IC3600ADAH1C within a coordinated assembly of functional boards, each assigned to a specific layer of the control hierarchy. The central processing function is handled by boards such as the IC3600EPSC1A, which executes the turbine control sequence and generates the analog setpoint commands that the IC3600ADAH1C translates into physical drive signals. Protection and relay logic is managed by the IC3600LRPB1A, which monitors trip conditions and can override analog outputs during emergency shutdown sequences.

Temperature measurement across the turbine’s combustion and exhaust zones is performed by thermocouple input boards such as the IC3600TCQA1, which feed exhaust temperature spread data back to the processor for load limiting and over-temperature protection. Speed sensing is handled by dedicated boards including the IC3600SRLY1A, which provides the speed relay signals used for startup sequencing, overspeed protection, and synchronization control. The analog driver board must respond accurately to the setpoint commands generated from these upstream inputs — any degradation in its output linearity will directly affect the turbine’s ability to track speed and load targets.

On the power supply side, the IC3600PSCA1 and associated regulated supply modules provide the stable DC voltages required by all active boards in the rack, including the IC3600ADAH1C. In redundant power configurations, dual supply modules are used to ensure that a single power supply failure does not interrupt turbine control. The analog driver board’s sensitivity to supply voltage variation makes power supply health a key maintenance indicator in any Mark II system reliability program.

For human-machine interface functions, Mark II systems in active service are often paired with dedicated operator panels or, in modernized installations, with HMI workstations running GE’s turbine supervisory software. Communication gateways such as the IS200ESELH1A Ethernet interface module enable data exchange between the legacy Mark II control layer and modern SCADA or DCS platforms, allowing operators to monitor turbine parameters and alarm states without replacing the core control hardware. The IC3600ADAH1C continues to serve its original drive function within this hybrid architecture, providing the analog output layer that the digital supervisory system relies upon for actuator positioning feedback.

Industrial Application Notes

The GE IC3600ADAH1C finds its primary application in power generation facilities operating GE Frame 5, Frame 6, and Frame 7 gas turbines equipped with Speedtronic Mark II control systems. In these environments, the board drives fuel control valve actuators and inlet guide vane positioners that directly determine turbine output and efficiency. Utilities and independent power producers operating aging turbine fleets depend on the continued availability of Mark II boards to maintain generation capacity without undertaking full control system upgrades.

In oil and gas processing facilities, Speedtronic Mark II systems control gas compression turbines used in pipeline transmission and LNG processing. The IC3600ADAH1C’s role in these applications extends to driving antisurge control valve actuators and load-sharing circuits in multi-unit compressor trains. Reliability of the analog driver board is directly linked to process throughput and compressor protection system integrity.

In petrochemical and refinery environments, Mark II-controlled turbines drive process compressors and pumps in continuous operation. Planned maintenance windows are infrequent, making the availability of tested spare boards such as the IC3600ADAH1C a critical factor in turnaround planning. The board’s compatibility with the existing backplane and power distribution architecture eliminates the need for system-level reconfiguration during replacement, reducing commissioning time and minimizing production impact.

For mining and metals processing operations using gas turbine-driven generators for site power, the IC3600ADAH1C supports stable frequency and voltage regulation through precise analog control of the turbine’s fuel and air systems. In these remote or semi-remote installations, local spare parts holdings are essential, and the warranty terms confirmed during quotation provided with each ZYPLC-supplied unit offers procurement teams a reliable quality assurance baseline for inventory planning.

Product Compatibility FAQ

Q1: Is the IC3600ADAH1C directly interchangeable with other analog driver board variants in the Speedtronic Mark II system?
The IC3600ADAH1C is a specific revision of the analog driver board within the Mark II card family. While it shares the same physical form factor and backplane connector pinout as related variants, functional interchangeability depends on the specific turbine control application and the software configuration of the central processor board. Engineers should verify the board revision against the turbine’s original equipment documentation and the Mark II system wiring diagram before installation. ZYPLC’s technical team can assist with cross-reference verification based on the turbine model and control panel configuration.

Q2: What commissioning steps are required after replacing the IC3600ADAH1C in an operating Mark II system?
Following physical installation, the replacement board must be verified for correct seating on the backplane connector and proper grounding continuity. Analog output calibration should be confirmed against the turbine’s control specification, including zero and span verification for each output channel driving fuel control and guide vane actuators. A controlled startup sequence — typically performed with the turbine on turning gear — allows engineers to verify actuator response and confirm that the processor board is receiving correct position feedback before returning the unit to service. All calibration records should be updated in the turbine’s maintenance log.

Q3: What does the warranty terms confirmed during quotation cover for the IC3600ADAH1C supplied by ZYPLC, and how does it support long-term maintenance planning?
The warranty terms confirmed during quotation covers manufacturing defects and operational failures occurring under normal service conditions within the Speedtronic Mark II system environment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. For maintenance planners, the warranty period provides a defined quality assurance window that aligns with annual turbine inspection cycles, allowing facilities to schedule board replacements with confidence in the supplied component’s reliability. ZYPLC supports warranty claims through direct technical contact, with replacement or repair options available based on failure analysis.
