GE IC600BF914K Output for Series Six

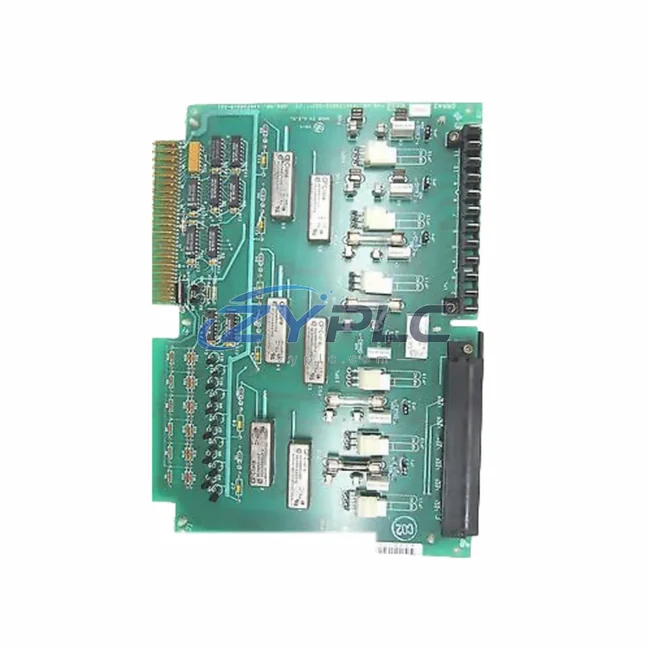

GE IC600BF914K Output for Series Six: Precision Relay Control for Optimized Automation

The GE IC600BF914K is a relay output module engineered for the GE Series Six programmable logic controller platform — one of the most widely deployed industrial control architectures in process manufacturing, discrete assembly, and utility automation. Designed to deliver reliable, high-cycle switching performance, the IC600BF914K enables production facilities to reduce unplanned downtime risk at the actuator level, improve equipment utilization rates, and maintain tighter control over production line timing. For facilities seeking to lower operational energy costs without replacing entire control systems, this module represents a cost-effective, drop-in upgrade path within the existing Series Six infrastructure.

In modern industrial maintenance planning strategies, relay output modules are often overlooked in favor of higher-level controllers or drives. However, the IC600BF914K plays a critical role in the energy chain: it is the final execution point between the PLC’s logic decisions and the physical loads — motors, solenoids, contactors, and heating elements — that consume the majority of a facility’s electrical energy. By ensuring precise, low-latency switching with minimal contact bounce and reliable coil isolation, the IC600BF914K prevents the micro-inefficiencies that accumulate into significant unplanned downtime over thousands of daily switching cycles.

Product Specification Table

System Compatibility and Application

The IC600BF914K does not operate in isolation — its maintenance planning value is fully realized when integrated within a well-structured Series Six automation architecture. At the controller level, the IC600CB526A CPU module coordinates all logic execution, determining precisely when each relay output should energize or de-energize based on real-time process feedback. This tight coupling between CPU decision cycles and relay switching minimizes the dwell time of energized loads, directly reducing unnecessary power consumption.

On the power supply side, the IC600PM502K power supply module provides stable, regulated DC bus voltage to the Series Six rack, ensuring that relay coil actuation is consistent and free from voltage sag — a common cause of contact chatter that wastes energy and accelerates contact wear. Pairing the IC600BF914K with the IC600PM502K in the same rack ensures the output module operates within its optimal electrical envelope.

For applications requiring analog feedback to close the energy control loop, the IC600BF831K analog input module captures real-time current, temperature, or pressure signals from field sensors. This data feeds back into the IC600CB526A CPU, enabling the controller to make maintenance decisions — for example, reducing motor run time when process variables indicate that production targets have been met ahead of schedule.

In drive-intensive production lines, the IC600BF914K relay outputs are frequently used to command GE Series Six-compatible variable frequency drives (VFDs) and soft starters. By issuing precise start/stop and speed-select commands through the relay contacts, the module enables the drive system to operate motors at optimal load points rather than running at full speed continuously. This approach, combined with the IC600BF904K discrete input module for feedback confirmation, creates a closed-loop motor control strategy that can help restore stable operation when a compatible replacement is required.

For facilities that have integrated HMI visualization, the IC600FP500K operator interface panel provides real-time visibility into relay output states, allowing operators to identify loads that are energized longer than expected — a key indicator of process inefficiency or equipment malfunction. When combined with the IC600LX624L communications module, relay output status data can be transmitted over industrial networks to SCADA systems or maintenance planning platforms for trend analysis and predictive maintenance scheduling.

The IC600YB900A I/O expansion baseplate allows facilities to scale their relay output capacity without replacing the existing Series Six rack infrastructure, making it straightforward to add the IC600BF914K to existing installations as production lines expand. This modularity is central to the Series Six platform’s long-term maintenance planning value: facilities can incrementally improve control granularity — and therefore energy efficiency — without capital-intensive system replacements.

Maintenance and Replacement Notes

In a typical discrete manufacturing environment, the IC600BF914K contributes to maintenance planning across several dimensions. First, by enabling the Series Six PLC to implement time-of-use load shedding strategies — automatically de-energizing non-critical loads during peak tariff periods — the module directly reduces electricity costs without requiring operator intervention. The relay outputs can be programmed to follow demand response schedules, cycling auxiliary equipment such as conveyor drives, cooling fans, and pneumatic valve actuators in coordination with production line throughput requirements.

Second, the IC600BF914K supports predictive maintenance workflows by providing contact wear data through cycle count monitoring in the PLC program. As relay contacts approach their rated cycle life, the control system can flag the module for scheduled replacement during planned maintenance windows — preventing unexpected failures that cause unplanned downtime, which is one of the highest-cost energy events in manufacturing (idle lines with HVAC, lighting, and auxiliary systems running consume energy without producing output).

Third, in lines where production pace (takt time) optimization is a priority, the IC600BF914K’s low-latency relay switching ensures that actuator response times are consistent and predictable. This consistency allows production engineers to tighten inter-station timing, reduce buffer inventory between workstations, and improve overall equipment effectiveness (OEE) — all of which translate to lower operating load per unit produced.

All IC600BF914K units supplied by ZYPLC are sourced from verified industrial surplus and authorized distribution channels, subjected to full functional testing under load conditions, and shipped with a warranty terms confirmed during quotation. RFQ-confirmed availability supports that replacement modules reach facilities within 1–3 business days, minimizing the duration of any unplanned downtime event.

Product Sourcing FAQ

Q1: How does the IC600BF914K contribute to measurable operational stability in a production facility?
The IC600BF914K enables the GE Series Six PLC to execute precise load control strategies — including demand response scheduling, takt-time-optimized actuation, and idle-state load shedding. By eliminating unnecessary actuator energization and reducing contact bounce-related micro-cycling, facilities typically observe a reduction in auxiliary load operating load. The exact savings depend on the number of controlled loads, their duty cycles, and the sophistication of the PLC program logic.

Q2: Is the IC600BF914K compatible with my existing Series Six rack and backplane?
Yes. The IC600BF914K is designed for direct installation into GE Series Six PLC racks and is compatible with standard Series Six backplanes and power supply modules, including the IC600PM502K. No rack modifications are required. Always verify slot addressing and I/O configuration in your Series Six programming software before installation.

Q3: Can the IC600BF914K replace a failed output module without reprogramming the PLC?
In most cases, yes. Because the IC600BF914K is a direct form-fit-function replacement for compatible Series Six relay output modules, the existing PLC program and I/O addressing remain valid. After physical installation, a functional test should be performed to confirm all output channels respond correctly to PLC commands before returning the line to production.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process?
Every IC600BF914K unit shipped by ZYPLC undergoes full functional testing under representative load conditions prior to dispatch. The warranty terms confirmed during quotation covers defects in materials and workmanship under normal operating conditions. If a unit fails within the warranty period, ZYPLC will provide a replacement or full refund. Contact our technical team at plc.sales@zyplc.com or +86 19859288691 to initiate a warranty claim.
