GE IC600BF943K Industrial Analog Output for Series Six Systems

GE IC600BF943K Industrial Analog Output for Series Six Systems: Bridging the Industrial Data Link in Smart Factory Environments

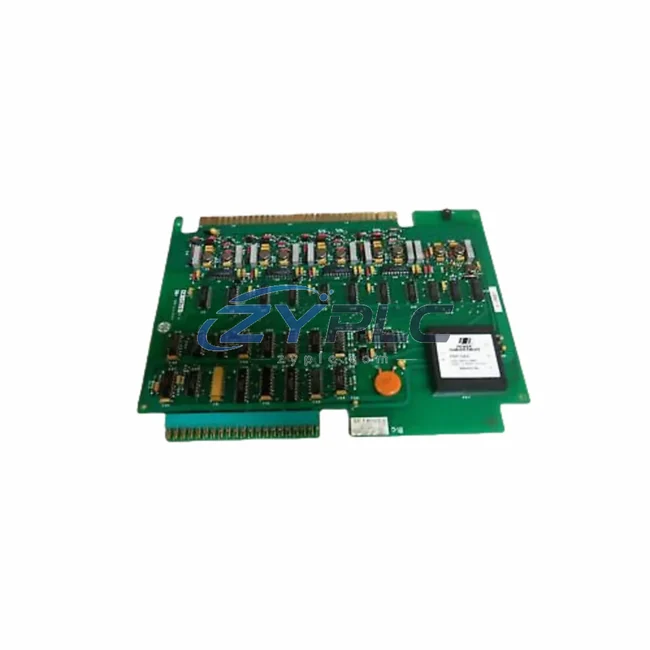

In modern industrial automation, the ability to translate digital control commands into precise analog signals is the foundation of every closed-loop process. The GE IC600BF943K is a high-performance analog output module engineered for the GE Series Six PLC platform, delivering reliable signal conversion across the full spectrum of manufacturing, energy, chemical processing, and infrastructure applications. Rather than functioning as a standalone component, the IC600BF943K is designed to operate as an integral node within a layered automation architecture — connecting the control layer to field devices, actuators, and process instrumentation through a stable, deterministic analog signal chain.

Within a complete Series Six control system, the IC600BF943K occupies the critical output layer, receiving processed data from the CPU module and converting it into 4–20 mA or 0–10 V analog signals that drive control valves, variable frequency drives, proportional solenoids, and other final control elements. Its role in the data flow is not passive — it is the last point of digital-to-physical translation before a command becomes a physical action on the plant floor.

Compatibility & Integration Notes

Connected Automation Data Flow

The IC600BF943K does not operate in isolation. Its value is fully realized when integrated into a coherent Series Six control architecture where every layer communicates with precision and reliability. At the top of the hierarchy, a GE IC600CP620L or IC600LX624L CPU module executes the control program, processes sensor feedback, and issues output commands to the I/O bus. The IC600BF943K receives these commands and converts them into analog signals that directly drive field devices.

On the input side, analog process variables — temperature, pressure, flow, level — are captured by the GE IC600BF831K analog input module, which feeds real-time data back to the CPU for closed-loop PID control. This input-output pairing forms the backbone of any continuous process control loop. Power to the entire rack is supplied by the GE IC600PM504 power supply module, which ensures stable voltage regulation across all installed I/O modules, including the IC600BF943K.

For systems requiring expanded I/O capacity, the GE IC600CB526 I/O expander or remote I/O base allows the IC600BF943K to be deployed in distributed configurations — extending analog output capability to remote process areas without additional CPU overhead. Communication between the main rack and remote I/O stations is managed through the Series Six I/O bus, maintaining deterministic scan times and signal integrity across longer cable runs.

At the HMI and SCADA integration layer, operator workstations running GE iFIX or Cimplicity SCADA software receive real-time process data from the CPU, including the current output values driven by the IC600BF943K. This allows operators to monitor valve positions, drive speeds, and actuator states from a centralized interface. The GE IC600YB841A communications module facilitates data exchange between the Series Six CPU and upper-level SCADA or DCS systems, enabling full process transparency.

For drive control applications, the IC600BF943K analog output signal is commonly wired to the reference input of variable frequency drives such as the GE AF-600FP series, enabling precise speed control of pumps, fans, compressors, and conveyors. In parallel, discrete output modules such as the GE IC600BF902K handle on/off switching for motors, contactors, and solenoid valves, working alongside the IC600BF943K to provide a complete mixed-signal output strategy. Additional analog output channels can be added using the GE IC600BF841K module, which complements the IC600BF943K in high-channel-count applications requiring simultaneous multi-loop control.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is data isolation — the inability to move process information seamlessly between field devices, PLCs, and supervisory systems. The IC600BF943K, as part of the GE Series Six ecosystem, directly addresses this challenge by providing a standardized analog output interface that is compatible with virtually all field instrumentation, regardless of manufacturer.

In plants where multiple control platforms coexist, the Series Six architecture — anchored by modules like the IC600BF943K — can be integrated with modern SCADA gateways and edge computing devices that translate Series Six I/O data into OPC-UA, Modbus TCP, or PROFINET formats. This allows legacy analog output data to be consumed by modern MES, ERP, and cloud analytics platforms, eliminating data silos without requiring a full system replacement.

For remote monitoring applications, the analog output values driven by the IC600BF943K can be mirrored to remote I/O nodes or transmitted via industrial Ethernet gateways to centralized monitoring centers. This enables real-time remote diagnostics, predictive maintenance alerts, and production transparency across geographically distributed facilities. Engineers can verify actuator response, detect signal drift, and perform loop calibration remotely — reducing the need for on-site intervention and minimizing unplanned downtime.

System expansion is equally straightforward. The modular architecture of the Series Six platform allows additional IC600BF943K modules to be added to existing racks as process requirements grow, without disrupting ongoing production. Each module is pre-tested before shipment and covered by a warranty terms confirmed during quotation, ensuring that expansion projects proceed on schedule with full confidence in component reliability.

Industrial Connectivity FAQ

Q1: Is the GE IC600BF943K compatible with modern SCADA and HMI systems?
Yes. While the IC600BF943K is a native Series Six I/O module, its analog output signals are standard 4–20 mA or voltage-based, making them compatible with any SCADA, DCS, or HMI system capable of reading analog inputs. For digital integration, the Series Six CPU communicates with upper-level systems via communication modules such as the IC600YB841A, enabling full SCADA/HMI connectivity without signal conversion hardware.

Q2: Can the IC600BF943K be used in distributed or remote I/O configurations?
Yes. The Series Six platform supports remote I/O expansion via dedicated expander bases and communication links. The IC600BF943K can be installed in remote I/O racks located away from the main CPU, allowing analog output capability to be distributed across large plant areas. Signal integrity is maintained through the Series Six I/O bus protocol, which is optimized for deterministic, low-latency communication in industrial environments.

Q3: What is the warranty coverage and how is the module tested before shipment?
Every IC600BF943K supplied by ZYPLC is covered by a warranty terms confirmed during quotation from the date of shipment. Each unit undergoes functional testing prior to dispatch, verifying analog output accuracy, backplane communication, and electrical integrity. Test reports are available upon request. In the event of a warranty claim, ZYPLC provides rapid replacement or repair support to minimize production impact.

Q4: How does the IC600BF943K support system scalability as production requirements grow?
The modular design of the Series Six platform allows additional IC600BF943K modules to be inserted into available rack slots without system reconfiguration. For applications requiring more output channels than a single rack can accommodate, remote I/O expansion provides a seamless path to increased capacity. ZYPLC supports RFQ sourcing for IC600BF943K and complementary Series Six modules, enabling fast delivery for both initial installations and capacity expansion projects.
