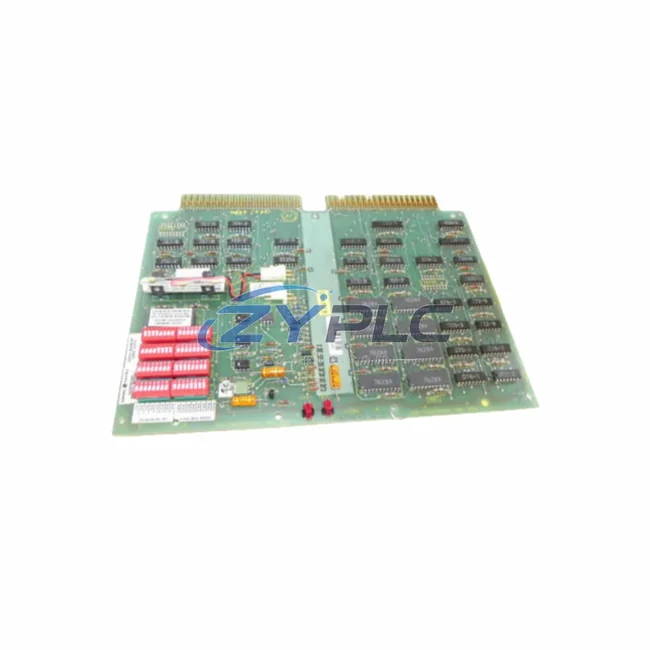

GE IC600BF949L ASCII Basic I/O Module for Series Six

GE IC600BF949L ASCII Basic I/O Module for Series Six

The GE IC600BF949L ASCII Basic I/O Module is a purpose-built communication and data-handling component designed for seamless integration within the GE Series Six programmable logic controller architecture. Rather than functioning as a standalone peripheral, the IC600BF949L occupies a defined role within a layered automation hierarchy — bridging the gap between the control layer and external ASCII-based devices such as barcode readers, printers, weighing terminals, and serial communication instruments. Understanding this module’s value requires examining how it interacts with the broader control system, from the CPU backplane to the field device layer.

Product Specification Table

System Compatibility Notes

The IC600BF949L does not operate in isolation. Its effectiveness is directly tied to the coherence of the surrounding Series Six control architecture. At the control layer, the IC600CP620L CPU Module serves as the central processing unit, executing ladder logic programs and managing data table exchanges with all installed I/O modules, including the IC600BF949L. The CPU communicates with the ASCII module through the shared backplane bus, enabling real-time data transfer between the BASIC program running on the IC600BF949L and the PLC’s register and coil tables.

Power integrity is foundational to reliable ASCII communication. The IC600PM502K Power Supply Module provides regulated 5 VDC and 24 VDC rails to the Series Six rack, ensuring that the IC600BF949L and co-installed modules such as the IC600BF831K Discrete Input Module and IC600BF902K Analog Output Module receive stable operating voltage. Voltage fluctuations at the rack level can introduce serial communication errors, making a properly rated power supply a non-negotiable element of the architecture.

For applications requiring expanded I/O capacity, the IC600CB526L I/O Expansion Cable and IC600YB841K Remote I/O Adapter allow the Series Six system to extend its physical reach across the control cabinet or to remote field panels. In these configurations, the IC600BF949L remains mounted in the local rack while discrete and analog I/O modules are distributed to remote racks — a common topology in large-scale process control and material handling systems.

At the network layer, the IC600LX624L LAN Interface Module enables the Series Six system to participate in plant-wide Ethernet or proprietary GE communication networks, allowing supervisory systems and SCADA platforms to access data collected and processed by the IC600BF949L. This integration supports centralized monitoring, alarm management, and production reporting without requiring manual data extraction from the PLC.

Human-machine interface requirements are addressed through compatible operator panels and HMI terminals connected via the serial ports managed by the IC600BF949L itself, or through dedicated HMI stations linked to the CPU via the LAN interface. Terminal blocks and IC600 Series wiring accessories complete the field wiring layer, ensuring that signal integrity is maintained from the sensor or instrument all the way through to the PLC data table.

Industrial Application Notes

The IC600BF949L finds its most demanding applications in industries where ASCII serial communication between PLCs and intelligent field devices is a core operational requirement. In manufacturing and assembly lines, the module interfaces with barcode scanners and label printers to enable traceability workflows — reading part identification codes at each station and writing results back to the PLC data table for quality control logic. The onboard BASIC interpreter allows engineers to implement custom parsing routines that handle variable-length ASCII strings without burdening the main CPU program.

In power generation and electrical substation environments, the IC600BF949L supports communication with protective relays and metering devices that output ASCII-formatted status and measurement data. The module’s ability to execute BASIC programs independently of the main scan cycle makes it well-suited for time-sensitive data acquisition tasks where polling frequency must be precisely controlled.

Within petrochemical and refinery process control systems, the module integrates with analytical instruments, flow computers, and custody transfer meters that communicate via RS-232C or RS-422 serial interfaces. Its compatibility with the Series Six rack architecture means it can be installed alongside analog input modules such as the IC600BF902K to create a unified data acquisition front-end for process variables and instrument readings.

In water treatment and municipal utility applications, the IC600BF949L supports communication with chemical dosing controllers, flow meters, and SCADA remote terminal units. The module’s robust operating temperature range and industrial-grade construction make it suitable for installation in outdoor control panels and pump station enclosures where environmental conditions are variable.

For mining, metallurgy, and heavy industry applications, the module’s serial communication capability supports integration with weigh-belt feeders, conveyor speed controllers, and material tracking systems. The ability to run BASIC programs onboard reduces the complexity of the main PLC program and simplifies commissioning in environments where engineering resources are limited.

Product Compatibility FAQ

Q1: Is the IC600BF949L compatible with all Series Six CPU modules, and are there any firmware version dependencies?
The IC600BF949L is designed for use within the GE Series Six I/O rack system and is compatible with Series Six CPU modules including the IC600CP620L and related variants. Compatibility is determined by the Series Six backplane bus standard rather than specific CPU firmware versions. However, it is recommended to verify the CPU’s data table size and I/O configuration capacity before installation, as the number of simultaneously active I/O modules — including ASCII modules — is constrained by the CPU model’s I/O budget. ZYPLC provides pre-shipment functional testing and can advise on system configuration compatibility as part of the warranty terms confirmed during quotation service.

Q2: How does the IC600BF949L maintain communication stability in high-noise industrial environments, and what installation practices are recommended?
The IC600BF949L uses RS-232C and RS-422 serial interfaces, with RS-422 offering significantly better noise immunity over longer cable runs due to its differential signaling architecture. In high-noise environments such as motor control centers or welding areas, RS-422 wiring with shielded twisted-pair cable and proper ground termination at one end of the cable run is strongly recommended. The module should be installed in a rack slot away from high-current output modules where possible. The IC600PM502K power supply should be verified to meet the total rack load, as insufficient power headroom can introduce intermittent communication faults that are difficult to diagnose. All ZYPLC-supplied IC600BF949L units are covered by a warranty terms confirmed during quotation and undergo functional communication testing prior to shipment.

Q3: What long-term maintenance and spare parts strategy is recommended for systems using the IC600BF949L?
Given that the GE Series Six platform is a mature architecture, maintaining a strategic spare inventory of the IC600BF949L and associated modules — including the IC600CP620L CPU, IC600PM502K power supply, and key I/O modules — is essential for minimizing unplanned downtime. ZYPLC supports RFQ sourcing for tested and warranted IC600 Series components to support long-term maintenance programs. Each unit supplied by ZYPLC carries a warranty terms confirmed during quotation and is functionally tested to confirm serial communication, BASIC interpreter operation, and backplane interface integrity. For critical production environments, ZYPLC recommends maintaining at least one hot-spare IC600BF949L per installed system, with periodic rotation to verify continued operability.
