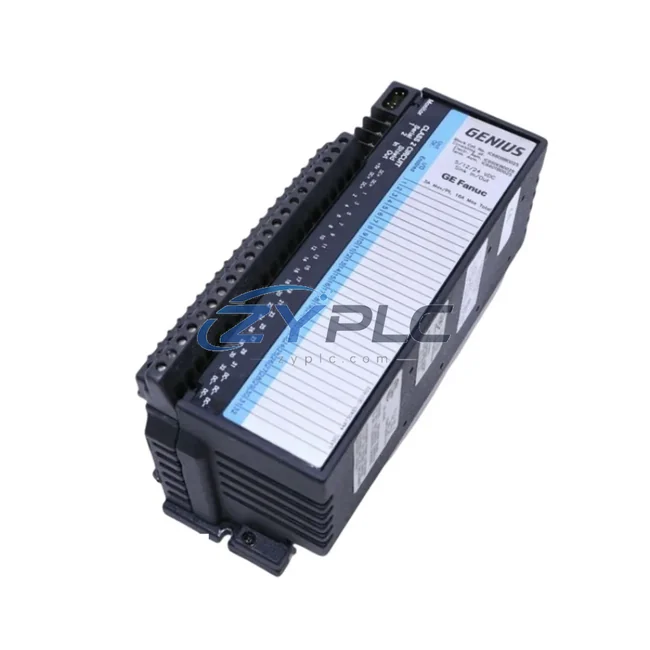

GE IC660BBD025 Block I/O Module for Genius Series Systems

GE IC660BBD025 Industrial Network Interface for Genius Series Systems: Enabling Seamless Industrial Data Links in Smart Factory Environments

The GE IC660BBD025 is a high-performance Genius Block I/O Module engineered for demanding industrial automation environments. Designed to operate within GE’s Genius distributed I/O architecture, this module delivers reliable 5/12/24VDC sink-type digital I/O across 32 circuits, making it a cornerstone component for plant-floor connectivity, real-time data acquisition, and intelligent factory integration. Whether deployed in discrete manufacturing, process control, or hybrid automation systems, the IC660BBD025 provides the robust network interface needed to bridge field-level devices with upper-level control and monitoring platforms.

At its core, the IC660BBD025 communicates over the Genius Bus — GE’s proprietary high-speed serial fieldbus protocol — enabling deterministic, low-latency data exchange between field devices and the host PLC or controller. This protocol-level integration ensures that signal states from sensors, actuators, and discrete I/O points are transmitted with minimal delay, supporting the real-time control loops that modern smart factories demand. The module’s compact block form factor simplifies installation directly at the machine or process level, reducing wiring complexity and improving system maintainability.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory, the GE IC660BBD025 sits at the intersection of field-level signal acquisition and upper-level network communication. The data flow begins at the sensor and actuator layer: proximity switches, photoelectric sensors, solenoid valves, and discrete output devices connect directly to the module’s 32 I/O circuits. From there, the IC660BBD025 encapsulates field signal states into Genius Bus data frames and transmits them upstream to the host controller — typically a GE Series 90-70 PLC or a GE PACSystems RX3i controller — where logic execution and process coordination occur.

Within the Genius Bus network, the IC660BBD025 operates alongside other distributed I/O nodes such as the GE IC660BBA020 analog input block and the GE IC660BBD101 discrete output block, forming a cohesive distributed I/O network that spans the production floor. The Genius Bus Controller — often a GE IC660CBB900 Bus Controller Module — manages token-passing communication across all nodes, ensuring that each block module, including the IC660BBD025, receives its allocated scan time for deterministic data updates.

As data flows from the IC660BBD025 through the Genius Bus to the host PLC, it becomes available to the SCADA layer via OPC-DA or OPC-UA gateways. Integration with platforms such as GE iFIX SCADA or Wonderware InTouch HMI allows operators to visualize real-time I/O states, configure alarm thresholds, and monitor production KPIs from centralized control rooms or remote workstations. The module’s deterministic communication ensures that alarm events — such as a conveyor jam signal or a safety interlock trip — are propagated to the SCADA system within milliseconds, enabling rapid operator response.

For drive and motion control integration, the IC660BBD025 can coordinate with GE AF-600 FP variable frequency drives through discrete I/O interlocks, providing run/stop commands, fault feedback, and speed reference enable signals. In multi-axis systems, this I/O coordination ensures synchronized motion sequences without reliance on high-speed fieldbus protocols at the drive level, simplifying system architecture while maintaining reliable control. Additionally, edge gateway devices such as the Moxa MGate MB3170 or similar industrial protocol converters can be deployed alongside the Genius Bus network to bridge legacy Genius data into modern Ethernet/IP or MQTT-based IIoT architectures, extending the IC660BBD025’s connectivity into cloud-based analytics and remote monitoring platforms.

Power distribution within the control cabinet is typically managed by GE SELA industrial power supplies or equivalent 24VDC DIN-rail power units, ensuring stable voltage delivery to the IC660BBD025 and its connected field devices. Proper power architecture is critical for maintaining signal integrity across all 32 I/O circuits, particularly in high-noise industrial environments where electromagnetic interference can affect data transmission quality.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is data isolation — the condition where field devices, PLCs, and upper-level systems operate in disconnected silos, preventing plant-wide visibility and real-time decision-making. The GE IC660BBD025 directly addresses this challenge by serving as a protocol-native interface between the physical process layer and the Genius Bus communication network.

In facilities where multiple generations of control equipment coexist, protocol incompatibility is a common barrier to system integration. The IC660BBD025’s native Genius Bus communication eliminates the need for external protocol converters between GE Series 90 PLCs and their distributed I/O networks, reducing latency, minimizing single points of failure, and simplifying network topology. For sites transitioning toward IIoT architectures, the module’s stable fieldbus communication provides a reliable data source that can be tapped by edge computing devices for upstream analytics without disrupting existing control logic.

Remote monitoring and diagnostics are significantly enhanced when the IC660BBD025 is integrated into a SCADA-connected Genius Bus network. Maintenance engineers can remotely query I/O status, identify fault conditions, and perform diagnostic checks without physical access to the control cabinet — reducing mean time to repair (MTTR) and minimizing unplanned downtime. This capability is particularly valuable in geographically distributed facilities or hazardous environments where on-site access is restricted.

Production line transparency is another key benefit. By connecting discrete field signals — machine cycle counts, part-present sensors, reject outputs — through the IC660BBD025 to the SCADA layer, manufacturers gain granular visibility into production throughput, equipment utilization, and quality metrics. This data foundation supports OEE (Overall Equipment Effectiveness) calculations and continuous improvement initiatives without requiring additional instrumentation.

System scalability is inherent in the Genius Bus architecture. Additional IC660BBD025 modules or complementary Genius I/O blocks can be added to the bus network as production lines expand, without requiring changes to the host PLC program structure. This modular expandability protects capital investment and reduces the engineering effort associated with system growth.

Every GE IC660BBD025 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify I/O circuit integrity, Genius Bus communication handshake, and power supply compatibility. Units are shipped with a warranty terms confirmed during quotation covering manufacturing defects and communication failures, with global logistics via DHL and FedEx Express ensuring rapid delivery to industrial sites worldwide.
