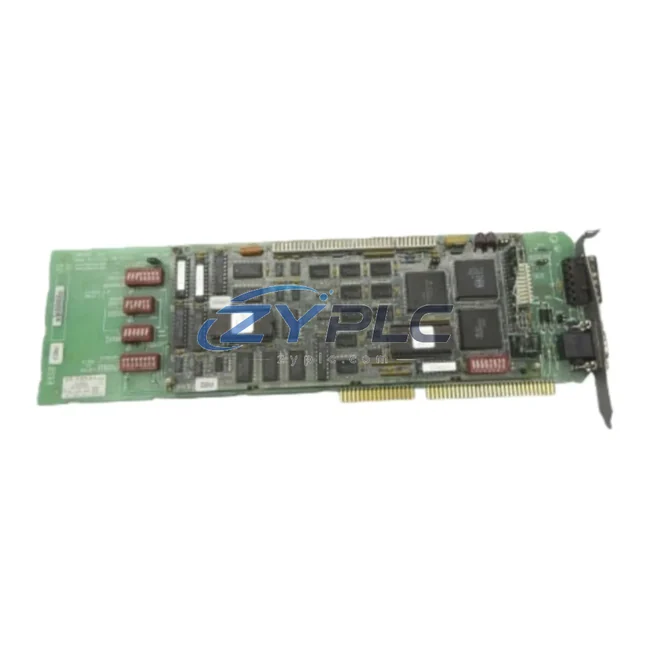

GE IC660ELB906R I/O Bus Controller for Series Six Systems

GE IC660ELB906R: Industrial Data Link for Smart Factory Connectivity

The GE IC660ELB906R is a high-performance Genius Bus Controller designed for GE Series Six PLC systems, engineered to serve as the critical communication backbone between field-level devices and upper-level control and monitoring platforms. In modern industrial environments where data continuity, protocol interoperability, and network stability are non-negotiable, the IC660ELB906R delivers a robust and proven solution for connecting distributed I/O, sensors, drives, and HMI systems across the plant floor.

As a core component of the GE Genius I/O architecture, this controller manages the Genius Bus — a deterministic, token-passing serial network that enables real-time data exchange between the Series Six CPU and remote I/O blocks. With support for the Genius communication protocol and compatibility with Modbus RTU environments through gateway integration, the IC660ELB906R bridges legacy field devices with contemporary SCADA and MES platforms, ensuring that no data remains isolated in a silo.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the IC660ELB906R sits at the heart of the control network, managing the data pipeline from field instruments all the way to the supervisory layer. Signal acquisition begins at the sensor and actuator level — temperature transmitters, pressure transducers, proximity switches, and flow meters — all feeding raw process data into GE IC660ELB912 and IC660ELB926 remote I/O blocks distributed across the production line. These blocks communicate over the Genius Bus, with the IC660ELB906R acting as the bus controller that arbitrates token passing and ensures deterministic, collision-free data delivery to the GE Series Six CPU module.

At the drive and motion layer, variable frequency drives (VFDs) and servo controllers receive speed and torque commands from the PLC via the Genius Bus, with feedback signals — current draw, fault status, running frequency — returned in real time. The IC660ELB906R ensures that this bidirectional data flow remains synchronized with the PLC scan cycle, eliminating latency that could compromise process control accuracy.

For facilities running mixed-protocol environments, the IC660ELB906R integrates seamlessly with Modbus-to-Genius protocol converters and industrial Ethernet gateways, enabling legacy Modbus RTU devices — including third-party PLCs, energy meters, and smart sensors — to participate in the Genius Bus network. This gateway architecture allows SCADA platforms such as iFIX, Wonderware, or Ignition to poll real-time data from all connected nodes through a unified OPC-DA or OPC-UA interface.

At the HMI layer, operator panels connected to the Series Six system via GE Cimplicity or third-party HMI software receive live process values, alarm states, and equipment status from the IC660ELB906R’s managed I/O network. Alarm thresholds configured in the PLC logic trigger immediate visual and audible alerts at the HMI, while alarm history is logged to the SCADA historian for trend analysis and regulatory compliance reporting.

Remote diagnostic capability is a key advantage of the IC660ELB906R architecture. Through the SCADA gateway, maintenance engineers can remotely interrogate bus health, monitor node communication status, and identify failed I/O blocks without physical access to the control panel. This capability dramatically reduces mean time to repair (MTTR) and supports predictive maintenance strategies by correlating communication error rates with equipment degradation patterns.

For system expansion, additional GE IC660ELB902 bus interface units and IC660CBL500 Genius Bus cables can be added to extend the network to new production zones, integrating additional remote I/O drops, smart instruments, and edge computing nodes without disrupting existing bus traffic. The modular architecture of the Genius I/O system, anchored by the IC660ELB906R, ensures that the control network scales with the facility’s automation roadmap.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of data across incompatible protocols and isolated control islands. Older facilities often operate with a patchwork of legacy PLCs, proprietary fieldbus networks, and standalone controllers that cannot natively share data — creating blind spots in production visibility and making system-wide optimization impossible.

The GE IC660ELB906R directly addresses this challenge by providing a standardized, deterministic communication layer across the Series Six control architecture. By consolidating distributed I/O data onto the Genius Bus, the controller eliminates the need for point-to-point wiring between individual field devices and the PLC, reducing installation complexity and the risk of signal interference. All process data — analog inputs, digital outputs, diagnostic feedback — flows through a single, managed network path, making it immediately available to the SCADA historian, MES database, and cloud analytics platforms.

For facilities transitioning from isolated control islands to a unified smart factory architecture, the IC660ELB906R serves as the foundational connectivity layer. Its compatibility with protocol conversion gateways means that Modbus RTU devices, Profibus nodes, and Ethernet-connected instruments can all be integrated into the Genius Bus network without replacing existing hardware. This phased integration approach protects capital investment while progressively eliminating data silos.

Production line transparency is further enhanced by the IC660ELB906R’s support for real-time diagnostics. Bus communication errors, node dropouts, and I/O module faults are immediately reported to the PLC and surfaced through the SCADA alarm management system, giving operations teams the visibility they need to respond proactively rather than reactively. Combined with remote access capabilities, this transforms the control network from a passive data carrier into an active asset management tool.

Industrial Connectivity FAQ

Q1: What communication protocols does the GE IC660ELB906R support, and is it compatible with Modbus RTU devices?
The IC660ELB906R natively supports the GE Genius Bus protocol, a deterministic token-passing serial network optimized for real-time I/O communication in Series Six PLC systems. For Modbus RTU compatibility, the controller integrates with Modbus-to-Genius protocol gateways, enabling legacy Modbus devices to participate in the Genius Bus network without hardware replacement. This makes it suitable for mixed-protocol industrial environments where both legacy and modern devices must coexist.

Q2: How does the IC660ELB906R ensure network stability in high-noise industrial environments?
The Genius Bus protocol employs a token-passing architecture that eliminates network collisions and ensures deterministic data delivery regardless of bus load. The IC660ELB906R’s RS-485 physical layer provides inherent noise immunity suitable for industrial environments with high electromagnetic interference from VFDs, motors, and welding equipment. Each unit undergoes functional communication testing prior to shipment to verify bus arbitration, I/O data integrity, and protocol compliance under simulated load conditions.

Q3: Can the IC660ELB906R be integrated with modern SCADA and HMI platforms?
Yes. Through OPC-DA/OPC-UA gateway solutions, the IC660ELB906R’s Genius Bus network can be connected to contemporary SCADA platforms including Ignition, Wonderware, iFIX, and GE Cimplicity. HMI panels communicate with the Series Six CPU via the PLC’s serial or Ethernet interface, receiving real-time process values and alarm states managed by the IC660ELB906R. This integration path supports full production line transparency without requiring a complete control system upgrade.

Q4: What warranty and pre-shipment testing does the IC660ELB906R come with?
Every GE IC660ELB906R supplied by ZYPLC is covered by a warranty terms confirmed during quotation and undergoes comprehensive functional testing before shipment. Testing includes Genius Bus communication verification, I/O data integrity checks, protocol compliance validation, and physical inspection for connector and board integrity. Availability is confirmed via RFQ for shipment arranged after confirmation, supporting urgent maintenance and production continuity requirements.

—
