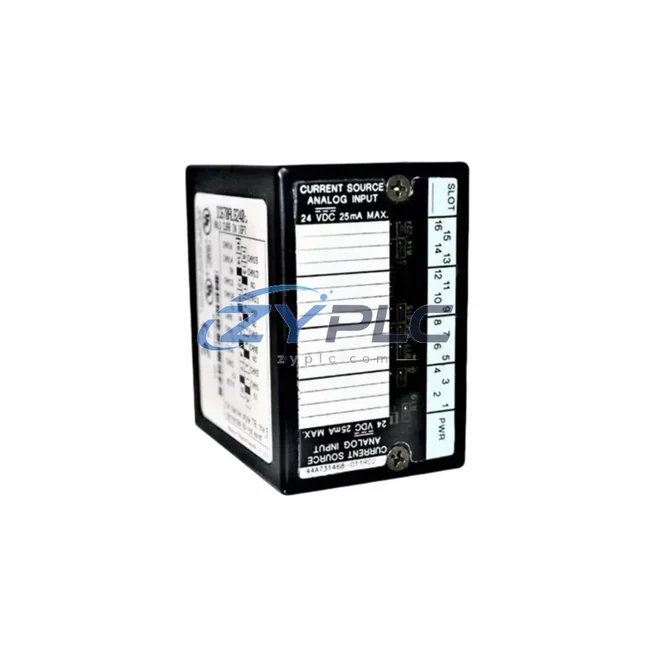

The GE Fanuc IC670ALG240 is a high-precision analog current input module engineered for seamless integration within the Series 90-70 and Genius I/O distributed control architecture. Designed to serve as a critical signal acquisition node in multi-layer industrial automation systems, this module bridges the physical process environment with the digital control layer, enabling accurate, real-time current signal processing across demanding industrial applications. Rather than functioning as a standalone device, the IC670ALG240 is purpose-built to operate within a coordinated system architecture — one where every module, bus interface, power supply, and CPU contributes to a unified, deterministic control strategy.
In modern industrial automation, the reliability of an analog input module is inseparable from the integrity of the system surrounding it. The IC670ALG240 accepts 4–20 mA current signals from field transmitters, converting them into digital values that the host controller can process with high fidelity. Its role within the Genius I/O bus architecture means it communicates directly with the bus interface unit, maintaining synchronous data exchange with the Series 90-70 CPU rack without introducing latency or signal degradation. This system integration capability ensures that the module does not merely collect data — it participates actively in the control loop, contributing to system-wide coherence and operational stability.
Product Specification Table
| Parameter |
Specification |
| System Role |
Analog Current Input — Genius I/O Distributed Node |
| Input Channels |
8 Channels, 4–20 mA Current Input |
| Resolution |
12-bit (0–4095 counts) |
| Input Impedance |
250 Ω (typical) |
| Accuracy |
±0.1% of full scale at 25°C |
| Bus Interface |
Genius I/O Serial Bus (Belden 9463 or equivalent) |
| Communication Rate |
153.6 kbps (Genius Bus) |
| Power Supply Voltage |
24 VDC (supplied via Genius Bus Interface Unit) |
| Operating Temperature |
0°C to 60°C |
| Storage Temperature |
-40°C to 85°C |
| Relative Humidity |
5% to 95% non-condensing |
| Installation |
DIN Rail or Panel Mount via IC670CHS002/IC670CHS004 carrier |
| Isolation |
500 VAC channel-to-bus isolation |
| Compatibility |
Series 90-70 CPUs, IC697CPX935, IC697CPX928, IC697CGR935 |
| Warranty |
warranty terms confirmed during quotation — Tested, Inspected, Guaranteed |
System Compatibility Notes
The IC670ALG240 achieves its full potential when deployed within a properly architected Series 90-70 or Genius I/O control system. At the control layer, the module interfaces with high-performance CPUs such as the IC697CPX935 or IC697CPX928, which execute the ladder logic and function block programs that interpret the analog signals delivered by the IC670ALG240. These CPUs reside in the IC697CHS750 or IC697CHS782 main rack, where the IC697PWR711 or IC697PWR724 power supply modules provide stable, regulated DC power to the entire backplane.
At the I/O layer, the IC670ALG240 operates alongside complementary modules such as the IC670ALG320 analog voltage output module and the IC670MDL740 discrete output module, forming a complete signal acquisition and actuation subsystem. These modules are mounted on the IC670CHS002 or IC670CHS004 field control carriers, which provide the mechanical and electrical interface between the Genius bus and the individual I/O modules.
Network connectivity is managed through the IC670GBI002 Genius Bus Interface Unit, which serves as the communication gateway between the Genius I/O bus and the Series 90-70 CPU rack. This bus interface unit ensures deterministic, high-speed data transfer across the Genius serial bus, maintaining scan cycle integrity even in high-channel-count configurations. For systems requiring redundant communication paths, the architecture supports dual-bus configurations using paired IC670GBI002 units, providing fault-tolerant data transmission without interrupting process control.
At the human-machine interface layer, operator workstations running Proficy HMI/SCADA iFIX or Cimplicity software connect to the Series 90-70 system via Ethernet or serial communication modules such as the IC697CMM742, enabling real-time visualization of the analog signals processed by the IC670ALG240. This end-to-end architecture — from field transmitter through analog input module, Genius bus, CPU, and HMI — represents a fully integrated, deterministic control system capable of supporting the most demanding industrial process environments.
Industrial Application Notes
The IC670ALG240 is deployed across a wide range of industrial sectors where precise analog signal acquisition is essential to process integrity and operational safety. In power generation and electrical utilities, the module monitors current signals from current transformers and transducers, providing the control system with real-time load data for generator protection and grid synchronization applications. Its 500 VAC channel-to-bus isolation ensures that high-voltage transients in the electrical environment do not compromise the integrity of the control system.
In petrochemical and refinery applications, the IC670ALG240 acquires 4–20 mA signals from pressure transmitters, flow meters, and level sensors distributed throughout the process plant. The module’s high accuracy and low drift characteristics ensure that the control system receives reliable process variable data, enabling precise regulatory control of critical process parameters such as reactor pressure, column temperature, and feed flow rate.
In water and wastewater treatment facilities, the module interfaces with dissolved oxygen sensors, pH transmitters, and turbidity analyzers, providing the SCADA system with the analog data required for automated chemical dosing and process optimization. Its wide operating temperature range and robust isolation make it suitable for installation in outdoor control panels and remote pump stations.
In mining and metallurgical operations, the IC670ALG240 monitors motor current signals from variable frequency drives and soft starters, enabling the control system to detect overload conditions and initiate protective shutdowns before equipment damage occurs. Its compatibility with the Series 90-70 redundant CPU architecture — using paired IC697CGR935 controllers — ensures that analog signal acquisition continues uninterrupted even in the event of a primary CPU failure.
In packaging and discrete manufacturing environments, the module acquires tension, force, and pressure signals from process sensors, enabling closed-loop control of web tension, fill weight, and sealing pressure. Its fast scan rate and deterministic bus communication ensure that the control system can respond to process disturbances within the required response time, maintaining product quality and line efficiency.
Product Compatibility FAQ
Q1: Is the IC670ALG240 compatible with both Series 90-70 and Series 90-30 control architectures?
The IC670ALG240 is designed specifically for the Genius I/O distributed bus architecture, which is natively supported by the Series 90-70 platform using the IC670GBI002 bus interface unit. While the Series 90-30 platform also supports Genius I/O via its own bus interface modules, the IC670ALG240 can be integrated into Series 90-30 systems provided the appropriate bus interface and configuration software are used. All hardware supplied by ZYPLC is tested for functional compatibility and covered by a warranty terms confirmed during quotation, ensuring that the module performs to specification regardless of the host platform.
Q2: How does the IC670ALG240 support redundant control architectures, and what companion modules are required?
In redundant Series 90-70 architectures using paired IC697CGR935 or IC697CPX935 CPUs, the IC670ALG240 participates in the redundant control strategy through the Genius dual-bus configuration. Each IC670GBI002 bus interface unit can be connected to both the primary and secondary Genius bus segments, allowing the redundant CPU pair to access analog input data from the IC670ALG240 without a single point of failure. The warranty terms confirmed during quotation covers the IC670ALG240 and all associated Genius I/O components supplied by ZYPLC, providing engineering teams with confidence in the long-term reliability of the redundant architecture.
Q3: What are the installation and commissioning requirements for the IC670ALG240 in a new control panel build?
The IC670ALG240 mounts on the IC670CHS002 or IC670CHS004 field control carrier, which provides the Genius bus connection and 24 VDC power interface. During commissioning, the module must be configured using GE Proficy Machine Edition or the legacy Logicmaster 90 software, where the channel scaling, engineering unit conversion, and alarm limits are defined. ZYPLC recommends verifying the Genius bus termination resistors at both ends of the bus cable and confirming the bus interface unit address settings before energizing the system. All modules supplied by ZYPLC are pre-tested and include a warranty terms confirmed during quotation, reducing commissioning risk and ensuring that replacement modules are available from stock if required during the project execution phase.
