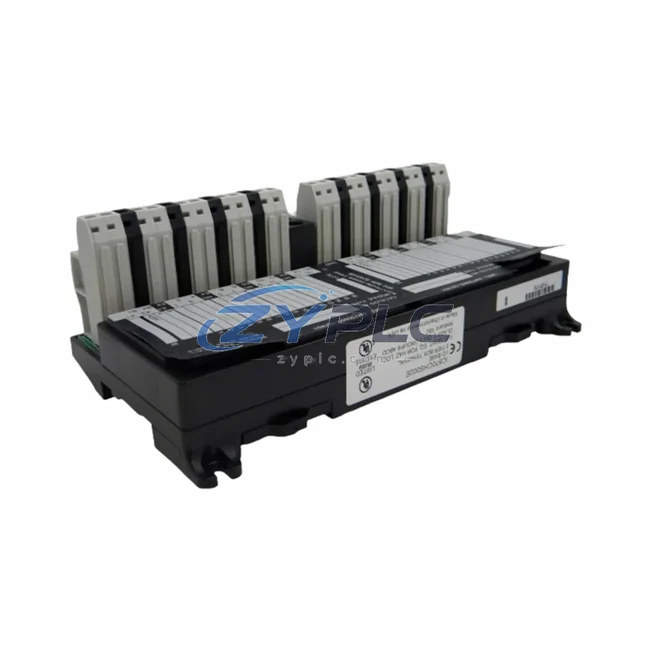

GE IC670CHS002 I/O Terminal Block for Genius Systems

GE IC670CHS002 Industrial Network Interface for Genius Systems: Bridging the Industrial Data Link

The GE IC670CHS002 is a field-proven I/O Terminal Block engineered for the GE Genius Series distributed I/O architecture — a backbone communication component that connects field-level sensors, actuators, and discrete devices to the broader industrial network. In smart factory environments where data continuity between the shop floor and supervisory systems is non-negotiable, the IC670CHS002 serves as the physical and logical gateway that keeps the Genius fieldbus alive, structured, and reliable.

At its core, the IC670CHS002 provides the terminal interface through which Genius Series I/O modules mount and communicate over the Genius Bus — GE’s proprietary high-speed serial fieldbus protocol designed for deterministic, real-time data exchange. Whether deployed in a discrete manufacturing cell, a process control loop, or a hybrid automation environment, this terminal block ensures that every signal from the field reaches the PLC controller with minimal latency and maximum integrity.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding the IC670CHS002 requires tracing the full data path it enables across a live industrial site. The journey begins at the sensor layer — pressure transmitters, proximity switches, temperature RTDs, and discrete limit switches — all wired directly into Genius Series I/O modules such as the IC670MDL640 (discrete input module) and the IC670MDL740 (discrete output module), which mount onto the IC670CHS002 terminal block chassis. These modules scan field signals at high cycle rates and encode them into Genius Bus data frames.

The Genius Bus Interface Module — such as the IC670GBI002 — acts as the bus controller, managing token-passing communication across all nodes on the Genius fieldbus segment. This deterministic protocol ensures that time-critical I/O data from the IC670CHS002 node arrives at the PLC controller within predictable scan windows, a requirement for safety-rated and high-speed process applications.

Upstream, the Genius Bus connects to GE Series 90 PLC platforms — including the IC693CPU374 CPU module housed in a Series 90-30 rack — where ladder logic processes the incoming field data and generates output commands. For sites requiring Ethernet connectivity or integration with modern SCADA platforms, the IC693CMM321 communications module bridges the Series 90 backplane to Ethernet TCP/IP networks, enabling the IC670CHS002 node data to flow into Wonderware, iFIX, or Ignition SCADA systems without protocol re-engineering.

Analog signal chains are equally well served. The IC200ALG260 analog input module, deployed in VersaMax distributed I/O nodes on the same plant network, handles 4–20 mA and 0–10 V process signals from flow meters and pressure transducers, feeding real-time process values into the same SCADA historian that aggregates data from the IC670CHS002 Genius nodes. This cross-platform data convergence is what enables plant-wide OEE dashboards and predictive maintenance analytics.

At the HMI layer, a GE QuickPanel+ HMI terminal mounted at the machine station provides operators with live visualization of I/O states sourced directly from the Genius Bus network. Alarm conditions detected at the IC670CHS002 node — such as a discrete output fault or a field device open-circuit — propagate through the PLC to the HMI alarm banner within one scan cycle, enabling immediate operator response without SCADA round-trip delay.

For sites expanding toward IIoT architectures, an edge gateway device positioned between the Series 90 PLC network and the cloud layer can subscribe to Genius Bus node data via the CMM321 Ethernet port, forwarding structured JSON payloads to Azure IoT Hub or AWS IoT Core for remote diagnostics, energy monitoring, and digital twin synchronization. The IC670CHS002 thus becomes not just a terminal block, but a foundational node in the plant’s end-to-end data chain — from field wire to cloud dashboard.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial facilities is data isolation — islands of automation that cannot communicate with each other or with supervisory systems because they run on incompatible protocols, legacy fieldbus architectures, or proprietary I/O platforms. The GE IC670CHS002, as part of the Genius Series ecosystem, directly addresses this challenge in several ways.

First, the Genius Bus protocol provides a standardized communication layer across all IC670-family modules, eliminating point-to-point wiring between individual field devices and the PLC. This reduces installation complexity, lowers cable costs, and creates a single, auditable data path that can be monitored for faults, latency anomalies, and node dropouts — all from the PLC diagnostic interface or a connected SCADA system.

Second, when Genius Bus nodes need to exchange data with modern Ethernet-based systems — such as an MES platform, a cloud historian, or a remote engineering workstation — protocol conversion is handled at the PLC communications layer via modules like the IC693CMM321, without requiring replacement of the IC670CHS002 field infrastructure. This protects the capital investment in existing Genius Series hardware while enabling forward integration with Industry 4.0 platforms.

Third, remote diagnostics become possible once the Genius Bus data is accessible over Ethernet. Maintenance engineers can query node health, I/O module status, and communication error counters from any networked workstation, reducing the need for on-site troubleshooting visits and shortening mean time to repair (MTTR). For multi-site operations, this remote visibility is a direct operational cost reduction.

Finally, system expansion is straightforward: additional IC670CHS002 terminal blocks and compatible I/O modules can be added to the Genius Bus segment up to the maximum node count, scaling the I/O footprint without redesigning the network architecture. This modularity makes the IC670CHS002 a long-term platform investment rather than a single-application component.

Industrial Connectivity FAQ

Q1: What communication protocol does the GE IC670CHS002 use, and is it compatible with modern Ethernet-based SCADA systems?
The IC670CHS002 operates on the GE Genius Bus serial fieldbus protocol. It is not natively Ethernet-capable, but when paired with a GE Series 90 PLC equipped with an IC693CMM321 Ethernet communications module, Genius Bus node data can be bridged to Modbus TCP or SRTP over Ethernet, making it fully accessible to SCADA platforms such as iFIX, Wonderware, and Ignition.

Q2: How does the Genius Bus ensure network stability and deterministic data delivery?
The Genius Bus uses a token-passing protocol managed by the Bus Interface Module (e.g., IC670GBI002), which guarantees that each node — including the IC670CHS002 — transmits and receives data within a fixed, predictable time window. This determinism is critical for process control applications where I/O scan jitter could cause false alarms or control instability.

Q3: Can the IC670CHS002 be expanded with additional I/O modules, and what is the maximum configuration?
Yes. The IC670CHS002 terminal block is designed to accept Genius Series I/O modules — including discrete input/output modules (IC670MDL640, IC670MDL740) and analog modules — up to the physical slot capacity of the chassis. Multiple IC670CHS002 nodes can be deployed on a single Genius Bus segment, supporting large-scale distributed I/O configurations across an entire production line or facility.

Q4: What quality assurance and warranty coverage is provided with the IC670CHS002?
Every IC670CHS002 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify terminal integrity, module mounting compatibility, and communication readiness. All units are covered by a warranty terms confirmed during quotation from the date of shipment. Availability is confirmed via RFQ for same-week dispatch via DHL or FedEx international express, with full export documentation provided.
