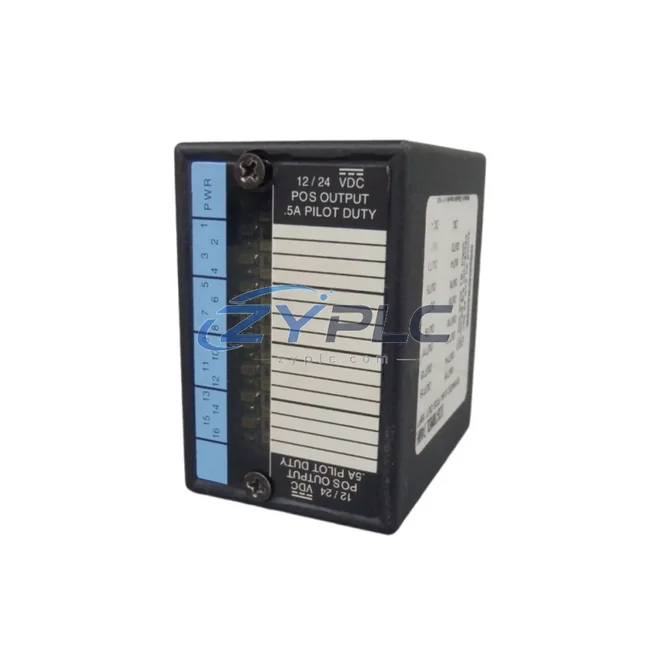

GE IC670MDL740 Discrete Output Module for IC670 Series

GE IC670MDL740 Discrete Output Module: Control System and system integration

The GE IC670MDL740 is a discrete output module engineered for seamless integration within the GE Series 90 Micro PLC platform, specifically the IC670 rack-based control architecture. Rather than functioning as a standalone component, the IC670MDL740 is designed to operate as a coordinated element within a layered automation system — contributing to signal integrity, output reliability, and long-term maintainability across the full control hierarchy. Understanding its role within the broader system architecture is essential for engineers specifying components for manufacturing lines, power distribution panels, water treatment facilities, and process control environments.

Product Specification Table

System Compatibility Notes

The IC670MDL740 achieves its full value when specified as part of a complete IC670 control system architecture. In a typical deployment, the module occupies an I/O slot within the IC670 rack alongside the IC670CPU105 or IC670CPU106 central processing unit, which handles ladder logic execution, scan cycle management, and inter-module communication via the IC670 backplane. The CPU coordinates all I/O transactions, and the IC670MDL740 responds to output coil commands with relay-switched field signals — making it suitable for driving solenoids, motor starters, indicator lamps, and contactor coils.

Power distribution within the rack is managed by the IC670PWR101 or IC670PWR102 power supply module, which provides regulated 5VDC logic power to all installed modules. Proper power budget calculation is essential when populating a full rack with multiple I/O modules, and the IC670MDL740’s relay output design means field-side power is sourced externally — allowing flexible voltage selection per output group without impacting the rack’s internal logic supply.

On the input side, the IC670MDL740 is commonly paired with discrete input modules such as the IC670MDL640 (16-point 24VDC input) or IC670MDL641 (32-point input), forming a balanced I/O architecture that handles both field sensing and field actuation within the same rack. For analog process variables — such as temperature, pressure, or flow — the IC670ALG230 or IC670ALG240 analog input modules can be installed in adjacent slots, with the CPU correlating analog measurements to discrete output commands through programmed control logic.

Communication beyond the local rack is facilitated through the IC670GBI001 or compatible Genius Bus Interface module, which connects the IC670 rack to a Genius I/O network — enabling distributed I/O expansion across large plant floor installations. This network layer allows the IC670MDL740’s output status to be monitored and commanded from a supervisory PLC or SCADA system, supporting centralized control architectures common in power generation, water treatment, and petrochemical facilities.

For human-machine interface integration, the IC670 platform is compatible with GE QuickPanel operator terminals and third-party HMI systems communicating via serial RS-232/RS-485 or Ethernet gateways. Operators can monitor the real-time state of each IC670MDL740 output point, acknowledge alarms, and issue manual override commands — all without interrupting the CPU’s automatic scan cycle. This HMI layer is critical for maintenance personnel performing commissioning, fault diagnosis, and scheduled preventive maintenance.

In redundancy-critical applications, the IC670MDL740 can be deployed in hot-standby architectures where a secondary CPU module monitors primary system health and assumes control in the event of a primary CPU fault. While the IC670 platform is not a full redundant I/O system by default, careful system design — including redundant power feeds, UPS-backed power supplies, and duplicated output circuits — can achieve the fault tolerance required for continuous process industries.

Industrial Application Notes

The IC670MDL740 is deployed across a wide range of industrial sectors where reliable discrete output switching is a fundamental control requirement. In manufacturing and assembly lines, the module drives pneumatic valve solenoids, conveyor motor contactors, and safety interlock relays — all coordinated through the IC670 CPU’s ladder logic program. The relay output design provides galvanic isolation between the PLC logic and field devices, protecting the control system from voltage transients generated by inductive loads.

In electrical power distribution and substation automation, the IC670MDL740 is used to command circuit breaker trip/close coils, transformer tap changers, and alarm annunciator panels. Its wide output voltage range (5–265V AC/DC) makes it compatible with both legacy 110VAC control circuits and modern 24VDC protection relay interfaces — a significant advantage in brownfield substation upgrades where mixed voltage standards are common.

For water and wastewater treatment facilities, the module controls pump motor starters, valve actuators, chemical dosing systems, and UV disinfection equipment. The IC670 platform’s compact rack design allows control panels to be built within standard 19-inch enclosures, minimizing cabinet footprint in pump stations and treatment plant MCC rooms. The warranty terms confirmed during quotation provided by ZYPLC ensures that replacement modules are available without extended lead times — a critical consideration for utilities operating under regulatory compliance requirements.

In oil, gas, and petrochemical process control, the IC670MDL740 supports emergency shutdown (ESD) logic, burner management system (BMS) output commands, and compressor control panel interfaces. Engineers integrating the module into SIL-rated safety systems must verify the module’s failure mode characteristics and supplement with appropriate safety relays or safety PLCs where IEC 61511 compliance is required.

For mining, metallurgy, and heavy industry applications, the module’s robust relay output design handles the high inrush currents associated with large motor starters and electromagnetic brakes. Proper derating for inductive loads and installation of surge suppression devices across relay contacts extends module service life and reduces unplanned downtime in harsh operating environments.

Product Compatibility FAQ

Q1: Is the IC670MDL740 compatible with all IC670 series racks and CPUs?
The IC670MDL740 is designed for use within the GE IC670 modular rack system and is compatible with IC670 series CPUs including the IC670CPU105 and IC670CPU106. It occupies a standard I/O slot in the IC670 rack and communicates via the IC670 backplane bus. Engineers should verify rack slot availability and power budget when configuring multi-module systems. system integration with existing IC670 architectures is straightforward — the module is recognized automatically by the CPU during rack initialization without requiring additional configuration hardware.

Q2: What installation and commissioning steps are required for the IC670MDL740 in a new control panel?
Installation involves inserting the module into an available IC670 rack slot, connecting field wiring to the module’s terminal block, and configuring the output addresses within the GE PLC programming software (Proficy Machine Edition or equivalent). Each relay output point must be assigned a coil address in the CPU’s I/O configuration table. During commissioning, engineers should perform a point-by-point output force test to verify field device response before enabling automatic control logic. The warranty terms confirmed during quotation covers manufacturing defects discovered during initial commissioning — modules exhibiting output contact failures or backplane communication errors within the warranty period are eligible for replacement through ZYPLC’s quality assurance process.

Q3: How does ZYPLC’s warranty terms confirmed during quotation support long-term maintenance planning for IC670MDL740 deployments?
ZYPLC’s warranty terms confirmed during quotation provides assurance that each IC670MDL740 module has been tested and verified prior to shipment. For maintenance engineers managing aging IC670 installations, ZYPLC maintains inventory of IC670 series modules to support both planned replacement programs and emergency breakdown situations. The warranty covers defects in materials and workmanship under normal operating conditions. Customers are encouraged to contact ZYPLC’s technical team at plc.sales@zyplc.com or +86 19859288691 to discuss system compatibility, bulk procurement, and long-term supply agreements that align with plant maintenance schedules.
