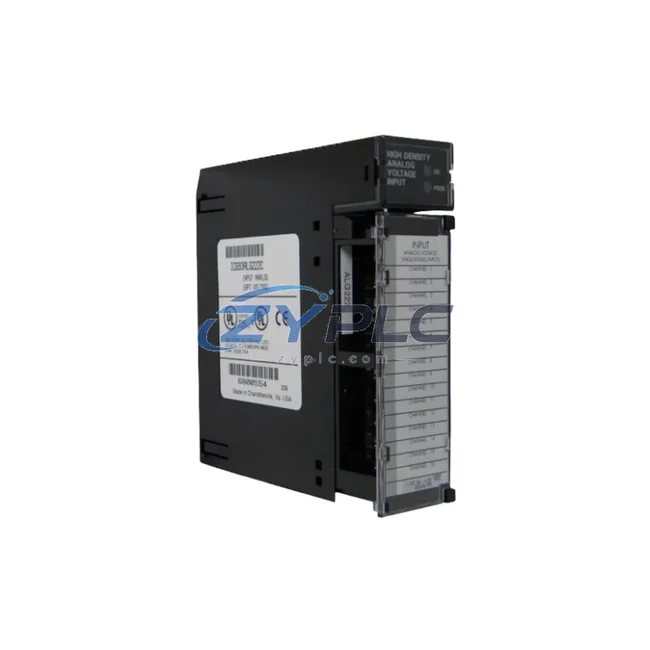

GE IC693ALG222 Analog Input Module 90-30

GE IC693ALG222 Analog Input Module Series 90-30: Precision Signal Acquisition for Optimized Automation

The GE Fanuc IC693ALG222 is a high-performance analog input module designed for the Series 90-30 PLC platform — one of the most widely deployed modular control architectures in discrete and process manufacturing. In energy-intensive production environments where every watt of unnecessary consumption represents a direct cost, the IC693ALG222 plays a foundational role in closing the loop between field instrumentation and control logic. By delivering accurate, low-latency analog signal acquisition, this module enables the CPU — typically a GE Fanuc IC693CPU374 or IC693CPU364 — to make real-time decisions that reduce motor overrun, prevent over-actuation of drives, and eliminate idle-state unplanned downtime across the production line.

Product Specification Table

System Compatibility and Application

In a well-engineered maintenance-focused control system, the IC693ALG222 sits at the data acquisition layer — converting analog field signals from pressure transmitters, flow meters, temperature sensors, and current transducers into digital values that the Series 90-30 CPU can act upon. This is not passive data collection. When integrated with a GE Fanuc IC693MDL655 discrete output module and a GE Fanuc IC693ALG390 analog output module, the IC693ALG222 forms a closed-loop feedback path that allows the controller to continuously adjust actuator positions, valve openings, and drive setpoints in response to real process conditions.

On the drive side, the analog output signals generated from IC693ALG222 feedback data are typically routed to a GE AF-650GP or compatible variable frequency drive (VFD), which modulates motor speed in direct proportion to process demand. This demand-based speed control is the single most impactful operational-efficiency measure available in motor-driven systems — eliminating the fixed-speed overrun that accounts for Actual operating results depend on the installed system, load profile, and commissioning parameters. The IC693ALG222 ensures the feedback signal driving that VFD is clean, accurate, and updated at the scan rate required for tight control.

For communication and supervisory integration, the Series 90-30 rack hosting the IC693ALG222 is commonly paired with a GE Fanuc IC693CMM321 communications module, enabling Modbus RTU or Ethernet/IP data exchange with SCADA systems and maintenance planning platforms. This connectivity allows plant engineers to trend analog process values over time, identify inefficiency patterns, and implement predictive adjustments before unplanned downtime escalates. When combined with a GE Fanuc IC693PWR321 power supply module, the entire rack operates within a tightly regulated power envelope, ensuring that the analog input circuitry receives stable reference voltage and that measurement drift — a common source of control error and energy inefficiency — is minimized.

At the HMI layer, operators monitoring a GE QuickPanel+ IC755CSS10CDA or similar operator interface can visualize real-time analog trends sourced directly from IC693ALG222 channel data, enabling informed manual interventions when automated control reaches its adjustment limits. This human-in-the-loop visibility is particularly valuable during production changeovers, where load profiles shift rapidly and operating load can spike if control parameters are not updated promptly.

Maintenance and Replacement Notes

Consider a mid-scale food processing facility running three parallel conveyor lines, each driven by a 15 kW motor controlled through a variable frequency drive. Without accurate analog feedback, the drives operate on fixed speed schedules — running at full capacity regardless of actual product load. By deploying the GE Fanuc IC693ALG222 to monitor load cell outputs and line tension sensors, the Series 90-30 CPU can dynamically adjust drive speed references via the IC693ALG390 analog output module, reducing average motor speed by 15–25% during low-load periods. At industrial electricity rates, this translates to measurable monthly savings across the facility’s energy budget.

Beyond operational stability, the IC693ALG222 contributes directly to predictive maintenance strategies. By continuously monitoring analog signals from vibration transmitters, bearing temperature sensors, and motor current transducers, the PLC can detect early-stage mechanical degradation — rising bearing temperatures, increasing current draw at constant load — and trigger maintenance alerts before a failure causes unplanned downtime. Unplanned downtime in a production environment carries a dual cost: lost throughput and the unplanned downtime of restarting cold equipment, purging process lines, and running quality verification cycles. The IC693ALG222’s 16-channel capacity means a single module can monitor multiple assets simultaneously, maximizing the diagnostic coverage per rack slot.

Line throughput optimization is another direct benefit. When analog feedback from flow meters and pressure sensors is processed accurately and quickly, the PLC can maintain tighter process setpoints — reducing the overshoot and undershoot cycles that slow production rhythm and increase material waste. Tighter control means fewer rejects, less rework energy, and a more consistent production beat that allows downstream scheduling to operate with higher confidence.

Every unit of the IC693ALG222 supplied by ZYPLC undergoes full functional testing prior to shipment, including channel-by-channel analog accuracy verification and backplane communication validation. Stock is maintained on-hand for shipment arranged after confirmation, supporting both planned maintenance replacements and emergency breakdown scenarios. All units are covered by a warranty terms confirmed during quotation, providing procurement teams with the assurance needed to approve spare parts purchases with confidence.

Product Sourcing FAQ

Q1: How does the IC693ALG222 contribute to operational stability in motor-driven systems?
The IC693ALG222 provides the accurate analog feedback signals that allow the Series 90-30 PLC to implement demand-based motor speed control via variable frequency drives. By ensuring the control loop receives precise, low-noise process data, the module enables the VFD to reduce motor speed during low-demand periods — directly cutting electrical consumption without sacrificing process performance.

Q2: Is the IC693ALG222 compatible with existing Series 90-30 racks and power supplies?
Yes. The IC693ALG222 is fully compatible with all standard Series 90-30 rack configurations, including the IC693CHS391 (5-slot), IC693CHS397 (10-slot), and IC693CHS398 (10-slot with expanded I/O). It operates with the IC693PWR321 and IC693PWR330 power supply modules and is recognized by all Series 90-30 CPUs without firmware modification.

Q3: What is the recommended replacement process when substituting a failed analog input module on a live production line?
For hot-swap replacement, the rack should be powered down at the slot level if the chassis supports individual slot isolation, or the affected rack should be taken offline during a scheduled micro-stoppage. The replacement IC693ALG222 should be configured with the same channel range settings as the original module before reinsertion. ZYPLC recommends maintaining at least one spare IC693ALG222 in local inventory to minimize mean time to repair (MTTR) for critical analog input points.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
All IC693ALG222 units supplied by ZYPLC are tested for full analog channel functionality, input range accuracy, backplane communication integrity, and power draw compliance before shipment. The warranty terms confirmed during quotation covers defects in hardware function arising under normal operating conditions. Units that fail within the warranty period are replaced or refunded, with expedited processing for customers with active production dependencies.
