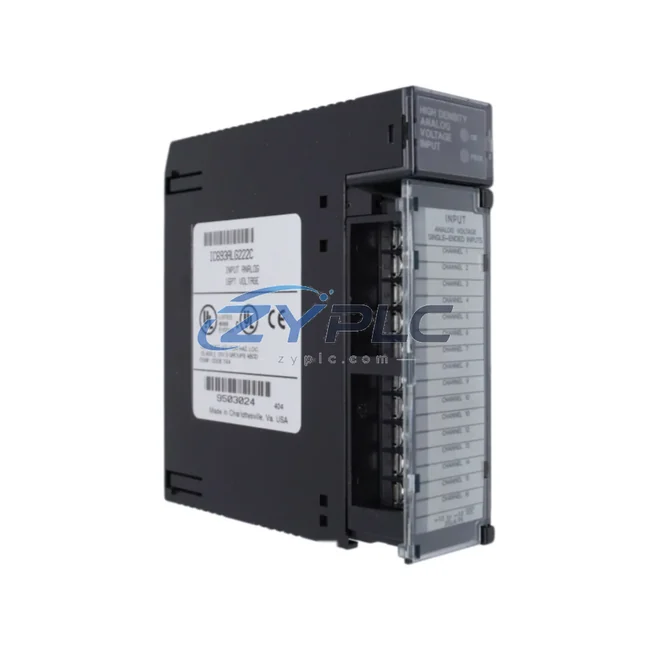

GE IC693ALG222C Analog Input Module 90-30

GE IC693ALG222C Analog Input Module for Series 90-30 Automation

The GE IC693ALG222C is a high-precision analog voltage input module engineered for the GE Fanuc Series 90-30 PLC platform. Designed to meet the demanding requirements of modern industrial automation, this module plays a pivotal role in reducing unplanned downtime risk, improving equipment utilization rates, and enabling smarter, data-driven control decisions across production lines. With 16-channel analog voltage input capability, the IC693ALG222C delivers the signal resolution and acquisition speed that maintenance-focused manufacturing environments require — from discrete process control to continuous drive regulation.

In energy-intensive industrial facilities, the accuracy of analog signal acquisition directly determines how efficiently downstream systems respond. When the IC693ALG222C captures real-time voltage signals from field sensors, transmitters, or transducers, it feeds precise data into the Series 90-30 CPU — enabling the controller to make faster, more accurate decisions about motor speed, valve position, heating output, and drive load. This closed-loop precision is the foundation of measurable operational stability at the machine level.

Product Specification Table

System Compatibility and Application

The IC693ALG222C does not operate in isolation — it is most effective when integrated into a well-structured industrial automation system. In a typical Series 90-30 system, the module sits alongside the IC693CPU374 central processing unit, which handles ladder logic execution and I/O scanning. The CPU interprets the analog signals captured by the IC693ALG222C and issues control commands to output modules such as the IC693ALG390 analog output module, which in turn regulates actuators, control valves, and variable-frequency drives (VFDs).

For motor-driven applications — which account for the majority of industrial operating load — the IC693ALG222C works in tandem with drive systems such as the GE AF-600 FP series VFD or compatible third-party inverters. By continuously feeding real-time load feedback signals into the PLC, the module enables the controller to dynamically adjust motor speed via the VFD, preventing the chronic over-speeding that wastes energy in pump, fan, and conveyor applications. This speed-matching capability alone can help restore stable operation when a compatible replacement is required.

On the digital I/O side, the IC693MDL645 discrete input module and IC693MDL740 discrete output module complement the analog acquisition layer by handling on/off status signals from field devices — limit switches, proximity sensors, and relay contacts — ensuring that the control system has a complete picture of machine state before making energy-impacting decisions. Unnecessary actuator cycling and false starts are eliminated, reducing both unplanned downtime and mechanical wear.

For power quality monitoring and energy metering, the IC693ALG222C can be paired with dedicated power measurement transducers that output 0–10 V signals proportional to real power (kW), reactive power (kVAR), or power factor. These signals feed directly into the module’s input channels, enabling the IC693CPU364 to log operating load data, trigger demand-response actions, or generate alarms when energy thresholds are exceeded — all without requiring a separate maintenance planning system.

Communication and data transparency are handled through the IC693CMM321 Communications Control Module or the IC693CMM311 Ethernet Interface Module, which allow the Series 90-30 system to transmit real-time energy and process data to SCADA platforms, MES systems, or cloud-based analytics dashboards. This connectivity transforms the IC693ALG222C from a simple signal conditioner into a node in a plant-wide energy intelligence network.

For HMI visualization, operators can monitor analog trends — including operating load curves, drive load percentages, and temperature profiles — through GE QuickPanel operator terminals or compatible third-party HMI panels connected via the Series 90-30 backplane or serial communications. Real-time visibility into analog process variables empowers operators to identify inefficiencies and intervene before they escalate into costly downtime or energy overruns.

Maintenance and Replacement Notes

In real-world production environments, the IC693ALG222C delivers measurable impact across multiple dimensions of energy and operational efficiency. Consider a packaging line where conveyor speed must be dynamically matched to upstream filling rates. Without accurate analog feedback, the conveyor motor runs at a fixed speed — often faster than necessary — consuming excess energy and accelerating belt wear. With the IC693ALG222C capturing speed reference signals from a tachometer or encoder transmitter, the Series 90-30 PLC can continuously adjust the VFD output to match actual demand, reducing motor energy draw during low-throughput periods and extending belt service life.

In HVAC and compressed air systems — two of the largest energy consumers in manufacturing facilities — the module enables pressure and temperature feedback loops that prevent compressors and fans from running beyond setpoint. By reading 0–10 V signals from pressure transmitters and feeding them into PID control blocks within the Series 90-30 CPU, the IC693ALG222C helps maintain system pressure within tight bands, eliminating the unplanned downtime associated with pressure overshoot and relief valve cycling.

Predictive maintenance is another area where the IC693ALG222C contributes to maintenance planning. By monitoring analog signals such as motor current (via current transducers with voltage outputs), vibration amplitude, and bearing temperature over time, the PLC can detect gradual degradation trends — rising current draw, increasing vibration — that indicate impending mechanical failure. Early intervention prevents catastrophic failures that result in extended downtime, emergency energy surges during restart, and costly replacement of drive components.

From an inventory and supply perspective, ZYPLC maintains ready stock of the IC693ALG222C with full pre-shipment functional testing. Each unit undergoes output verification, channel-by-channel signal accuracy testing, and backplane communication checks before dispatch. Combined with a warranty terms confirmed during quotation, this ensures that replacement modules arrive ready to install — minimizing production interruption and the energy costs associated with extended downtime.

Product Sourcing FAQ

Q1: How does the IC693ALG222C contribute to measurable operational stability on a production line?
By providing high-accuracy analog signal acquisition, the IC693ALG222C enables the Series 90-30 PLC to implement precise closed-loop control over motors, drives, and process actuators. This eliminates over-drive conditions, reduces idle operating load, and allows VFDs to operate motors at optimal speed for actual load — directly reducing kWh consumption in motor-driven applications.

Q2: Is the IC693ALG222C compatible with other GE Series 90-30 CPU models?
Yes. The IC693ALG222C is designed for the GE Fanuc Series 90-30 backplane and is compatible with a range of CPU modules including the IC693CPU364, IC693CPU374, and IC693CPU323. It integrates seamlessly with other Series 90-30 I/O modules, communication modules, and power supplies within the same rack configuration.

Q3: What is the recommended replacement or upgrade path if the IC693ALG222C is discontinued or unavailable?
For direct replacement, ZYPLC recommends sourcing tested surplus IC693ALG222C units, which maintain full hardware and firmware compatibility with existing Series 90-30 systems. For system upgrades, migration to the GE PACSystems RX3i platform with equivalent analog input modules (such as the IC695ALG608) is a viable long-term path, though it requires CPU and rack changes. Contact our technical team for a compatibility assessment.

Q4: What does the warranty terms confirmed during quotation cover, and what is the pre-shipment testing process?
Every IC693ALG222C shipped by ZYPLC is covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures. Pre-shipment testing includes channel-by-channel analog input verification across the full voltage range, backplane communication integrity checks, and visual inspection for physical damage. Units that do not pass all test criteria are quarantined and not shipped. Warranty claims are processed with priority turnaround to minimize production impact.
