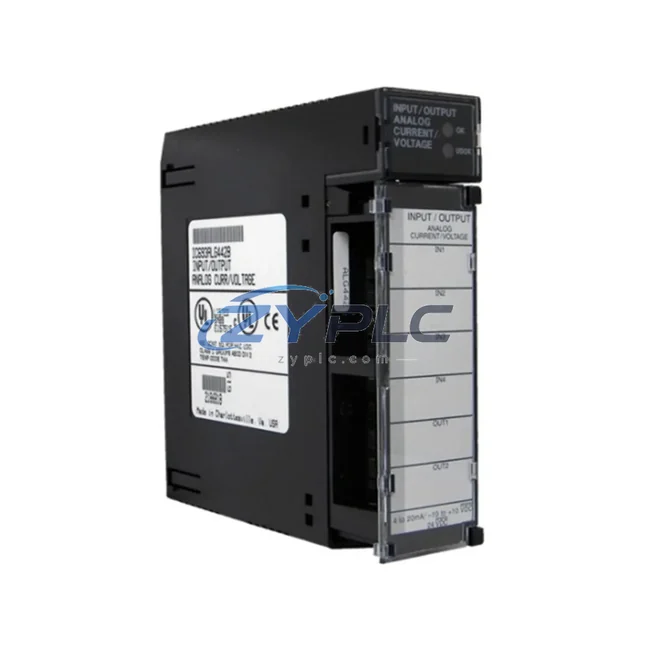

GE IC693ALG442 Analog I/O Module Series 90-30

GE IC693ALG442 Analog I/O Module: Replacement and Sourcing Information for Series 90-30 Automation

The GE IC693ALG442 is a high-resolution analog input/output module purpose-built for the GE Series 90-30 PLC platform. In modern industrial environments where energy cost is a direct operational variable, the IC693ALG442 delivers the signal precision required to eliminate control dead-bands, reduce drive over-actuation, and enable closed-loop maintenance planning across the full production line. With 16 analog input channels and 8 analog output channels operating at 12-bit resolution, this module provides the measurement granularity that separates energy-optimized automation from conventional fixed-setpoint control.

Whether deployed in pump stations, HVAC systems, conveyor drives, chemical dosing lines, or discrete manufacturing cells, the IC693ALG442 functions as the analog nerve center of the control architecture — continuously acquiring real-world process variables and translating them into precise output commands that drive actuators, variable frequency drives, and servo systems at exactly the energy level the process demands. The result is measurable reduction in operating-hour consumption, lower peak demand charges, extended equipment service life, and improved production line takt time consistency.

Product Specification Table

System Compatibility and Application

The IC693ALG442 reaches its full operational-efficiency potential when integrated into a coherent, energy-conscious Series 90-30 control architecture. At the processing core, the IC693CPU374 central processing unit executes the PLC scan cycle and runs the maintenance planning logic programmed in Proficy Machine Edition. The CPU’s fast scan rate ensures that analog feedback from the IC693ALG442 is processed in real time, enabling the control program to adjust output signals before energy is wasted through over-run or under-compensation.

On the drive side, the module’s 4–20mA or 0–10V analog output channels are wired directly to variable frequency drives such as the GE AF-650GP series, providing a continuous speed reference signal that allows the PLC to modulate motor speed in proportion to actual process demand. This closed-loop configuration is the foundation of energy-efficient motor control: instead of running at fixed full speed, motors operate at the precise speed the process requires — reducing operating load by 20–50% in variable-load applications such as pumps, fans, and compressors.

Power quality and energy data acquisition are supported through integration with the IC693PWR321 power supply module and external energy meters connected via analog signal loops. The IC693ALG442 acquires current, voltage, and power factor signals from these meters and feeds them to the CPU for trending and alarming. Paired with the IC693MDL645 discrete input module for equipment status feedback and the IC693MDL740 discrete output module for relay-based load control, the system achieves a complete picture of both analog process variables and digital equipment states — the dual-layer visibility required for effective maintenance planning.

For network connectivity and SCADA integration, the IC693CMM321 communications coprocessor provides serial and Ethernet-based data exchange, enabling real-time operating load data to be transmitted to supervisory systems and historian databases. When operators can view live energy metrics on an HMI such as the GE QuickPanel+, they gain the operational insight needed to identify inefficiencies, validate setpoint changes, and confirm the measurable impact of operational-efficiency initiatives. The IC693ALG442’s 12-bit analog data forms the measurement foundation of this visibility layer.

In multi-rack and distributed control configurations, the IC693BEM331 bus expansion module ensures that analog signals from the IC693ALG442 are transmitted reliably across rack boundaries without signal degradation. This is critical in energy-intensive industries such as water treatment, chemical processing, and automotive body-in-white manufacturing, where analog signal accuracy directly determines the efficiency of process control loops and the reliability of operating load calculations. The IC693CHS391 expansion chassis provides the physical infrastructure for scaling the analog I/O count as production lines grow, without requiring a new PLC platform investment.

Maintenance and Replacement Notes

In a pump station application, fixed-speed motor operation results in significant unplanned downtime through throttling losses and mechanical stress on valves and seals. With the IC693ALG442 providing high-resolution flow and pressure feedback to the Series 90-30 CPU, the PLC implements a PID control loop that continuously adjusts the VFD output to match actual system demand. The pump runs at exactly the speed required — reducing operating load, extending motor and mechanical seal life, and lowering maintenance frequency. Facilities operating multiple pump sets under this control strategy report annual operational stability that justify the control system investment within the first operating year.

In conveyor and material handling systems, the IC693ALG442’s analog outputs modulate servo amplifier reference signals, enabling smooth acceleration and deceleration profiles that reduce mechanical shock and peak current draw. This directly improves takt time consistency — the production line runs at a predictable, optimized pace rather than experiencing speed variations caused by crude on/off control. Reduced peak current draw also lowers demand charges on utility bills, a cost that is often overlooked but can represent 20–30% of total electricity costs in manufacturing facilities.

The module also serves as the data acquisition front-end for predictive maintenance programs. By continuously monitoring analog signals such as motor current feedback, vibration sensor outputs, and bearing temperature readings, the IC693ALG442 feeds the PLC a continuous stream of equipment health data. Gradual changes in these signals — a slow rise in motor current, a creeping increase in bearing temperature — indicate developing mechanical issues such as bearing wear, coupling misalignment, or impeller fouling. Identifying these trends early, before they cause unplanned downtime, prevents the unplanned downtime and production losses associated with emergency shutdowns, rushed repairs, and the inefficient operation that precedes catastrophic failure.

Every IC693ALG442 supplied by ZYPLC undergoes pre-shipment functional testing to verify analog channel accuracy, signal linearity, output stability, and backplane communication integrity. Units are maintained RFQ Available to support both planned procurement schedules and urgent replacement requirements. The warranty terms confirmed during quotation covers hardware defects and functional failures under normal operating conditions, and our technical team provides configuration guidance, compatibility verification, and integration support for Series 90-30 systems of all scales and vintages.

Product Sourcing FAQ

Q1: How does the IC693ALG442 reduce operating load in motor-driven applications?
The IC693ALG442 provides high-resolution analog feedback and output signals that enable precise closed-loop control of variable frequency drives. By allowing the Series 90-30 CPU to match motor speed to actual process demand in real time, it eliminates the unplanned downtime associated with fixed-speed operation and mechanical throttling. In variable-load applications such as pumps, fans, and compressors, this approach typically reduces motor load by 20–50% compared to uncontrolled or on/off operation.

Q2: Is the IC693ALG442 compatible with my existing Series 90-30 system and software?
Yes. The IC693ALG442 is designed specifically for the GE Series 90-30 PLC platform and is compatible with all standard Series 90-30 base units and expansion racks. Configuration is performed via Proficy Machine Edition software using standard I/O configuration tools. The module supports 4–20mA and 0–10V signal ranges, configurable per channel. If you are integrating it into an existing system, our technical team can assist with slot assignment, I/O table configuration, and signal range verification.

Q3: Can the IC693ALG442 directly replace a failed module in a running production system?
Yes. The IC693ALG442 is a direct replacement for existing modules of the same part number. The PLC configuration, including I/O addressing and channel parameters, is stored in the CPU memory and will be applied to the replacement module automatically upon system restart. We recommend verifying analog channel calibration after replacement to confirm signal accuracy is maintained within specification. Our team can provide remote support during the replacement process to minimize production downtime.

Q4: What does the warranty terms confirmed during quotation cover, and what is the pre-shipment testing process?
Every IC693ALG442 supplied by ZYPLC is functionally tested prior to shipment to verify analog input accuracy across all 16 channels, output signal integrity across all 8 channels, signal linearity, and backplane communication. The warranty terms confirmed during quotation covers hardware defects and functional failures under normal operating conditions from the date of delivery. In the event of a warranty claim, our team arranges rapid replacement to minimize production impact. For warranty support or pre-purchase technical consultation, contact us at plc.sales@zyplc.com or +86 19859288691.
