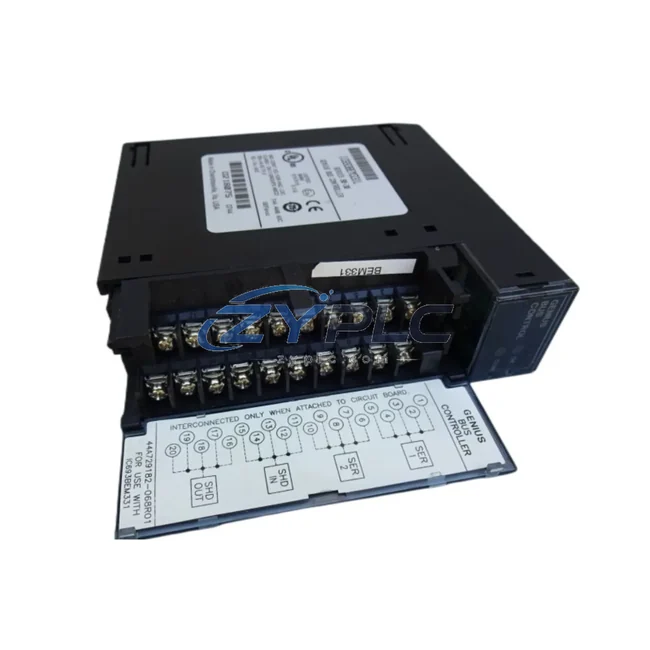

GE IC693BEM331 Genius Bus Controller for Series 90-30

GE IC693BEM331 Genius Bus Controller for Series 90-30: Control System and Upstream–Downstream Coordination

The GE IC693BEM331 Genius Bus Controller is a purpose-engineered communication module designed to serve as the backbone of distributed I/O integration within GE Fanuc Series 90-30 PLC control architectures. Rather than functioning as a standalone component, the IC693BEM331 occupies a critical position in the control hierarchy — bridging the CPU layer with field-level Genius Bus devices, enabling deterministic data exchange, and supporting the kind of modular, scalable system design that modern industrial automation demands.

In a fully realized Series 90-30 control system, the IC693BEM331 operates in close coordination with the CPU module — typically a GE IC693CPU374 or IC693CPU364 — which handles ladder logic execution and program management. The bus controller offloads communication overhead from the CPU, managing up to 32 Genius Bus devices per bus and ensuring that field-level signals are reliably transmitted to and from the control layer without burdening the main processor cycle. This architectural separation of concerns is fundamental to achieving high-throughput, low-latency control in demanding process environments.

The IC693BEM331 installs directly into the Series 90-30 baseplate — such as the IC693CHS391 or IC693CHS397 — and communicates with the CPU via the internal backplane bus. This tight integration means that system engineers can expand distributed I/O capacity without redesigning the control cabinet or reconfiguring the CPU program structure. The module supports hot-insertion in compatible rack configurations, reducing planned downtime during maintenance cycles and enabling live system expansion in production environments where continuous operation is non-negotiable.

From a network topology perspective, the IC693BEM331 manages a dedicated Genius Bus segment — a shielded, twisted-pair serial network operating at 153.6 Kbps — connecting to Genius Block I/O devices such as the IC660BBD024 discrete input block or IC660BBD025 discrete output block. These field devices handle the physical signal conditioning and I/O scanning, while the IC693BEM331 aggregates their data and presents it to the CPU as a coherent, addressable I/O map. This layered architecture simplifies wiring, reduces panel footprint, and improves signal integrity across long cable runs in large-scale installations.

Power integrity is maintained through the Series 90-30 power supply module — typically the IC693PWR321 or IC693PWR330 — which provides regulated 5 VDC and 24 VDC rails to the backplane. The IC693BEM331 draws its operating power from the backplane, eliminating the need for external power connections and simplifying cabinet layout. In redundant power configurations, dual power supply modules can be deployed to ensure uninterrupted operation even in the event of a single power supply failure.

For human-machine interface integration, the IC693BEM331-equipped system pairs naturally with GE QuickPanel or Cimplicity SCADA platforms, which communicate with the Series 90-30 CPU via Ethernet or serial links. The HMI layer reads process variables and alarm states that originate at the Genius Bus field devices, passes through the IC693BEM331, and are processed by the CPU before being presented to operators in real time. This end-to-end data path — from field sensor to operator display — is what defines a well-integrated, contextually coherent control system.

In redundant control architectures, the IC693BEM331 supports dual-bus configurations where two bus controllers monitor the same Genius Bus segment. If the primary controller fails, the secondary assumes control without interrupting field device communication — a critical capability in power generation, water treatment, and petrochemical applications where process continuity is a safety requirement. This redundancy model aligns with IEC 61511 functional safety guidelines and supports SIL-rated system designs.

Long-term maintainability is a core design principle of the Series 90-30 platform, and the IC693BEM331 reflects this philosophy. Its modular form factor allows field replacement without special tools, and its diagnostic LED indicators provide immediate visual feedback on bus health, communication status, and fault conditions. Maintenance engineers can isolate faults to the bus segment level without requiring laptop-based diagnostics, reducing mean time to repair (MTTR) in facilities where engineering resources are limited.

Every IC693BEM331 unit supplied by ZYPLC is fully tested under operational conditions prior to shipment, verified against GE Fanuc factory specifications, and covered by a warranty terms confirmed during quotation. Our inventory management system ensures consistent stock availability, supporting both planned maintenance schedules and emergency replacement scenarios. With global logistics partnerships, we deliver to manufacturing plants, utilities, and system integrators across Asia, Europe, the Middle East, and the Americas.

Product Specification Table

System Compatibility Notes

The IC693BEM331 achieves its full potential when deployed as part of a coordinated Series 90-30 control system. At the CPU layer, the IC693CPU374 or IC693CPU364 executes the control program and manages the I/O map populated by the bus controller. The IC693CHS397 10-slot baseplate provides the physical mounting and backplane connectivity for both the CPU and the IC693BEM331, while the IC693PWR330 power supply ensures stable voltage delivery across all installed modules.

At the field level, the IC693BEM331 communicates with IC660BBD024 24-point discrete input blocks and IC660BBD025 24-point discrete output blocks mounted in remote enclosures — eliminating the need for home-run wiring back to the main control panel. For analog process variables, IC660BBA020 analog input blocks integrate directly onto the same Genius Bus segment, providing 4–20 mA signal conditioning without additional signal converters.

In applications requiring Ethernet connectivity for SCADA integration or remote monitoring, the IC693CMM321 Ethernet Interface Module installs alongside the IC693BEM331 in the same baseplate, enabling simultaneous Genius Bus field communication and upper-level network connectivity. For serial communications with legacy devices or third-party controllers, the IC693CMM311 Serial Communications Module provides RS-232/RS-485 interfaces within the same rack architecture. This multi-protocol capability within a single Series 90-30 rack is a defining advantage of the IC693 platform for complex, multi-vendor industrial environments.

Industrial Application Notes

The IC693BEM331 is deployed across a wide range of industrial sectors where distributed I/O management and system-level integration are critical operational requirements.

In power generation and utilities, the IC693BEM331 manages Genius Bus segments connecting to motor control centers, switchgear status inputs, and protection relay outputs — providing the control room with real-time visibility into electrical distribution system states. Its dual-bus redundancy capability is particularly valued in grid-connected facilities where communication loss could trigger protective relay misoperation.

In petrochemical and refinery applications, the module integrates with field-mounted Genius I/O blocks in hazardous area enclosures, collecting process measurements from pressure transmitters, flow meters, and temperature sensors distributed across large process units. The Genius Bus topology reduces cable infrastructure costs significantly compared to conventional point-to-point wiring, while maintaining the deterministic scan times required for process safety interlock systems.

In water and wastewater treatment, the IC693BEM331 coordinates pump station control, valve actuation, and level monitoring across geographically distributed lift stations — all managed from a central Series 90-30 CPU. The module’s robust operating temperature range and vibration tolerance make it suitable for outdoor pump station enclosures in variable climate conditions.

In automotive and discrete manufacturing, the IC693BEM331 supports high-speed assembly line control where multiple Genius Bus segments handle tooling I/O, conveyor interlocks, and quality inspection signals simultaneously. Its ability to manage 32 devices per bus segment allows a single IC693BEM331 to replace dozens of individual I/O cards, simplifying panel design and reducing component count in high-density control cabinets.

Product Compatibility FAQ

Q1: Is the IC693BEM331 compatible with both IC693CHS391 and IC693CHS397 baseplates, and can it be installed in any slot?
Yes. The IC693BEM331 is fully compatible with all standard Series 90-30 baseplates, including the 5-slot IC693CHS391 and the 10-slot IC693CHS397. It can be installed in any I/O slot within the baseplate — it does not require a dedicated slot position. In multi-rack configurations, the bus controller can be installed in an expansion rack connected via the IC693CBL300 or IC693CBL302 expansion cable, allowing the Genius Bus segment to be managed from a rack physically separated from the CPU rack.

Q2: How does the IC693BEM331 support redundant bus architectures, and what happens during a bus controller failure?
In a dual-bus redundant configuration, two IC693BEM331 modules are installed — one designated as the primary bus controller and one as the backup. Both modules monitor the same Genius Bus segment simultaneously. If the primary controller experiences a fault or loses communication, the backup assumes control within one bus scan cycle, ensuring uninterrupted field device communication. This failover is transparent to the CPU program and does not require operator intervention. The transition is logged in the CPU fault table for post-event analysis, supporting root cause investigation and maintenance planning.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term maintenance for Series 90-30 systems?
Every IC693BEM331 supplied by ZYPLC is covered by a comprehensive warranty terms confirmed during quotation that includes replacement or repair for any manufacturing defect or operational failure under normal operating conditions. Prior to shipment, each unit undergoes functional testing under simulated backplane and Genius Bus load conditions to verify communication integrity, LED diagnostic accuracy, and backplane power draw within GE Fanuc specifications. For long-term maintenance support, ZYPLC maintains a dedicated inventory of Series 90-30 modules — including CPU, power supply, I/O, and communication modules — enabling rapid fulfillment for both planned maintenance and emergency replacement scenarios. Our technical team is available to assist with system compatibility verification, installation guidance, and configuration support.
