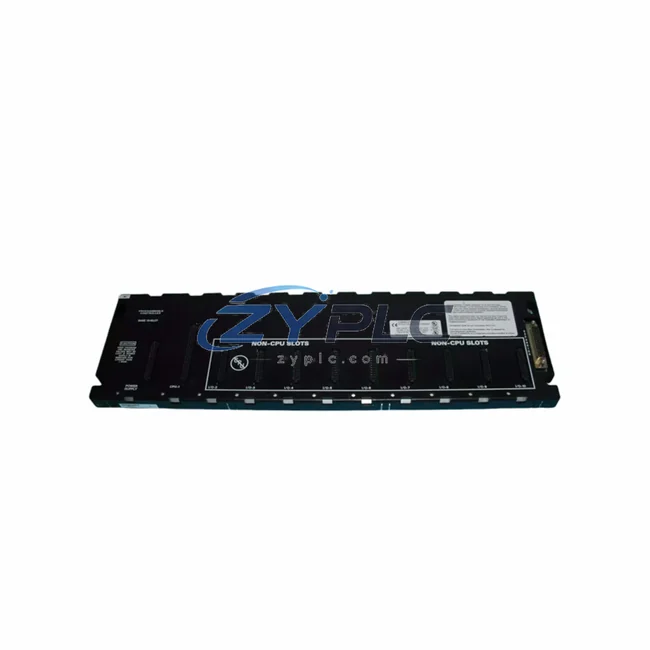

GE IC693CHS391M PLC Expansion Chassis for Series 90-30 Systems

GE IC693CHS391M Industrial Network Interface for Series 90-30 Systems: Backbone of Smart Factory Data Links

The GE IC693CHS391M is a high-density expansion chassis engineered for the GE Series 90-30 PLC platform, serving as the structural and electrical backbone that enables seamless communication between CPU modules, distributed I/O, network interface cards, and upper-level SCADA or HMI systems. In modern smart factory environments where data integrity, protocol compatibility, and real-time responsiveness are non-negotiable, the IC693CHS391M delivers the physical and logical infrastructure required to sustain continuous industrial data flow across every layer of the automation hierarchy.

Designed to support up to 9 module slots, this expansion chassis integrates directly with the Series 90-30 backplane architecture, allowing engineers to configure mixed I/O, communication, and specialty modules within a single rack. Whether deployed in a standalone control cabinet or as part of a distributed rack system connected via the IC693BEM331 Bus Expansion Module, the IC693CHS391M ensures that every module — from analog input cards like the IC693ALG220 to high-speed digital output modules such as the IC693MDL740 — communicates with the CPU at deterministic scan rates with minimal latency.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical Series 90-30 deployment, the IC693CHS391M acts as the central integration point for a layered automation architecture. At the field level, sensors and actuators feed signals into discrete input modules like the IC693MDL646 and analog modules such as the IC693ALG220, which are seated directly in the expansion chassis slots. These signals are processed by the IC693CPU374 — a high-performance CPU with embedded Ethernet — which executes ladder logic and function block programs at deterministic cycle times, ensuring real-time control response across the production line.

For facilities requiring protocol bridging between legacy serial devices and modern Ethernet-based supervisory systems, the IC693CMM321 Communications Control Module can be installed in the chassis to handle Modbus RTU, SNP, and SRTP communications simultaneously. This allows the IC693CHS391M-based rack to act as a protocol gateway, translating field-level data from Genius Bus devices — coordinated through the IC693NIU004 Genius Network Interface Unit — into structured data packets readable by SCADA platforms such as GE’s own Cimplicity or third-party systems like Ignition and WinCC.

When the application demands expanded I/O beyond a single rack, the IC693BEM331 Bus Expansion Module connects the primary CPU rack to the IC693CHS391M expansion chassis over the Series 90-30 I/O bus, maintaining synchronous data exchange without introducing scan-cycle delays. Power integrity across the chassis is maintained by the IC693PWR330 power supply, which provides regulated 5 VDC and 24 VDC rails to all installed modules, including specialty cards like the IC693APU305 Arithmetic Processing Unit for high-speed mathematical operations and the IC693PCM311 Programmable Coprocessor Module for custom application logic offloading.

At the drive and motion layer, variable frequency drives and servo controllers receive setpoint commands from the CPU via the communication modules housed in the IC693CHS391M chassis, enabling coordinated multi-axis motion control and energy-efficient motor management across the production floor. Remote diagnostic data — including module health status, communication error counters, and I/O fault logs — is continuously streamed to the HMI layer, where operators can monitor system performance in real time and respond to alarms before they escalate into unplanned downtime.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and hybrid industrial environments is data isolation — the inability of disparate control systems, field devices, and supervisory platforms to exchange information in a unified, real-time manner. The GE IC693CHS391M directly addresses this challenge by providing a modular, protocol-agnostic chassis platform that accommodates a wide range of communication modules, enabling engineers to bridge Genius Bus, Profibus-DP, DeviceNet, Modbus, and Ethernet networks within a single rack footprint.

For plants operating mixed-generation equipment — where older PLCs communicate over serial protocols while newer systems demand Ethernet/IP or OPC-UA connectivity — the IC693CHS391M chassis provides the physical slot capacity to host both legacy serial communication modules and modern Ethernet gateways side by side. This eliminates the need for external protocol converters and reduces wiring complexity, while centralizing network management within the PLC rack itself.

Remote monitoring and diagnostics are further enhanced through the chassis’s compatibility with GE’s SRTP (Service Request Transport Protocol), which allows engineering workstations and SCADA servers to poll real-time data, push program updates, and retrieve fault diagnostics from the Series 90-30 CPU without interrupting the control scan cycle. This capability is critical for facilities implementing predictive maintenance strategies, where continuous data collection from I/O modules, drives, and sensors feeds into analytics platforms for anomaly detection and failure prediction.

System scalability is built into the IC693CHS391M’s architecture. As production capacity grows or process requirements evolve, additional expansion chassis can be daisy-chained via Bus Expansion Modules, allowing the control system to scale from a compact single-rack configuration to a multi-rack distributed I/O network spanning an entire production facility — all without replacing the existing CPU or reprogramming the core control logic.

Every IC693CHS391M unit shipped by ZYPLC undergoes pre-shipment functional testing, verifying backplane bus integrity, slot connectivity, and power rail stability before dispatch. Availability confirmed by RFQ inventory ensures rapid order fulfillment, and all units are covered by a warranty terms confirmed during quotation, giving procurement and maintenance teams the confidence to source critical automation components without lead-time risk.

Industrial Connectivity FAQ

Q1: What communication protocols does the GE IC693CHS391M support?
The IC693CHS391M expansion chassis itself is a passive backplane structure; protocol support is determined by the communication modules installed in its slots. With modules such as the IC693CMM321, the chassis supports Modbus RTU/TCP, SNP, SRTP, and serial protocols. Adding Ethernet interface modules enables OPC-DA/UA and SRTP over TCP/IP for SCADA and HMI integration.

Q2: Can the IC693CHS391M be used in a distributed I/O configuration?
Yes. Using the IC693BEM331 Bus Expansion Module, the IC693CHS391M can be connected to a primary CPU rack as a remote expansion chassis, extending the I/O capacity of the Series 90-30 system across multiple physical locations within a facility. Communication latency between the CPU rack and expansion chassis is managed by the backplane bus protocol, ensuring deterministic data exchange.

Q3: Is the IC693CHS391M compatible with modern SCADA and HMI platforms?
Yes. When paired with an Ethernet-capable CPU such as the IC693CPU374 or a dedicated communications module, the Series 90-30 system — including the IC693CHS391M chassis — integrates with leading SCADA platforms including GE Cimplicity, iFIX, Ignition, and Siemens WinCC via standard industrial protocols such as SRTP, Modbus TCP, and OPC-DA.

Q4: What warranty and testing standards apply to IC693CHS391M units from ZYPLC?
All IC693CHS391M units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. Each unit undergoes pre-shipment functional testing including backplane bus verification, slot integrity checks, and power rail stability testing. Units are shipped via DHL or FedEx with full tracking, and our technical team provides post-sale support for installation and commissioning queries.
