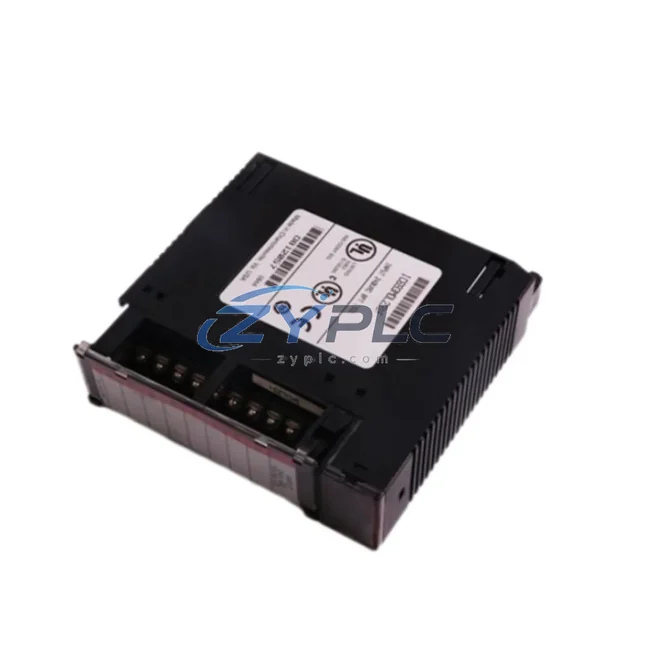

GE IC693MDL231 Discrete Input Module for Series 90-30

GE IC693MDL231 Industrial Network Interface for Series 90-30: Precision Data Link for Smart Factory Connectivity

In modern industrial environments where every millisecond of signal latency and every byte of field data matters, the GE IC693MDL231 stands as a critical node in the Series 90-30 automation architecture. Designed as a high-voltage discrete input module accepting 240VAC isolated signals across 8 input points, the IC693MDL231 serves as the front-end data acquisition layer that bridges real-world field signals — from limit switches, proximity sensors, push buttons, and motor contactors — into the structured digital data stream processed by the GE Series 90-30 PLC backplane.

Unlike generic I/O modules, the IC693MDL231 is engineered for industrial-grade signal isolation, ensuring that high-voltage AC field noise does not corrupt the logic-level data flowing into the CPU. This isolation characteristic is fundamental to maintaining network stability in environments where variable-frequency drives, large motor starters, and high-inductive loads generate significant electromagnetic interference. When deployed alongside the GE IC693CPU374 or IC693CPU364 central processing units, the IC693MDL231 delivers clean, debounced input states that feed directly into ladder logic, function block diagrams, and structured text programs without signal ambiguity.

Compatibility & Integration Notes

Connected Automation Data Flow

The IC693MDL231 operates at the signal acquisition layer of a fully connected Series 90-30 automation system. Field devices — including 240VAC inductive proximity sensors, high-voltage limit switches, and motor run/fault contacts — connect directly to the module’s isolated input terminals. The module converts these AC field signals into logic-level states that are mapped into the PLC’s discrete input table, making them immediately available to the CPU for real-time decision-making.

Within the Series 90-30 rack, the IC693MDL231 communicates over the backplane bus alongside modules such as the GE IC693MDL752 relay output module and the GE IC693ALG222 analog input module, forming a complete mixed I/O configuration. The CPU — typically an IC693CPU374 with embedded Ethernet — then transmits aggregated I/O data upstream via SRTP (Service Request Transfer Protocol) or SNP (Serial Network Protocol) to SCADA platforms such as GE Proficy iFIX or Wonderware InTouch, enabling operators to monitor discrete input states in real time from the control room.

For distributed architectures, the Series 90-30 system can be extended using the GE IC693CMM302 communications coprocessor module, which adds Genius Bus or DeviceNet connectivity, allowing the IC693MDL231’s input data to be shared across multi-drop field bus networks. In facilities running parallel drive systems, the input states captured by the IC693MDL231 — such as motor overload trips or contactor feedback — can be forwarded to GE AF-600FP variable-frequency drives via the PLC’s output logic, creating a closed-loop motor protection and control chain.

At the HMI layer, operators interact with IC693MDL231 input states through GE QuickPanel+ HMI terminals or third-party panels connected via Ethernet/IP. Alarm conditions triggered by discrete input changes — such as a high-voltage interlock opening — are surfaced immediately on the HMI screen and logged to the SCADA historian, supporting both real-time response and post-event analysis. Edge gateway devices such as the Moxa MGate MB3180 can further bridge Series 90-30 data to cloud-based MES or ERP platforms using Modbus TCP, extending the IC693MDL231’s data reach beyond the plant floor.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is data isolation — field signals that are captured locally but never integrated into the broader plant information system. The IC693MDL231 directly addresses this problem by serving as the structured entry point for high-voltage AC signals into the GE Series 90-30 control architecture, which is inherently designed for network connectivity.

In plants where older relay logic panels still handle 240VAC field signals independently of the PLC system, retrofitting with the IC693MDL231 allows those signals to be absorbed into the Series 90-30 I/O map. Once in the PLC’s data table, these signals become accessible to every connected system — from local HMI displays to remote SCADA servers — eliminating the information gap between field operations and management-level monitoring.

Protocol fragmentation is another common barrier to plant-wide transparency. The Series 90-30 platform supports multiple communication protocols through its modular CPU and communications options, meaning the IC693MDL231’s input data can be published simultaneously over Ethernet/IP, Modbus TCP, PROFIBUS, and GE’s native SRTP — all from a single rack. This multi-protocol capability allows the IC693MDL231 to serve as a data source for heterogeneous control environments where Siemens, Rockwell, and GE systems must coexist on the same network.

For remote monitoring and diagnostics, the Series 90-30 CPU’s built-in fault table records module-level errors, including wiring faults and input state anomalies detected by the IC693MDL231. These fault records are accessible remotely via the programming software GE Proficy Machine Edition, allowing maintenance engineers to diagnose field wiring issues without physical access to the panel — reducing mean time to repair and minimizing unplanned downtime. Every IC693MDL231 unit shipped by ZYPLC undergoes full functional testing prior to dispatch, with a warranty terms confirmed during quotation covering both hardware integrity and signal performance.

Industrial Connectivity FAQ

Q1: Does the IC693MDL231 support both 120VAC and 240VAC input signals?
Yes. The IC693MDL231 is designed to accept both 120VAC and 240VAC field signals through its selectable input voltage configuration. This flexibility makes it suitable for facilities operating on either North American (120VAC) or international (240VAC) power standards without requiring separate module variants.

Q2: How does the IC693MDL231 integrate with SCADA and HMI systems?
The IC693MDL231 does not communicate directly with SCADA or HMI systems — it feeds discrete input data into the Series 90-30 PLC backplane, where the CPU handles all upstream communication. The CPU transmits I/O data to SCADA platforms such as GE Proficy iFIX via SRTP over Ethernet, or to HMI terminals via SNP serial links. This architecture ensures that all field data captured by the IC693MDL231 is available for real-time visualization, alarming, and historical logging.

Q3: Can the IC693MDL231 be used in multi-rack Series 90-30 expansions?
Yes. The IC693MDL231 is fully compatible with Series 90-30 expansion racks connected via the IC693CHS391 expansion chassis and IC693CBL300 series cables. In multi-rack configurations, the module’s I/O data is transparently mapped into the main CPU’s I/O table, maintaining the same real-time update rate as modules installed in the main rack. This makes it straightforward to scale the system as production lines expand.

Q4: What testing and warranty coverage does ZYPLC provide for the IC693MDL231?
Every IC693MDL231 unit supplied by ZYPLC is subject to pre-shipment functional testing, verifying input signal detection, optical isolation integrity, and backplane communication. Units are shipped with a warranty terms confirmed during quotation covering manufacturing defects and functional failures under normal operating conditions. Availability is confirmed via RFQ for same-day dispatch via DHL or FedEx with full tracking. For volume orders or urgent requirements, contact our team at plc.sales@zyplc.com or +86 19859288691.
