GE IC693MDL645J Output Module for 90-30

GE IC693MDL645J Output Module for Series 90-30

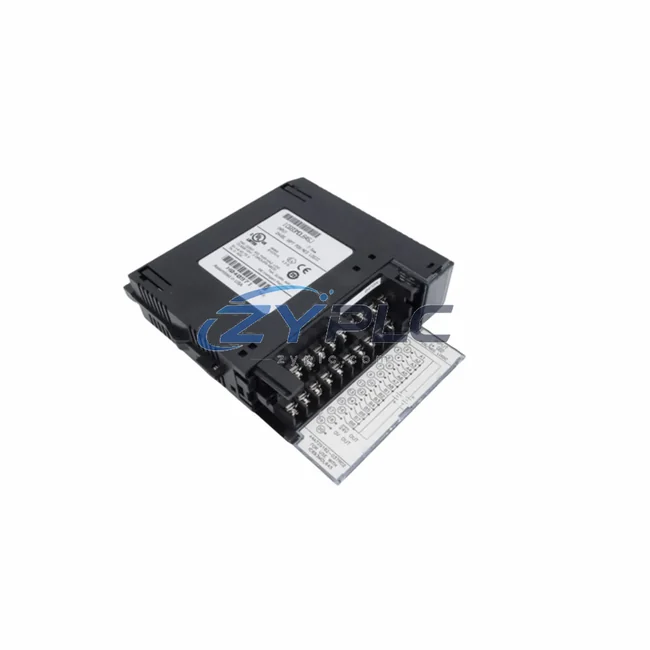

The GE Fanuc IC693MDL645J is a 16-point discrete output module engineered for seamless integration within the Series 90-30 programmable logic controller platform. Rather than functioning as a standalone component, this module is designed to operate as a coordinated element within a layered industrial control architecture — connecting the CPU decision layer to field-level actuators, drives, and switching devices with precision and reliability. In distributed manufacturing, power generation, and process control environments, the IC693MDL645J delivers the output density, electrical compatibility, and system-level consistency required for long-term operational stability.

Product Specification Table

System Compatibility Notes

The IC693MDL645J achieves its full operational value when deployed within a complete Series 90-30 control architecture. At the CPU layer, the IC693CPU374 or IC693CPU364 processes ladder logic and issues output commands that are transmitted across the IC693 rack backplane to the MDL645J module. Power integrity for the entire rack is maintained by the IC693PWR321 or IC693PWR322 power supply module, which provides regulated 5V DC backplane power and 24V DC field power to support relay coil operation within the output module.

On the input side, discrete field signals are captured by companion modules such as the IC693MDL634 (16-point 24V DC input module) or the IC693MDL655 (32-point input module), feeding real-time process data back to the CPU for closed-loop control decisions. For analog process variables — temperature, pressure, flow — the IC693ALG221 analog input module or IC693ALG390 analog output module extends the system’s signal handling capability without requiring a separate controller platform.

Network connectivity and remote I/O expansion are handled by the IC693CMM321 communications coprocessor or the IC693BEM331 bus expansion module, enabling the Series 90-30 rack to participate in Genius Bus, Profibus-DP, or Ethernet/IP network topologies. This allows the IC693MDL645J to serve as a local output node within a distributed control architecture spanning multiple racks, remote I/O drops, and supervisory SCADA systems. The IC693CHS391 5-slot rack and IC693CHS393 10-slot rack provide the physical backplane infrastructure that ties all modules together into a unified, high-density control cabinet assembly.

For human-machine interface integration, the Series 90-30 platform communicates natively with GE QuickPanel+ HMI terminals via SNP or Ethernet protocols, enabling operators to monitor output states, acknowledge alarms, and adjust setpoints without interrupting the control scan cycle. This system integration between the IC693MDL645J output layer and the HMI presentation layer is a key advantage of maintaining a single-vendor architecture across the control cabinet.

Industrial Application Notes

The IC693MDL645J is deployed across a wide range of industrial sectors where reliable discrete output switching is critical to process continuity. In automotive and discrete manufacturing environments, the module controls conveyor motor starters, pneumatic valve solenoids, and assembly line interlocks — where output response time and contact reliability directly affect throughput and safety. In power generation and electrical substation applications, the relay output configuration provides the galvanic isolation required to switch high-voltage auxiliary circuits without exposing the PLC backplane to transient energy.

In petrochemical and refinery installations, the IC693MDL645J manages pump motor control, emergency shutdown valve actuation, and flare system switching within SIL-rated control loops. The module’s wide operating temperature range and sealed relay contacts make it suitable for control rooms adjacent to process areas with elevated ambient temperatures. In water and wastewater treatment facilities, the module drives submersible pump contactors, UV disinfection system relays, and chemical dosing pump controls — applications where long duty cycles and infrequent maintenance access demand high contact endurance ratings.

For mining and mineral processing operations, the IC693MDL645J is integrated into crusher control panels, conveyor belt drive systems, and dust suppression networks — environments characterized by vibration, dust ingress, and wide supply voltage fluctuations. The module’s robust relay output design and Series 90-30 rack mounting provide the mechanical stability and electrical noise immunity required in these demanding conditions. In packaging and material handling lines, the module coordinates with servo drives, pneumatic actuators, and vision system triggers to maintain precise sequencing across high-speed production cycles.

Product Compatibility FAQ

Q1: Is the IC693MDL645J compatible with both 5-slot and 10-slot Series 90-30 racks?
Yes. The IC693MDL645J is fully compatible with all standard IC693 Series rack configurations, including the IC693CHS391 (5-slot), IC693CHS392 (5-slot with power supply slot), and IC693CHS393 (10-slot) backplanes. The module occupies a single slot and communicates via the standard IC693 rack bus without requiring any jumper configuration or address setting — slot position is automatically recognized by the CPU during the I/O configuration scan.

Q2: Can the IC693MDL645J be used in a redundant CPU architecture?
The Series 90-30 platform supports CPU redundancy configurations using paired IC693CPU374 processors with the IC693RCM300 redundancy communication module. In these architectures, the IC693MDL645J output modules remain on the standard I/O rack and receive output commands from the active CPU. During a CPU switchover event, output states are maintained through the redundancy module’s bumpless transfer logic, ensuring that field devices — motors, valves, and contactors — do not experience unintended state changes during the transition.

Q3: What does the warranty terms confirmed during quotation cover, and how is it supported by ZYPLC?
