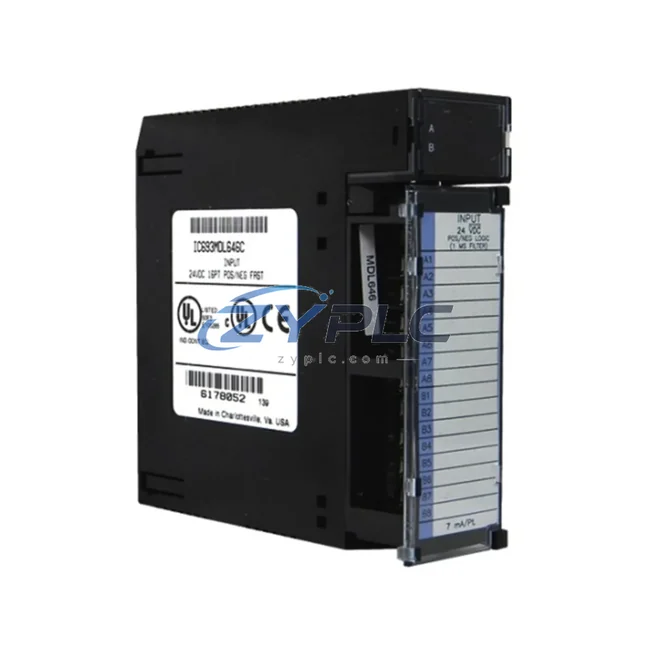

GE IC693MDL646 Discrete Input Module for Series 90-30 Systems

GE IC693MDL646: Industrial Data Link and Smart Factory Connectivity for Series 90-30 Systems

The GE IC693MDL646 is a 16-point, 24VDC discrete input module engineered for the GE Series 90-30 PLC platform — one of the most widely deployed programmable logic controller architectures in global industrial automation. Designed to serve as a critical node in the field-level data acquisition layer, the IC693MDL646 captures real-time digital signals from sensors, limit switches, proximity detectors, and push-button stations, converting raw field events into structured data that flows upward through the control network to PLC processors, SCADA systems, and HMI terminals.

In modern smart factory environments, the integrity of the data chain begins at the I/O layer. The IC693MDL646 ensures that every discrete signal — whether from a conveyor end-of-travel sensor, a machine safety interlock, or a valve position feedback — is accurately sampled and transmitted to the GE IC693CPU374 or IC693CPU364 central processing unit with minimal latency. This deterministic signal path is the foundation upon which real-time monitoring, alarm management, and closed-loop control are built.

Compatibility & Integration Notes

Connected Automation Data Flow

The IC693MDL646 sits at the entry point of the industrial data pipeline. Field devices — including inductive proximity sensors, photoelectric sensors, and mechanical limit switches — feed 24VDC discrete signals into the module’s 16 input channels. These signals are scanned by the GE IC693CPU374 processor at each PLC scan cycle, typically within 1–10ms, ensuring near-real-time responsiveness for machine control logic.

Within the Series 90-30 rack, the IC693MDL646 shares the backplane bus with communication modules such as the GE IC693CMM321 Genius Bus Controller, which extends the I/O network across distributed field panels using the Genius fieldbus protocol. For sites requiring Ethernet connectivity, the GE IC693ETM001 Ethernet Interface Module bridges the PLC data to plant-level SCADA servers running platforms such as iFIX, Wonderware, or Ignition, enabling operators to visualize discrete input states on HMI dashboards in real time.

In multi-rack configurations, the IC693MDL646 can be deployed in expansion racks connected via the GE IC693BEM331 Bus Expansion Module, extending the I/O footprint across large machine cells or production lines without adding CPU overhead. Remote I/O drops using GE IC693CHS398 expansion chassis allow the discrete input data to be aggregated from physically separated field zones and transmitted back to the main rack over the Series 90-30 I/O bus.

At the drive and motion layer, discrete feedback signals from ABB ACS880 or Siemens SINAMICS G120 variable frequency drives — such as run/fault status outputs — are wired directly into the IC693MDL646 input channels, giving the PLC processor immediate visibility into drive operational states. This integration is essential for coordinated multi-axis conveyor systems and pump control applications where drive fault detection must trigger immediate PLC response.

For edge computing and IIoT connectivity, the IC693MDL646’s data — once processed by the Series 90-30 CPU — can be forwarded via an Advantech ADAM-6717 Edge Intelligence Gateway or similar OPC-UA-capable edge device to cloud-based MES or ERP platforms, completing the data journey from field sensor to enterprise dashboard. This architecture supports predictive maintenance analytics, OEE calculation, and production KPI reporting without modifying the existing PLC program.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is data isolation — field devices generating valuable operational signals that never reach the control room or enterprise systems. The GE IC693MDL646 directly addresses this problem by providing a reliable, high-density discrete input interface that integrates seamlessly into the Series 90-30 communication architecture.

Sites running mixed-protocol environments — where older Genius bus segments coexist with modern Ethernet/IP or PROFIBUS networks — can use the IC693MDL646 in conjunction with protocol gateway modules to bridge the communication gap. The GE IC693CMM311 CCM Module enables serial communication with legacy devices, while the IC693ETM001 Ethernet module provides the upstream SRTP/SNMP path to SCADA. This layered approach eliminates data silos without requiring a full system replacement.

For remote monitoring applications, the IC693MDL646’s input states are accessible via the PLC’s Ethernet port to remote HMI panels and SCADA clients, enabling operators to monitor machine status, alarm conditions, and interlock states from control rooms located hundreds of meters from the field equipment. This capability is critical for unmanned substations, remote pump stations, and distributed manufacturing cells where on-site operator presence is limited.

Production line transparency is achieved by mapping IC693MDL646 input channels to SCADA historian tags, creating a continuous time-stamped record of discrete events — machine starts, stops, faults, and cycle completions — that supports root cause analysis, shift reporting, and compliance documentation. System expansion is straightforward: additional IC693MDL646 modules can be added to existing Series 90-30 racks or expansion chassis without modifying the CPU configuration, making capacity scaling a low-risk, non-disruptive operation.

Industrial Connectivity FAQ

Q1: What communication protocols does the GE IC693MDL646 support for SCADA integration?
The IC693MDL646 communicates via the Series 90-30 backplane bus to the CPU, which then supports SRTP (Service Request Transport Protocol), SNP (Serial Natual Protocol), and Ethernet TCP/IP through modules like the IC693ETM001. SCADA platforms including GE iFIX, Wonderware InTouch, and Ignition can connect natively using GE SRTP OPC drivers, ensuring low-latency data access with typical poll cycle times under 100ms.

Q2: Is the IC693MDL646 compatible with third-party PLCs or only GE Series 90-30 systems?
The IC693MDL646 is designed exclusively for GE Series 90-30 rack systems (IC693CHS391, IC693CHS397, IC693CHS398). It is not directly compatible with other PLC platforms. However, field signals wired to the IC693MDL646 can be re-routed to third-party systems via protocol gateways if a migration or hybrid architecture is required.

Q3: How does the IC693MDL646 ensure network stability and signal integrity in electrically noisy industrial environments?
The module features optical isolation on all 16 input channels, providing galvanic separation between field wiring and the backplane bus. This isolation protects the PLC backplane from voltage transients, ground loops, and EMI common in motor-driven environments. The 24VDC input threshold provides noise immunity against low-level signal interference typical in variable frequency drive installations.

Q4: What warranty and pre-shipment testing does the IC693MDL646 include?
Every IC693MDL646 unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation and undergoes pre-shipment functional testing to verify all 16 input channels, backplane communication, and LED status indicators. Units are shipped with anti-static packaging and include a test report upon request. Availability is confirmed via RFQ for same-day or next-business-day dispatch to global destinations.
