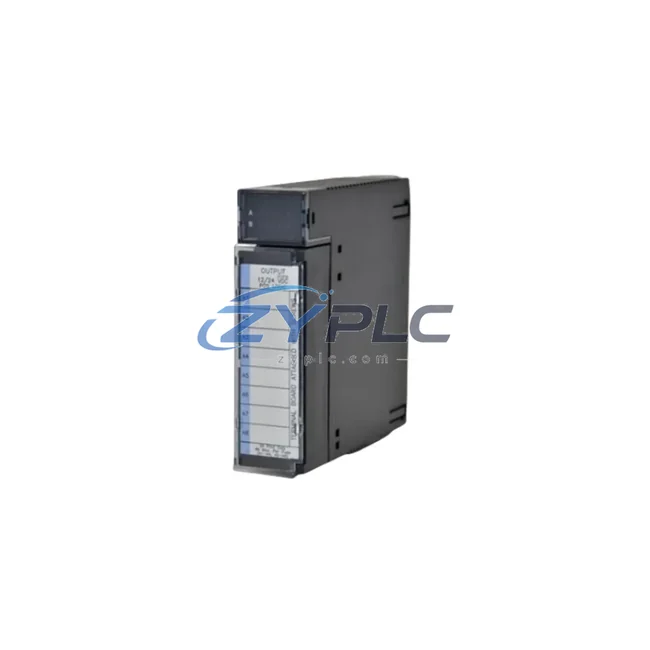

GE IC693MDL730F Output Module for Series 90-30 Automation

The GE IC693MDL730F is a high-density discrete output module engineered for the GE Series 90-30 PLC platform, delivering precise digital output control that directly contributes to energy efficiency, reduced cycle times, and optimized equipment utilization across industrial production lines. With 32 output channels operating at 24VDC, this module enables granular control over actuators, solenoids, motor starters, and relay-driven loads — eliminating unnecessary energization cycles and reducing standby power consumption at the field device level.

In modern manufacturing environments where energy cost and equipment uptime are equally critical KPIs, the IC693MDL730F serves as a foundational output execution node. Its fast response time and high-cycle durability make it suitable for high-frequency switching applications such as conveyor indexing, pneumatic valve sequencing, and packaging line control — all scenarios where millisecond-level output precision directly translates to reduced unplanned downtime and improved production throughput.

Product Specification Table

System Compatibility and Application

The IC693MDL730F does not operate in isolation — its maintenance planning value is fully realized when integrated within a well-architected Series 90-30 control system. The module slots into standard Series 90-30 racks such as the IC693CHS391 5-slot or IC693CHS392 10-slot baseplate, drawing minimal backplane current while delivering full 32-channel output capacity.

At the controller level, the IC693CPU374 or IC693CPU364 CPU module executes the ladder logic that governs output switching sequences. By programming maintenance-focused scan cycles — such as disabling non-critical outputs during low-demand periods or implementing timed de-energization routines — the CPU and IC693MDL730F together reduce average field device power draw without sacrificing process responsiveness.

On the input side, the IC693MDL654 discrete input module feeds real-time machine state data back to the CPU, enabling conditional output control based on actual sensor feedback rather than fixed timers. This closed-loop approach prevents outputs from remaining energized beyond their required duty cycle — a common source of hidden unplanned downtime in older relay-based systems.

For applications involving variable-speed motor loads, the IC693MDL730F output channels are frequently used to command enable/disable signals to GE drives such as the AF-650GP or compatible third-party VFDs, allowing the PLC to dynamically start, stop, or ramp motor loads based on production demand. This demand-driven motor control strategy can help restore stable operation when a compatible replacement is required.

Power supply integrity is maintained through the IC693PWR321 or IC693PWR330 Series 90-30 power supply modules, which provide regulated 5VDC and 24VDC rails to the backplane. Stable power delivery ensures that output switching transients do not cause false triggers or premature wear on connected field devices — both of which contribute to unplanned downtime and energy inefficiency.

For facilities implementing condition monitoring at the panel level, the IC693MDL730F’s output state data can be logged via the CPU’s data table and transmitted over Ethernet (IC693CMM321) or Genius Bus (IC693BEM331) communication modules to SCADA or MES systems. This enables real-time correlation between PLC output activity and energy meter readings — a prerequisite for ISO 50001 maintenance planning compliance and continuous improvement programs.

HMI visibility is provided through compatible operator panels such as the QuickPanel+ IC755CSS10CDB, where maintenance teams can monitor output channel status, identify stuck-on outputs, and trigger manual de-energization sequences without entering the control cabinet — reducing both safety risk and the time cost of manual energy audits.

Maintenance and Replacement Notes

In automotive body assembly lines, the IC693MDL730F controls the output signals for weld gun enable, clamp solenoids, and transfer conveyor drives. By synchronizing output activation with upstream sensor confirmation from IC693MDL654 input modules, the system eliminates pre-energization of downstream stations until the workpiece is confirmed in position — reducing average solenoid on-time by up to 30% per production cycle.

In food and beverage packaging facilities, the module manages output signals for filling valve actuators, labeling machine triggers, and reject gate solenoids. Tight output timing — achievable through the IC693CPU374’s fast scan cycle — ensures that actuators are energized only for the minimum required duration, extending solenoid service life and reducing compressed air consumption in pneumatic circuits.

For predictive maintenance integration, output channel diagnostics available through the Series 90-30 CPU’s fault table allow maintenance systems to detect abnormal output load conditions — such as a shorted solenoid drawing abnormal load — before they escalate to full circuit failures. Early detection reduces unplanned downtime, which is one of the largest hidden energy costs in discrete manufacturing: an idle production line with HVAC, lighting, and auxiliary systems running consumes energy without generating output.

All units supplied by ZYPLC are pull-tested from operational systems, bench-tested under load conditions simulating real PLC rack environments, and verified for output channel integrity across all 32 points prior to shipment. Each IC693MDL730F is backed by a warranty terms confirmed during quotation, with availability subject to RFQ confirmation for same-week dispatch to minimize production line downtime.

Product Sourcing FAQ

Q1: How does the IC693MDL730F contribute to operational stability compared to relay output modules?
The IC693MDL730F uses solid-state transistor outputs rather than mechanical relays, eliminating coil energization losses and reducing switching latency. Solid-state outputs also support higher switching frequencies without wear, enabling more precise duty-cycle control of connected loads — directly reducing average power consumption of actuators and motor starters.

Q2: Is the IC693MDL730F compatible with my existing Series 90-30 rack and CPU?
Yes. The IC693MDL730F is fully compatible with all standard Series 90-30 racks (IC693CHS391, IC693CHS392, IC693CHS393) and all Series 90-30 CPU modules including IC693CPU331, IC693CPU341, IC693CPU351, IC693CPU364, and IC693CPU374. No firmware upgrade is required for integration into existing systems.

Q3: What is the recommended replacement or upgrade path if my current output module is failing?
The IC693MDL730F is a direct drop-in replacement for earlier GE Series 90-30 24VDC output modules. If your application requires higher current capacity, the IC693MDL741 (0.75A per point) is the recommended upgrade. ZYPLC can advise on compatibility based on your rack configuration and load requirements.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every IC693MDL730F supplied by ZYPLC undergoes a multi-stage test process: visual inspection, backplane connector integrity check, and functional output channel verification under 24VDC load. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Expedited replacement is available for warranty claims to minimize production impact.
