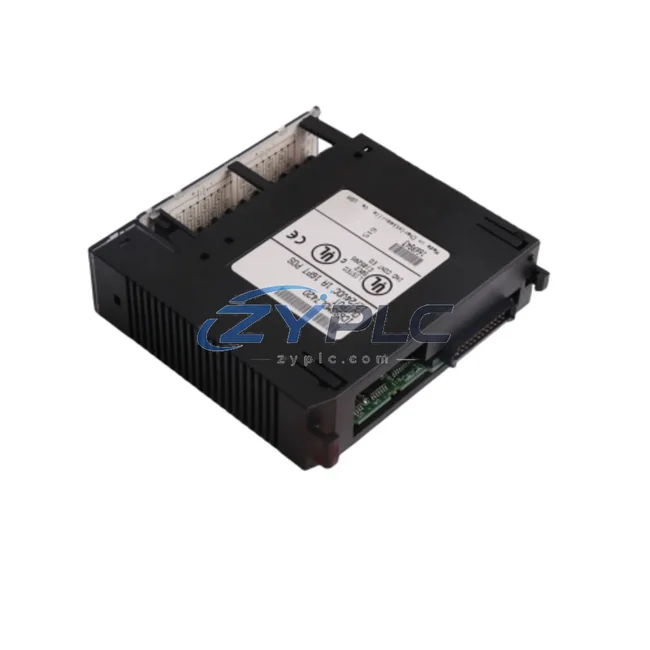

GE IC693MDL742 Discrete Output Module 90-30

GE IC693MDL742 Discrete Output Module for Series 90-30 Automation

The GE Fanuc IC693MDL742 is a high-density discrete output module engineered for the GE Series 90-30 PLC platform, delivering precise, low-latency switching control across demanding industrial environments. Designed to minimize unnecessary power draw at the output stage, the IC693MDL742 enables plant engineers to tighten control over actuator activation cycles, reduce idle-state operating load, and improve overall equipment effectiveness (OEE) across automated production lines. Whether deployed in automotive assembly, food processing, material handling, or discrete manufacturing, this module serves as a critical node in an industrial control architecture.

At ZYPLC, every IC693MDL742 unit is sourced from verified supply channels, subjected to full functional output testing prior to shipment, and backed by a warranty terms confirmed during quotation. Stock is maintained on-hand for shipment arranged after confirmation, supporting urgent MRO requirements and minimizing unplanned downtime costs.

Product Specification Table

System Compatibility and Application

The IC693MDL742 does not operate in isolation — its energy efficiency contribution is amplified when integrated within a well-structured GE Series 90-30 automation system. In a typical energy-optimized architecture, the module interfaces directly with the IC693CPU374 or IC693CPU364 central processing unit, which executes ladder logic programs that govern output switching based on real-time process feedback. By programming output coils to activate only when process conditions are met — rather than maintaining continuous energization — engineers can significantly reduce the cumulative load on field devices.

On the input side, the IC693MDL752 discrete input module captures field signals from proximity sensors, limit switches, and photoelectric detectors, feeding the CPU with accurate process state data. This closed-loop signal flow ensures that the IC693MDL742’s outputs are triggered with precision, eliminating redundant switching cycles that waste energy and accelerate actuator wear.

For analog process variables such as temperature, pressure, or flow rate, the IC693ALG222 analog input module provides high-resolution data that the CPU uses to modulate output behavior dynamically. When paired with a GE Fanuc VersaMax variable frequency drive (VFD) on motor-driven loads, the output module’s switching signals can coordinate motor start/stop sequences with process demand, enabling significant reductions in motor load during low-load periods.

Communication across the plant floor is handled via the IC693CMM321 communications module, which supports Ethernet and serial protocols for integration with SCADA systems and maintenance planning platforms. Real-time output state data from the IC693MDL742 can be logged and analyzed to identify inefficient switching patterns, excessive dwell times, or underutilized output channels — all actionable insights for energy audits.

The IC693CHS391 10-slot backplane provides the physical and electrical backbone for the system, ensuring stable power distribution to all installed modules including the IC693MDL742. Proper backplane loading and slot assignment directly influence the thermal profile of the rack, and a well-managed thermal environment reduces cooling energy requirements in the control cabinet.

For human-machine interface needs, the system can be paired with a GE QuickPanel+ HMI, allowing operators to monitor output channel status, acknowledge alarms, and adjust setpoints without requiring engineering workstation access. Operator visibility into output states reduces the likelihood of manual overrides that bypass operational-efficiency logic.

Power supply integrity is maintained by the IC693PWR321 power supply module, which delivers regulated 5 VDC and 24 VDC rails to the backplane. A stable, efficient power supply is foundational to consistent output module performance and prevents voltage sag conditions that can cause spurious output activations — a hidden source of unplanned downtime and equipment stress.

Maintenance and Replacement Notes

In real-world production environments, the GE IC693MDL742 contributes to maintenance planning through several interconnected mechanisms. First, its high output point density — 32 channels per module — reduces the number of modules required in a given application, lowering the total backplane power budget and simplifying cabinet wiring. Fewer modules mean fewer power supply loads, reduced heat generation, and lower cooling demands.

Second, the module’s fast response time enables tight integration with high-speed production line sequences. In packaging lines, for example, output channels controlling pneumatic solenoids can be programmed with precise on-time windows that match the mechanical cycle of the packaging machine. This eliminates the common practice of leaving solenoids energized between cycles — a practice that wastes compressed air energy and accelerates solenoid coil degradation.

Third, when the Series 90-30 CPU executes maintenance-focused ladder logic — such as output interlock conditions that prevent simultaneous activation of high-draw loads — the IC693MDL742 becomes an active participant in demand management. By staggering motor starts, conveyor activations, and heating element cycles, the control program can flatten the facility’s power demand curve, reducing peak demand charges on the utility bill.

Predictive maintenance integration is another dimension of maintenance planning. By monitoring output channel cycle counts and comparing them against actuator service life data available through the SCADA system, maintenance teams can schedule replacements before failures occur. Unplanned downtime caused by failed output channels or actuators is one of the most energy-inefficient events in a production facility — idle lines still consume HVAC, lighting, and auxiliary power while producing nothing.

ZYPLC maintains ready stock of the IC693MDL742 to support rapid replacement scenarios. All units undergo output load testing, insulation resistance checks, and functional verification against GE Fanuc specifications before shipment. The warranty terms confirmed during quotation covers manufacturing defects and functional failures, providing procurement teams with the confidence to standardize on this module across multiple production lines.

Product Sourcing FAQ

Q1: How does the IC693MDL742 contribute to reducing operating load on the production line?
The IC693MDL742 enables demand-based output switching through programmable ladder logic in the Series 90-30 CPU. By activating outputs only when process conditions require it — and deactivating them immediately when conditions are no longer met — the module eliminates idle-state energy draw from connected actuators, solenoids, and relays. Combined with VFD-controlled motor loads and analog feedback from process sensors, the system can achieve measurable reductions in per-unit operating load.

Q2: Is the IC693MDL742 compatible with my existing Series 90-30 backplane and CPU?
Yes. The IC693MDL742 is designed for the GE Fanuc Series 90-30 platform and is compatible with standard backplanes including the IC693CHS391 (10-slot) and IC693CHS397 (5-slot), as well as CPUs such as the IC693CPU374, IC693CPU364, and IC693CPU350. No firmware modifications are required for standard I/O mapping. Always verify slot addressing in your ladder program after module replacement.

Q3: What is the recommended replacement procedure to minimize production downtime?
ZYPLC recommends maintaining at least one spare IC693MDL742 in your MRO inventory for critical lines. When replacing a module, power down the rack segment, document the existing wiring terminations, swap the module, and verify output channel mapping in the programming software (Proficy Machine Edition or equivalent) before re-energizing. All ZYPLC units are pre-tested, so functional verification after installation is typically completed within one production cycle.

Q4: What does the warranty terms confirmed during quotation cover, and what is the return process?
The warranty terms confirmed during quotation covers functional failures and manufacturing defects under normal operating conditions. It does not cover damage resulting from incorrect wiring, overvoltage conditions, or physical mishandling. To initiate a warranty claim, contact ZYPLC with the order reference and a description of the fault. Replacement units are dispatched from stock upon confirmation, minimizing the warranty resolution window and keeping your line running.
