GE IC693MDL752 Discrete Output Module for Series 90-30

GE IC693MDL752 Discrete Output Module for Series 90-30

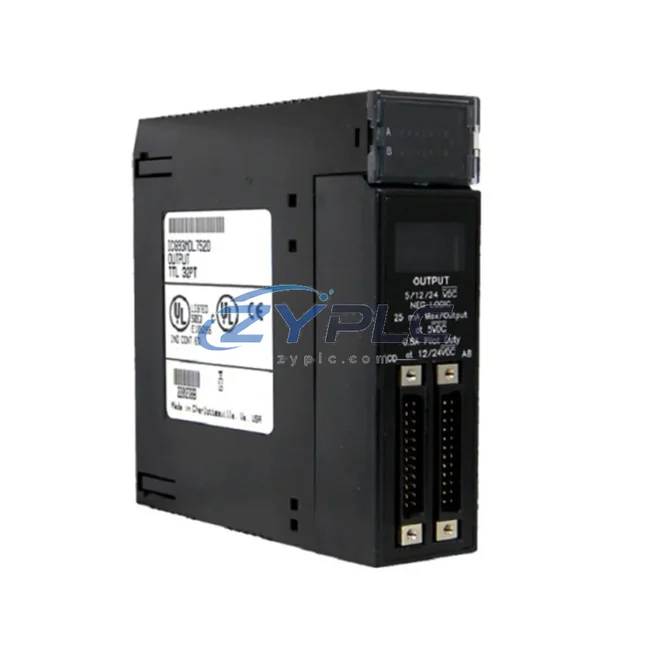

The GE IC693MDL752 is a 32-point 12/24 VDC discrete output module engineered for seamless integration within the GE Series 90-30 programmable logic controller architecture. Rather than functioning as a standalone component, the IC693MDL752 is designed to operate as a coordinated element within a layered automation system — contributing to signal integrity, output density, and rack-level consistency across the control hierarchy. In distributed manufacturing environments, power generation facilities, petrochemical processing plants, and water treatment infrastructure, the IC693MDL752 delivers reliable digital output performance that supports both high-cycle and continuous-duty applications.

Within the Series 90-30 rack system, the IC693MDL752 occupies a standard I/O slot and communicates directly with the CPU module — such as the IC693CPU374 or IC693CPU364 — through the backplane bus. This tight integration eliminates the latency and signal degradation associated with remote I/O architectures, making the module particularly well-suited for time-critical output sequences in packaging lines, conveyor control systems, and valve actuation networks. The module’s 32-point output capacity allows engineers to consolidate field wiring, reduce cabinet footprint, and simplify loop documentation without sacrificing control granularity.

System architects specifying the IC693MDL752 benefit from its compatibility with the broader Series 90-30 ecosystem. The module operates alongside power supply units such as the IC693PWR321 or IC693PWR331, which provide regulated 5 VDC backplane power and 24 VDC field power to support the full I/O complement. When paired with the IC693MDL654 or IC693MDL655 discrete input modules, the IC693MDL752 forms a complete digital I/O layer capable of handling both sensor feedback and actuator command within a single rack assembly. This co-location of input and output capacity reduces inter-rack communication overhead and simplifies fault isolation during commissioning and maintenance cycles.

For applications requiring expanded I/O beyond a single rack, the IC693MDL752 integrates naturally with the IC693CHS391 or IC693CHS397 expansion chassis, connected via the IC693CBL300 or IC693CBL302 expansion cables. This modular expansion capability allows control engineers to scale the system incrementally — adding output capacity as process requirements grow — without redesigning the control architecture or replacing the CPU platform. The result is a future-proof I/O strategy that protects capital investment across the full lifecycle of the automation system.

Communication stability is a foundational requirement in industrial control environments, and the IC693MDL752 supports this through its deterministic backplane interface with the Series 90-30 CPU. When the system incorporates a communications coprocessor such as the IC693CMM321 for Ethernet connectivity or the IC693PCM300 for peer-to-peer communication, the IC693MDL752 participates in a fully networked control architecture capable of SCADA integration, remote diagnostics, and real-time data exchange with HMI platforms such as the QuickPanel or third-party operator interface terminals. This network-aware architecture enables plant-wide visibility of output states, alarm conditions, and module health — reducing mean time to repair and supporting predictive maintenance strategies.

In redundant control architectures, the IC693MDL752 can be deployed in parallel rack configurations where a secondary CPU — such as a hot-standby IC693CPU374 — monitors system state and assumes control in the event of a primary CPU fault. While the IC693MDL752 itself does not incorporate internal redundancy logic, its role within a redundant rack design is well-established in power distribution, oil and gas, and critical infrastructure applications where unplanned downtime carries significant operational and safety consequences. Proper engineering of the output wiring, including the use of fused terminal blocks and surge suppression on inductive loads, further enhances system resilience at the field level.

From an engineering and maintenance perspective, the IC693MDL752 supports efficient troubleshooting through its per-point LED status indicators, which provide real-time visual confirmation of output state without requiring a programming terminal. This feature accelerates fault diagnosis during commissioning and reduces the skill threshold required for field maintenance personnel. Combined with GE’s Proficy Machine Edition programming environment, the module supports ladder logic, function block diagram, and structured text programming paradigms — giving control engineers the flexibility to implement complex output sequencing, interlocking, and safety shutdown logic within a unified development environment.

Long-term supply continuity is a critical consideration for facilities operating Series 90-30 systems in legacy or extended-lifecycle applications. ZYPLC maintains availability subject to RFQ confirmation of the IC693MDL752 with full functional testing, ensuring that replacement modules meet original factory specifications. Every unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation, providing procurement teams and maintenance managers with confidence in module reliability and post-sale support. This warranty coverage, combined with ZYPLC’s global logistics capability, supports just-in-time inventory strategies and minimizes the risk of extended downtime due to component unavailability.

Product Specification Table

System Compatibility Notes

The IC693MDL752 achieves its full performance potential when deployed as part of a coordinated Series 90-30 control system. At the CPU layer, the IC693CPU374 provides the processing backbone, executing ladder logic scan cycles and managing I/O table updates that directly govern the output states of the IC693MDL752. The IC693PWR321 power supply ensures stable backplane voltage, protecting both the CPU and I/O modules from power quality events that could cause spurious output transitions or module faults.

At the I/O layer, the IC693MDL752 works in conjunction with discrete input modules such as the IC693MDL654 (32-point 24 VDC input) to create a balanced digital I/O architecture. Analog I/O requirements within the same rack are addressed by modules such as the IC693ALG221 analog input module or the IC693ALG390 analog output module, enabling mixed-signal control within a single chassis. For applications requiring relay-isolated outputs — such as motor starter control or high-voltage switching — the IC693MDL940 relay output module complements the IC693MDL752 by handling loads that exceed the solid-state output’s current or voltage ratings.

Network connectivity is provided through the IC693CMM321 Ethernet communications module, which enables the Series 90-30 system to participate in plant-wide SCADA networks, MES data collection systems, and remote HMI access. At the human-machine interface layer, operator terminals connected via Ethernet or serial links provide real-time visualization of output states, alarm management, and production reporting — closing the loop between the IC693MDL752’s field-level output activity and plant management systems.

Industrial Application Notes

In discrete manufacturing environments — including automotive assembly, electronics production, and consumer goods packaging — the IC693MDL752 provides the output density required to control pneumatic actuators, solenoid valves, conveyor drives, and indicator lamps from a single module. Its 32-point capacity supports complex sequencing logic without requiring multiple lower-density output modules, reducing rack slot consumption and simplifying wiring harness design.

In power generation and electrical substation applications, the IC693MDL752 is used to control switching equipment, annunciator panels, and protection relay trip circuits. Its optical isolation ensures that high-voltage transients on the field side do not propagate to the logic side, protecting the CPU and backplane from damage. In water and wastewater treatment facilities, the module controls pump motor starters, valve actuators, and chemical dosing systems — applications where reliable output state management is essential for regulatory compliance and process safety.

In petrochemical and oil and gas processing environments, the IC693MDL752 operates within safety-instrumented system architectures where output reliability is a design requirement. While the module itself is not SIL-rated, it is commonly deployed in basic process control system (BPCS) layers that operate in parallel with dedicated safety systems, providing normal operating control while the safety layer monitors for abnormal conditions. In mining and metallurgical applications, the module’s wide operating temperature range and robust construction support reliable operation in environments characterized by vibration, dust, and temperature cycling.

Product Compatibility FAQ

Q1: Is the IC693MDL752 compatible with all Series 90-30 CPU modules, and are there any firmware version dependencies?
The IC693MDL752 is compatible with the full range of Series 90-30 CPU modules, including the IC693CPU352, IC693CPU364, and IC693CPU374. The module communicates via the standard Series 90-30 backplane bus and does not require specific CPU firmware versions for basic I/O operation. However, for advanced diagnostics and module health reporting within Proficy Machine Edition, it is recommended to use CPU firmware version 9.0 or later to ensure full feature compatibility.

Q2: Can the IC693MDL752 be used in an expansion rack, and what cables are required for multi-rack configurations?
Yes, the IC693MDL752 can be installed in Series 90-30 expansion racks, including the IC693CHS391 (5-slot) and IC693CHS397 (10-slot) chassis. Expansion racks connect to the main rack via the IC693CBL300 (0.6 m) or IC693CBL302 (2.0 m) expansion cables. Up to seven expansion racks can be connected to a single main rack, providing a maximum of 80 I/O slots per CPU. Each expansion rack requires its own power supply, such as the IC693PWR321, to maintain stable backplane voltage across the expanded system.

Q3: What does the warranty terms confirmed during quotation cover, and what is the process for warranty claims on the IC693MDL752?
ZYPLC’s warranty terms confirmed during quotation covers functional defects in the IC693MDL752 module under normal operating conditions. If a module fails within the warranty period due to a manufacturing defect or component failure, ZYPLC will provide a replacement unit at no additional cost. Warranty claims are initiated by contacting ZYPLC’s technical support team at plc.sales@zyplc.com or +86 19859288691. Customers are required to provide the module serial number, a description of the fault condition, and proof of purchase. ZYPLC’s engineering team will assess the claim and coordinate replacement logistics to minimize system downtime.
