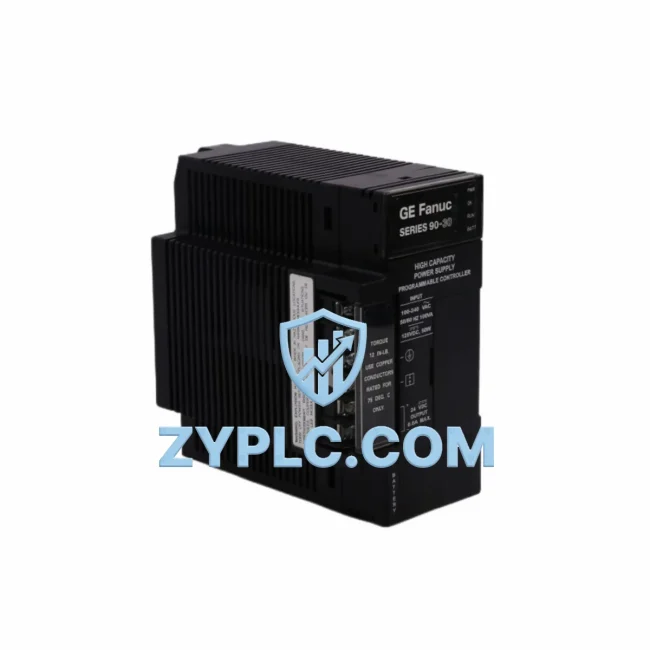

GE IC693PWR330 Industrial Network Interface for Series 90-30 Systems

GE IC693PWR330: Industrial Data Link and Smart Factory Power Backbone for Series 90-30 Systems

The GE IC693PWR330 is a high-reliability DC power supply module engineered for the GE Fanuc Series 90-30 programmable logic controller platform. In modern smart factory environments, stable and conditioned power delivery is not merely a utility function — it is the foundational layer upon which every data link, protocol exchange, and real-time control loop depends. The IC693PWR330 provides the regulated 5 VDC and 24 VDC bus power required to sustain continuous, uninterrupted operation of the Series 90-30 rack, ensuring that every connected module — from CPU processors to communication interfaces — maintains signal integrity across the entire automation data chain.

As industrial sites evolve toward IIoT-driven architectures, the power supply module plays a critical role in sustaining the uptime of communication-intensive systems. The IC693PWR330 supports the operational continuity of GE IC693CPU374 and IC693CPU364 central processing units, which handle Ethernet TCP/IP and serial Modbus RTU/ASCII protocol stacks. When these CPUs are tasked with polling field devices, aggregating sensor data, and forwarding process variables to SCADA platforms such as GE iFIX or Wonderware InTouch, the power supply module must deliver clean, stable bus voltage without ripple or transient interference that could corrupt communication frames or trigger watchdog resets.

Network Communication Table

Connected Automation Data Flow

In a typical Series 90-30 automation architecture, the IC693PWR330 anchors the power distribution layer that enables a complete industrial data flow chain. At the field level, discrete and analog sensors — including 4–20 mA transmitters, RTDs, and proximity switches — connect to GE IC693MDL655 discrete input modules and IC693ALG222 analog input modules mounted in the same rack. These modules continuously sample process variables and pass digitized values across the backplane to the CPU, all of which depends on the stable 5 VDC rail supplied by the IC693PWR330.

The CPU, such as the IC693CPU374 with its embedded Ethernet port, then executes ladder logic and function block programs before transmitting real-time data upstream via Modbus TCP/IP or GE’s proprietary SRTP protocol to SCADA servers. In parallel, a GE IC693CMM321 communications coprocessor module — also powered through the same backplane — may handle high-speed serial Modbus RTU polling of legacy field instruments, converting their RS-485 signals into structured data blocks that the CPU can forward to the historian or DCS layer.

For sites integrating remote I/O, the GE IC693BEM331 Genius Bus Controller module extends the data reach of the Series 90-30 rack to distributed Genius I/O blocks located hundreds of meters away on the plant floor. Each Genius block — such as the IC693GBI001 — reports back digital and analog field states over the Genius Bus, with the IC693PWR330 ensuring the master rack remains energized and responsive throughout. Where Profibus DP or DeviceNet connectivity is required for variable frequency drives, servo amplifiers, or smart valve positioners, a dedicated gateway module such as the IC693PBS201 Profibus Slave module can be installed in the rack, again relying on the power supply module for its operational voltage.

At the HMI layer, operator panels running GE Proficy HMI/SCADA — iFIX or CIMPLICITY — connect to the Series 90-30 CPU via Ethernet TCP/IP, pulling live tag data for display on process mimics, trend charts, and alarm summary screens. The uninterrupted power delivery of the IC693PWR330 is what prevents mid-shift CPU resets that would cause HMI tag loss and operator blind spots. For edge computing deployments, an industrial edge gateway running GE Predix or a third-party IIoT platform may subscribe to OPC-UA data published by the Series 90-30 CPU, enabling cloud-based analytics, predictive maintenance dashboards, and remote KPI monitoring — all contingent on the power supply module maintaining rack stability 24/7.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is data isolation — the condition where field devices, PLCs, and enterprise systems operate in disconnected silos, unable to share process information in real time. The GE Series 90-30 platform, when properly powered by the IC693PWR330, is designed to bridge these silos through its multi-protocol communication architecture.

Sites running mixed protocol environments — where older Modbus RTU devices coexist with newer Ethernet/IP instruments — can leverage the Series 90-30’s communication module slots to deploy protocol converters and gateways within the same rack. This eliminates the need for standalone protocol translation hardware and reduces wiring complexity. The IC693PWR330 provides the power headroom necessary to support a fully populated rack with CPU, multiple I/O modules, and one or more communication modules operating simultaneously without voltage sag.

For remote monitoring and diagnostics, the Series 90-30 platform supports SRTP-based remote programming and data access, allowing maintenance engineers to connect from a central control room or even a remote site via VPN to interrogate PLC registers, review fault logs, and modify program parameters — without requiring a physical site visit. This capability is only reliable when the power supply module maintains consistent bus voltage, preventing spurious CPU faults that would interrupt the remote session.

Production line transparency — the ability to see real-time OEE metrics, cycle counts, reject rates, and energy consumption at the machine level — is achievable through the Series 90-30’s data publishing capabilities. By mapping internal PLC registers to SCADA tags and historian records, plant managers gain the visibility needed to identify bottlenecks, schedule predictive maintenance, and optimize throughput. The IC693PWR330 is the silent enabler of this transparency, keeping the data-generating PLC rack online and communicating continuously.

System expansion is equally straightforward: the Series 90-30 supports up to 10 expansion racks connected via the IC693CHS397 expansion chassis and IC693BEM320 bus expansion modules, each requiring its own power supply module. As production capacity grows and new process areas are brought online, additional IC693PWR330 units can be deployed in expansion racks without architectural redesign, preserving the investment in the existing control platform.

Industrial Connectivity FAQ

Q1: Does the IC693PWR330 affect communication latency in the Series 90-30 system?
A: The IC693PWR330 itself does not introduce communication latency — it provides the stable bus power that allows the CPU and communication modules to operate at their rated scan and polling speeds. Voltage instability from an undersized or failing power supply is a common but overlooked cause of increased scan cycle times and intermittent communication timeouts in Modbus and Ethernet/IP networks. Using a correctly rated IC693PWR330 ensures the CPU executes its communication tasks within the designed cycle time.

Q2: Is the IC693PWR330 compatible with all Series 90-30 communication and gateway modules?
A: Yes. The IC693PWR330 is designed to power the full range of Series 90-30 rack-mounted modules, including Ethernet TCP/IP modules, Genius Bus Controllers, Profibus gateway modules, DeviceNet scanners, and serial communication coprocessors. It is compatible with both 5-slot and 10-slot Series 90-30 base units and expansion racks.

Q3: How is network stability ensured during power fluctuations at the plant?
A: The IC693PWR330 incorporates internal regulation and filtering to maintain stable 5 VDC and 24 VDC outputs within specification even when the incoming AC supply experiences minor fluctuations. For sites with severe power quality issues, it is recommended to install an upstream UPS or line conditioner to protect the power supply module and the entire PLC rack from brownouts and transient spikes that could cause CPU resets and communication link drops.

Q4: What does the 12-month warranty cover, and how is the unit tested before shipment?
A: Every IC693PWR330 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify output voltage regulation, load response, and thermal performance. The 12-month warranty covers defects in materials and workmanship under normal operating conditions. Units are shipped in anti-static protective packaging via DHL or FedEx Express with full tracking. For RFQ, lead time confirmation, or technical support, contact ZYPLC directly.
